text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2015:

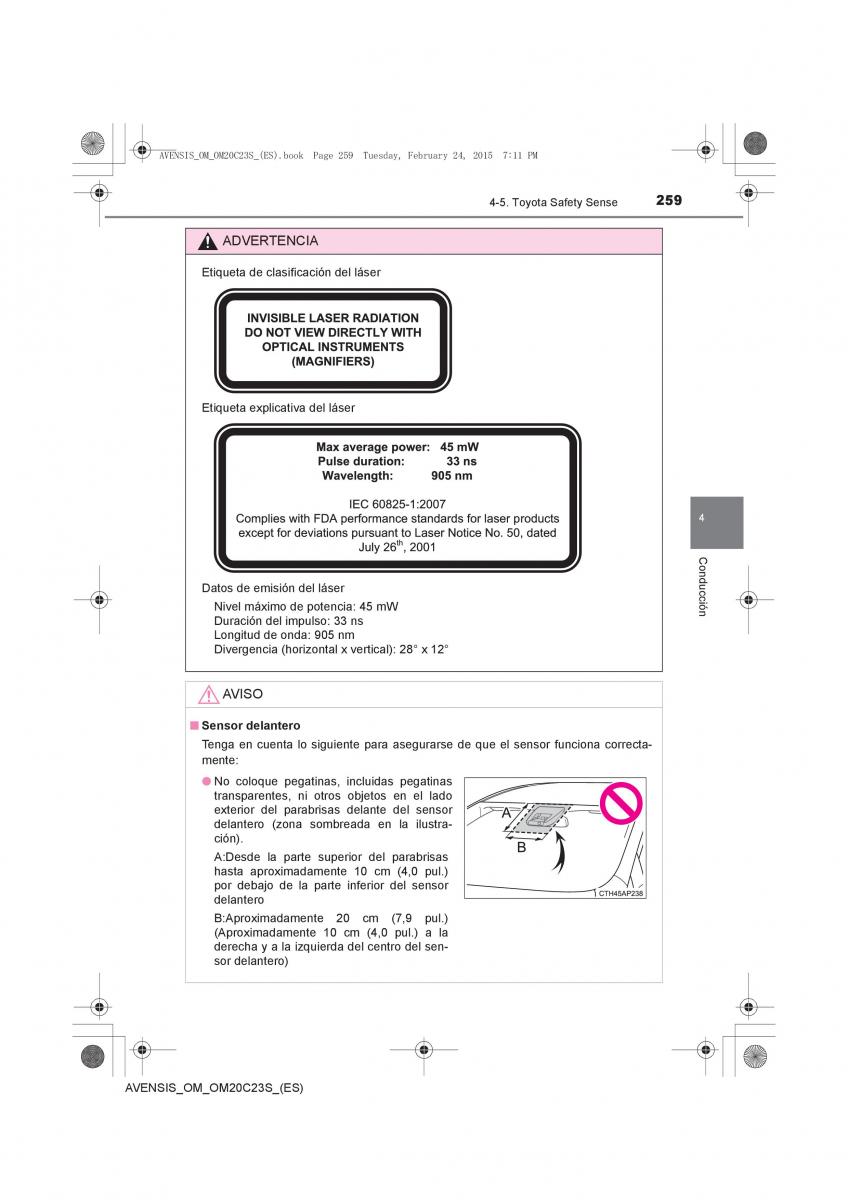

AVENSIS_OM_OM20C23S_(ES).book Page 259 Tuesday, February 24, 2015 7:11 PM
4-5. Toyota Safety Sense259
ADVERTENCIA
Etiqueta de clasificación del láser
Etiqueta explicativa del láser
4
Conducc
Datos de emisión del láser
i
Nivel máximo de potencia: 45 mW ó
Duración del impulso: 33 ns n
Longitud de onda: 905 nm
Divergencia (horizontal x vertical): 28° x 12°
AVISO
■Sensor delantero
Tenga en cuenta lo siguiente para asegurarse de que el sensor funciona correcta-
mente:
●No coloque pegatinas, incluidas pegatinas
transparentes, ni otros objetos en el lado
exterior del parabrisas delante del sensor
delantero (zona sombreada en la ilustra-
ción).
A:Desde la parte superior del parabrisas
hasta aproximadamente 10 cm (4,0 pul.)
por debajo de la parte inferior del sensor
delantero
B:Aproximadamente 20 cm (7,9 pul.)
(Aproximadamente 10 cm (4,0 pul.) a la
derecha y a la izquierda del centro del sen-
sor delantero)
AVENSIS_OM_OM20C23S_(ES)
