text version of content this owner's manual page from owners manual to the vehicle Chevrolet Astro, year of production 1995 - 2005:

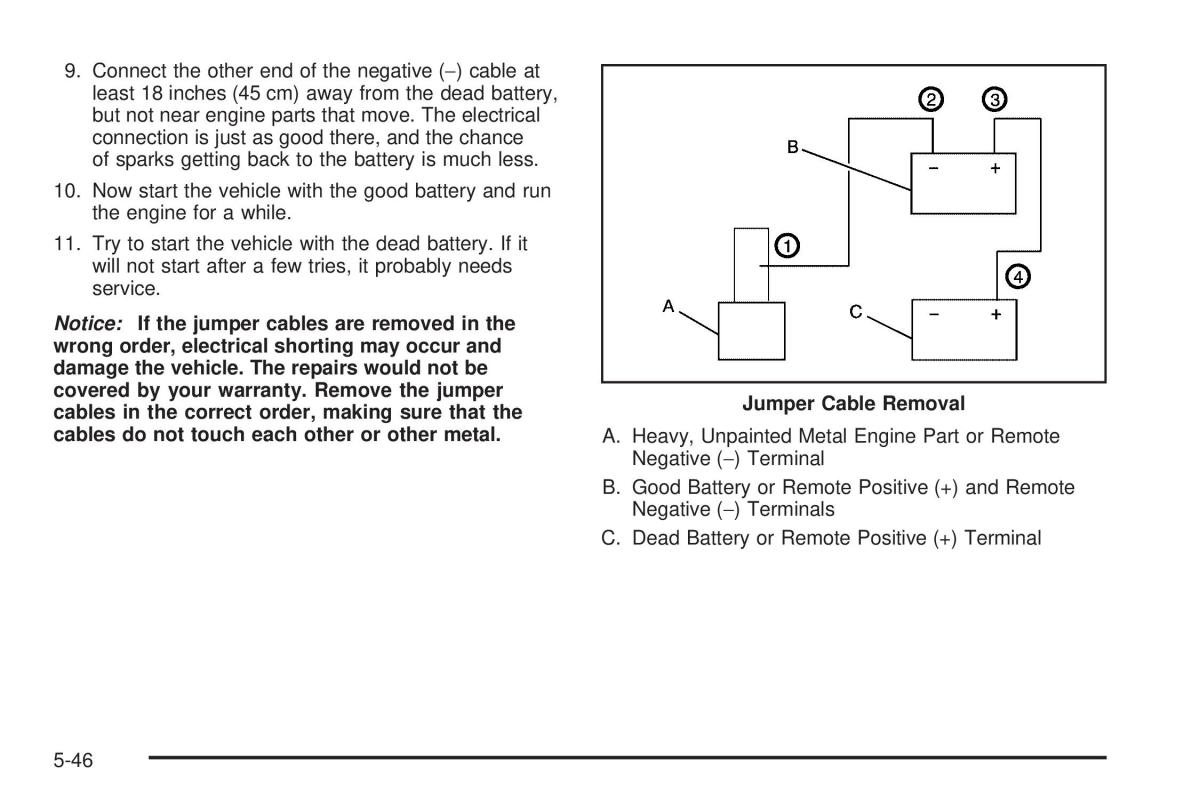

9. Connect the other end of the negative (−) cable at least 18 inches (45 cm) away from the dead battery, but not near engine parts that move. The electrical connection is just as good there, and the chance of sparks getting back to the battery is much less. 10. Now start the vehicle with the good battery and run the engine for a while. 11. Try to start the vehicle with the dead battery. If it will not start after a few tries, it probably needs service. Notice: If the jumper cables are removed in the wrongorder, electrical shorting may occur and damagethevehicle. The repairs would not be covered by your warranty. Remove the jumperJumper Cable Removal cables in the correct order, making sure that the cables do not touch each other or other metal.A. Heavy, Unpainted Metal Engine Part or Remote Negative (−) Terminal B. Good Battery or Remote Positive (+) and Remote Negative (−) Terminals C. Dead Battery or Remote Positive (+) Terminal 5-46
