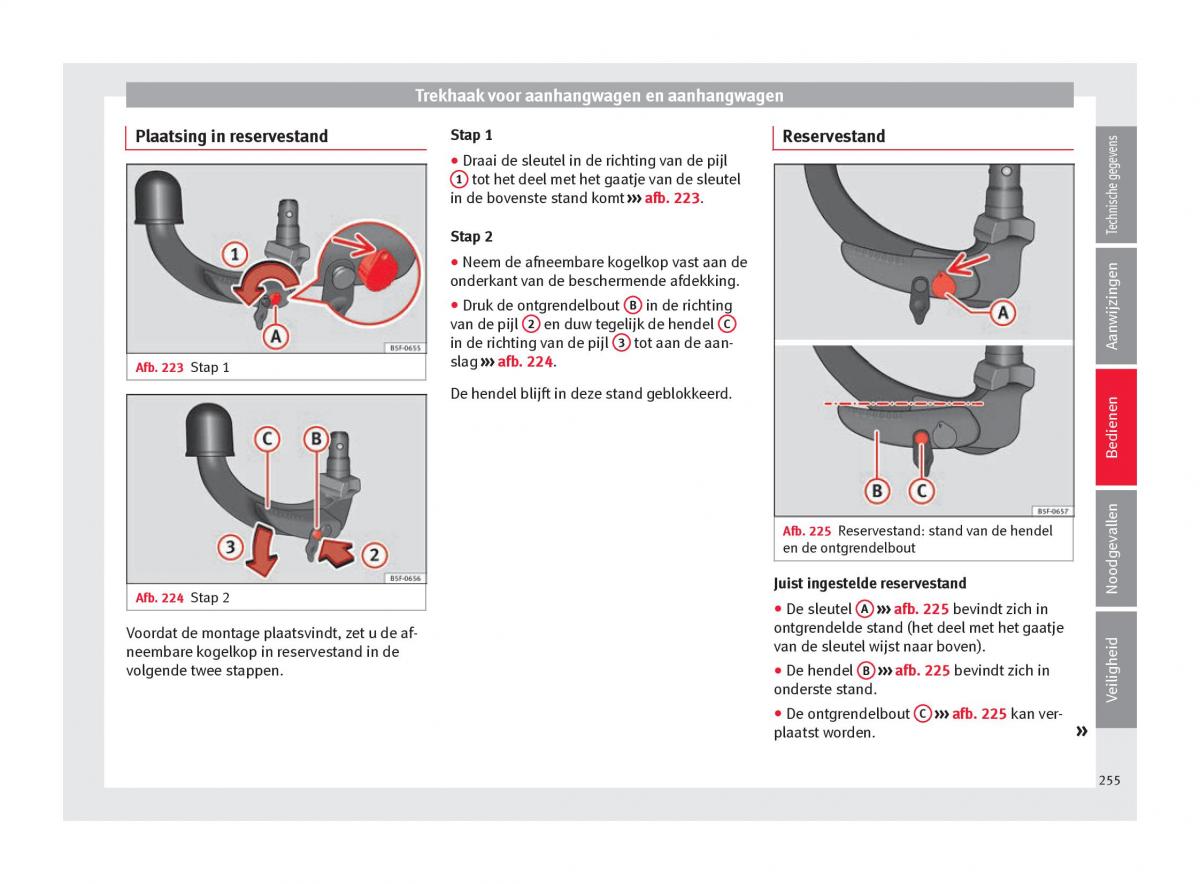

Trekhaak voor aanhangwagen en aanhangwagen
Stap 1 s
Plaatsing in reservestand Reservestand
en
● ev
Draai de sleutel in de richting van de pijl
g
e
1 tot het deel met het gaatje van de sleutel
he g
c
in de bovenste stand komt ››› afb. 223. s
hni
ec
T
Stap 2
●Neem de afneembare kogelkop vast aan de
en
onderkant van de beschermende afdekking. g
in
●Druk de ontgrendelbout B in de richting
ijz
w
van de pijl 2 en duw tegelijk de hendel C
in de richting van de pijl 3 tot aan de aan-
Aan
slag ››› afb. 224.
Afb. 223 Stap 1
De hendel blijft in deze stand geblokkeerd.
edienen
B
en
l
Afb. 225 Reservestand: stand van de hendelal
ev
en de ontgrendelbout
Juist ingestelde reservestand
Noodg
Afb. 224 Stap 2
● A ›
De sleutel › › afb. 225 bevindt zich in
ontgrendelde stand (het deel met het gaatje
Voordat de montage plaatsvindt, zet u de af-
van de sleutel wijst naar boven).
neembare kogelkop in reservestand in de
volgende twee stappen. ●De hendel B ››› afb. 225 bevindt zich in
ligheid
onderste stand. ei
V
● C ›
De ontgrendelbout › › afb. 225 kan ver-
plaatst worden. »
255
