text version of content this owner's manual page from owners manual to the vehicle Lexus IS, year of production 2013:

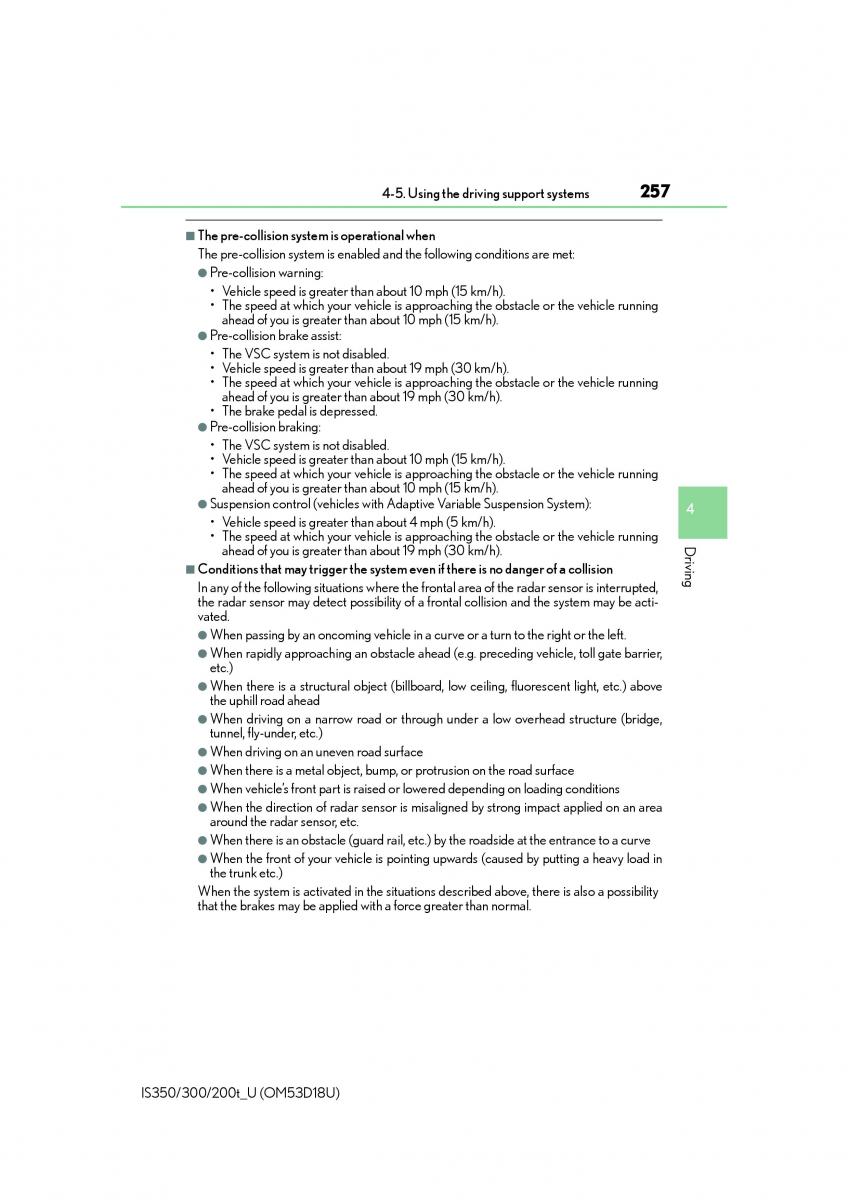

4-5. Using the driving support systems257 ■The pre-collision system is operational when The pre-collision system is enabled and the following conditions are met: ●Pre-collision warning: • Vehicle speed is greater than about 10 mph (15 km/h). • The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greater than about 10 mph (15 km/h). ●Pre-collision brake assist: • The VSC system is not disabled. • Vehicle speed is greater than about 19 mph (30 km/h). • The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greater than about 19 mph (30 km/h). • The brake pedal is depressed. ●Pre-collision braking: • The VSC system is not disabled. • Vehicle speed is greater than about 10 mph (15 km/h). • The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greater than about 10 mph (15 km/h). ●Suspension control (vehicles with Adaptive Variable Suspension System):4 • Vehicle speed is greater than about 4 mph (5 km/h). • The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greater than about 19 mph (30 km/h).Dr ■Conditions that may trigger the system even if there is no danger of a collisioniving In any of the following situations where the frontal area of the radar sensor is interrupted, the radar sensor may detect possibility of a frontal collision and the system may be acti- vated. ●When passing by an oncoming vehicle in a curve or a turn to the right or the left. ●When rapidly approaching an obstacle ahead (e.g. preceding vehicle, toll gate barrier, etc.) ●When there is a structuralject (bill obboard, low ceiling, fluorescent light, etc.) above the uphill road ahead ●When driving on a narrow road or through under a low overhead structure (bridge, tunnel, fly-under, etc.) ●When driving on an uneven road surface ●When there is a metal object, bump, or protrusion on the road surface ●When vehicle’s front part is raised or lowered depending on loading conditions ●When the direction of radar sensor is misaligned by strong impact applied on an area around the radar sensor, etc. ●When there is an obstacle (guard rail, etc.) by the roadside at the entrance to a curve ●When the front of your vehicle is pointing upwards (caused by putting a heavy load in the trunk etc.) When the system is activated in the situations described above, there is also a possibility that the brakes may be applied with a force greater than normal. IS350/300/200t_U (OM53D18U)
