owners manual Toyota Corolla

all ratings: 0 average rating: 5

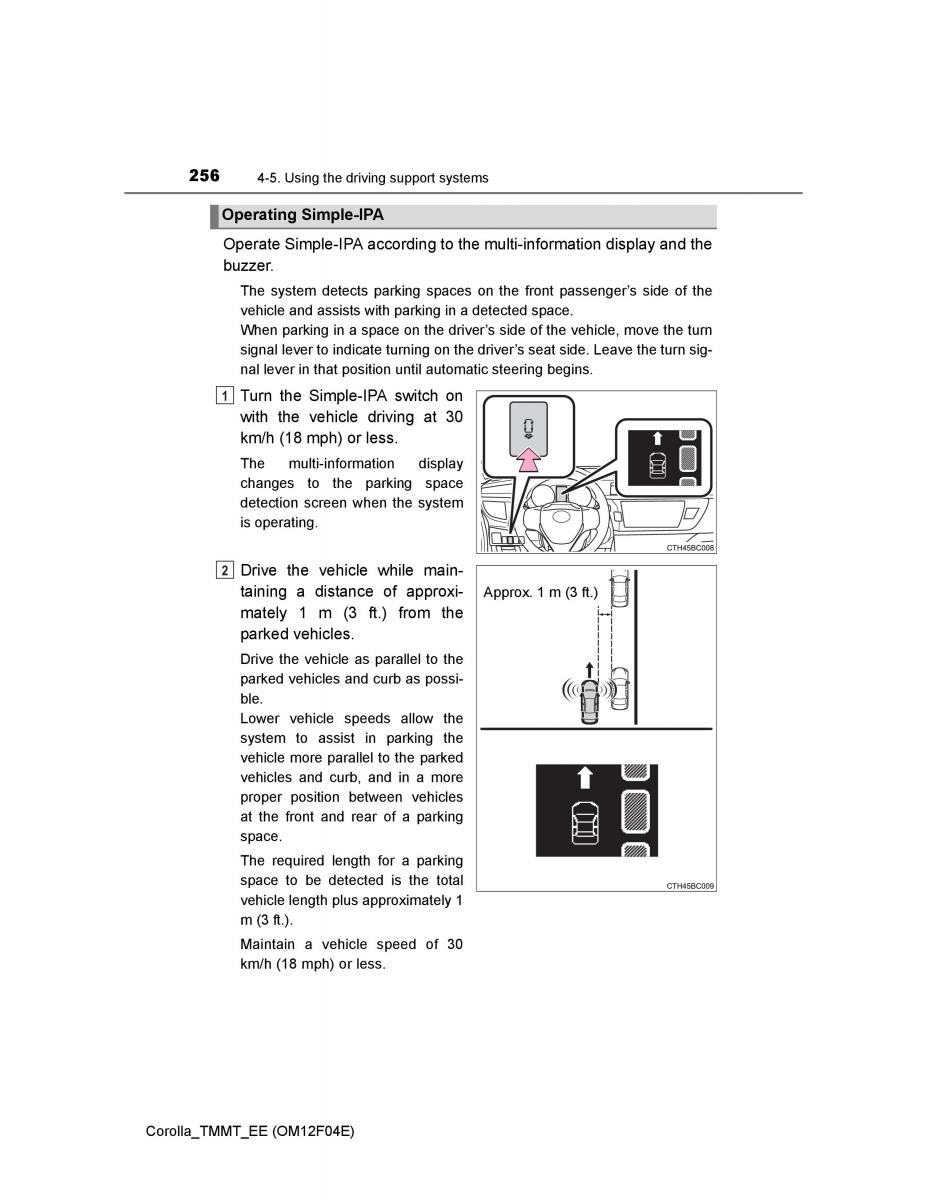

256 4-5. Using the driving support systems Operating Simple-IPA Operate Simple-IPA according to the multi-information display and the buzzer. The system detects parking spaces on the front passenger’s side of the vehicle and assists with parking in a detected space. When parking in a space on the driver’s side of the vehicle, move the turn signal lever to indicate turning on the driver’s seat side. Leave the turn sig- nal lever in that position until automatic steering begins. 1 Turn the Simple-IPA switch on with the vehicle driving at 30 km/h (18 mph) or less. The multi-information display changes to the parking space detection screen when the system is operating. 2 Drive the vehicle while main- taining a distance of approxi- Approx. 1 m (3 ft.) mately 1 m (3 ft.) from the parked vehicles. Drive the vehicle as parallel to the parked vehicles and curb as possi- ble. Lower vehicle speeds allow the system to assist in parking the vehicle more parallel to the parked vehicles and curb, and in a more proper position between vehicles at the front and rear of a parking space. The required length for a parking space to be detected is the total vehicle length plus approximately 1 m (3 ft.). Maintain a vehicle speed of 30 km/h (18 mph) or less. Corolla_TMMT_EE (OM12F04E)
