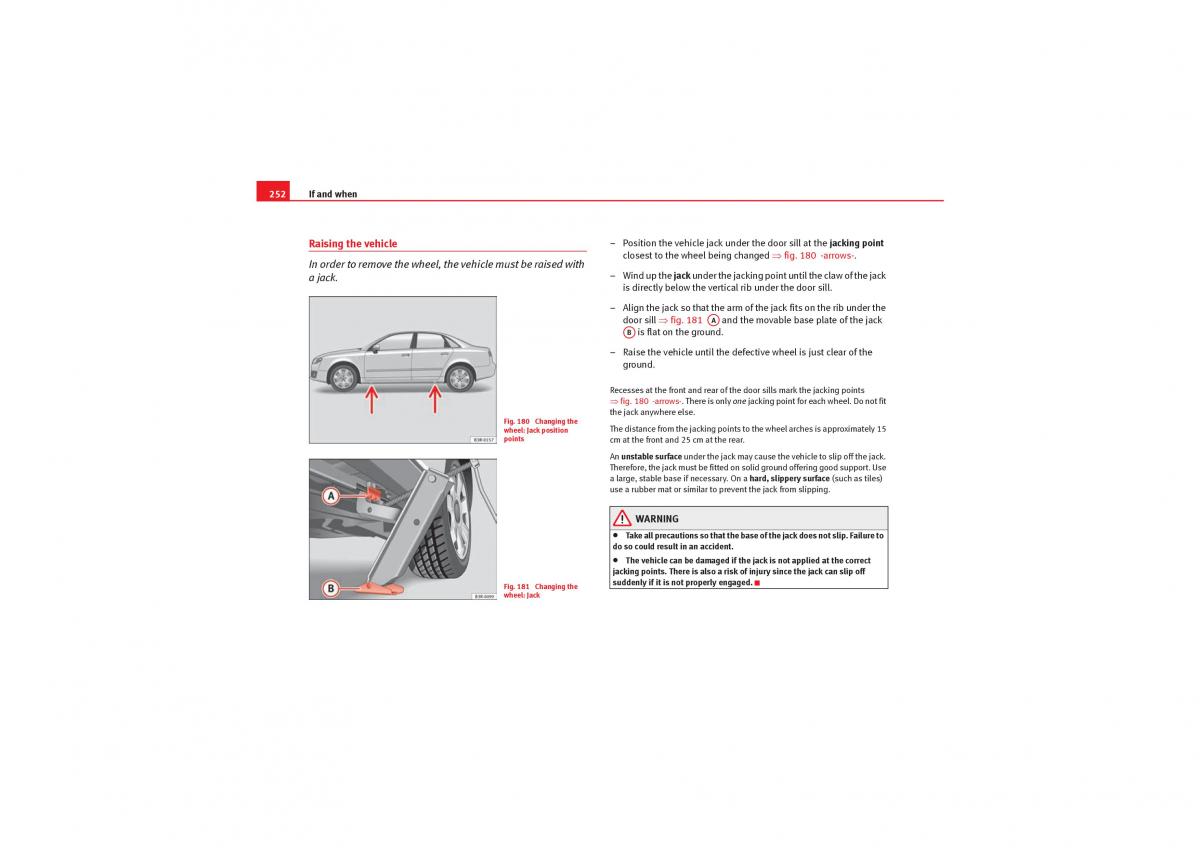

exeo_EN.book Seite 252 Montag, 30. August 2010 4:45 16 252 If and when Raising the vehicle – Position the vehicle jack under the door sill at the jacking point closest to the wheel being changed ⇒ fig. 180 -arrows-. In order to remove the wheel, the vehicle must be raised with a jack. –Wind up the jac kunder the jacking point until the claw of the jack is directly below the vertical rib under the door sill. – Align the jack so that the arm of the jack fits on the rib under the door sill ⇒ fig. 181 A and the movable base plate of the jack A B is flat on the ground. A – Raise the vehicle until the defective wheel is just clear of the ground. Recesses at the front and rear of the door sills mark the jacking points ⇒fig.180 -arrows-. There is only one jacking point for each wheel. Do not fit the jack anywhere else. Fig. 180 Changing the wheel: Jack position The distance from the jacking points to the wheel arches is approximately 15 points cm at the front and 25 cm at the rear. An unstable surface under the jack may cause the vehicle to slip off the jack. Therefore, the jack must be fitted on solid ground offering good support. Use a large, stable base if necessary. On a hard, slippery surface (such as tiles) use a rubber mat or similar to prevent the jack from slipping. WARNING • Take all precautions so that the base of the jack does not slip. Failure to do so could result in an accident. • The vehicle can be damaged if the jack is not applied at the correct jacking points. There is also a risk of injury since the jack can slip off Fig. 181 Changing the suddenly if it is not properly engaged. wheel: Jack
