text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

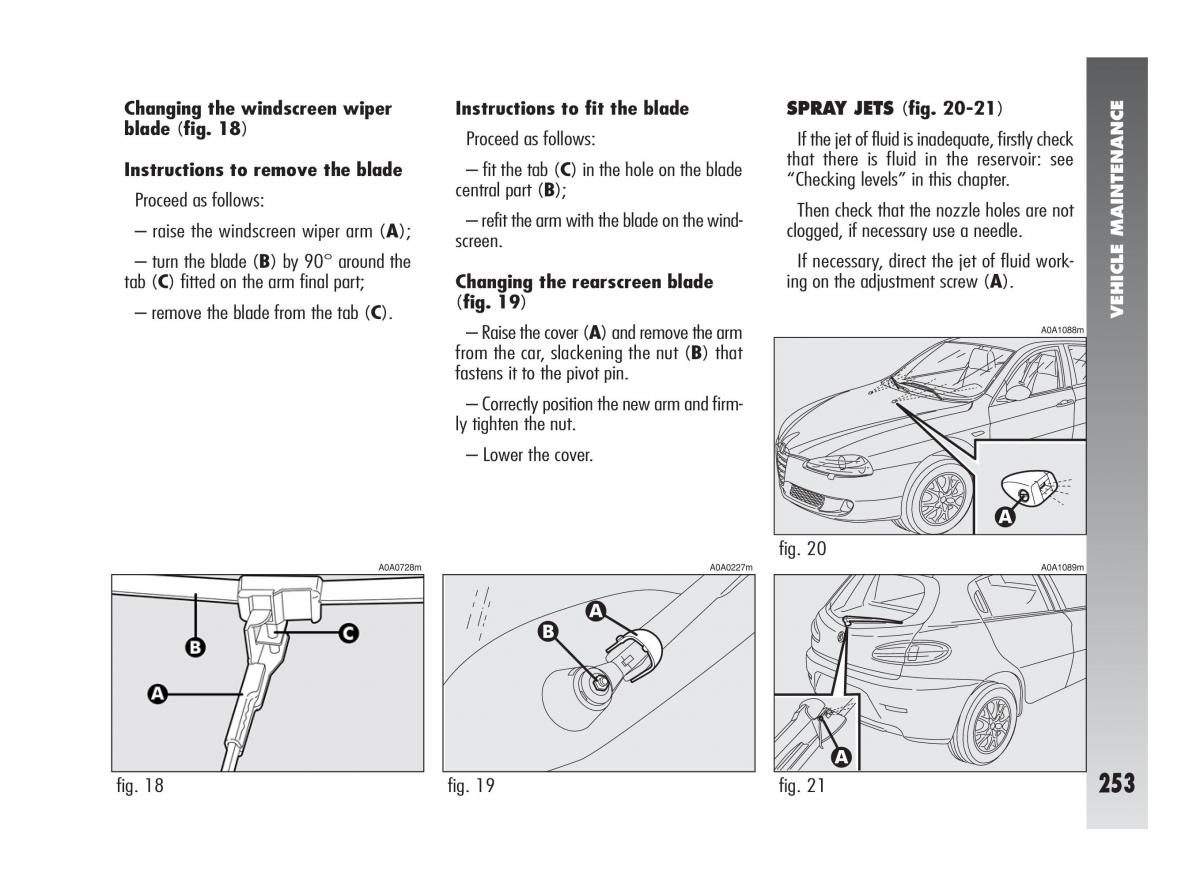

234-257_Alfa147 Q2 GB 4-07-2008 12:05 Pagina 253 Changing the windscreen wiper Instructions to fit the blade SPRAY JETS (fig. 20-21) blade (fig. 18) Proceed as follows: If the jet of fluid is inadequate, firstly check Instructions to remove the blade – fit the tab (C) in the hole on the blade that there is fluid in the reservoir: see central part ( B); “Checking levels” in this chapter. Proceed as follows: Then check that the nozzle holes are not – refit the arm with the blade on the wind- clogged, if necessary use a needle. – raise the windscreen wiper arA); m ( screen. – turn the blade (B) by 90° around the If necessary, direct the jet of fluid work- tab (C) fitted on the arm final part; Changing the rearscreen blade ing on the adjustment screw (A). (fig. 19) – remove the blade from the tab (C). VEHICLE MAINTENANCE – Raise the cover (A) and remove the arm A0A1088m from the car, slackening the nut (B) that fastens it to the pivot pin. – Correctly position the new arm and firm- ly tighten the nut. – Lower the cover. fig. 20 A0A0728m A0A0227m A0A1089m fig. 18 fig. 19 fig. 21 253
