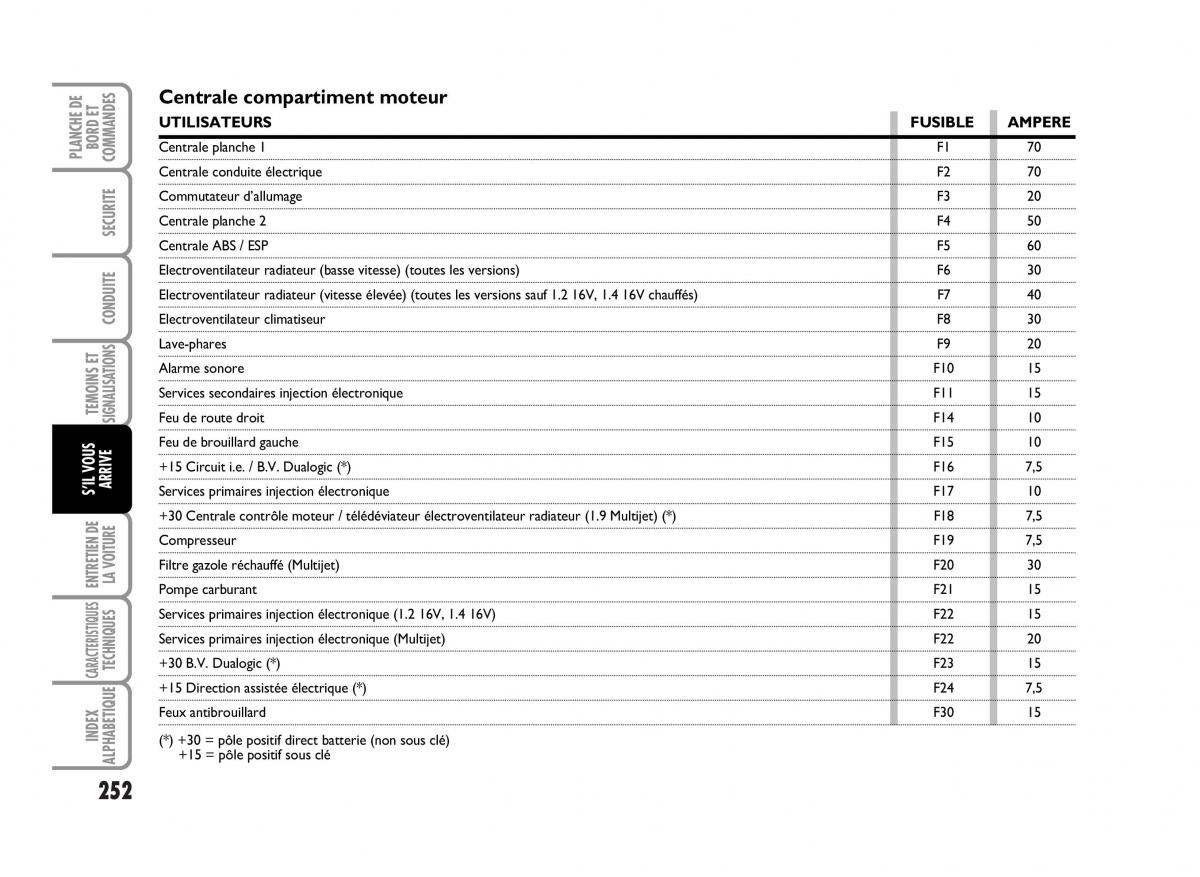

Centrale compartiment moteur
UTILISATEURS FUSIBLE AMPERE
PLANCHE DEBORD ETCOMMANDESCentrale planche 1 F1 70
Centrale conduite électrique F2 70
Commutateur dallumage F3 20
SECURITECentrale planche 2 F4 50
Centrale ABS / ESP F5 60
Electroventilateur radiateur (basse vitesse) (toutes les versions) F6 30
Electroventilateur radiateur (vitesse élevée) (toutes les versions sauf 1.2 16V, 1.4 16V chauffés)F740
CONDUITEElectroventilateur climatiseur F8 30
Lave-phares F9 20
TIONSAlarme sonore F10 15
Services secondaires injection électronique F11 15
TEMOINS ETSIGNALISAFeu de route droit F14 10
Feu de brouillard gauche F15 10
+15 Circuit i.e. / B.V. Dualogic (*) F16 7,5
S’IL VOUSARRIVEServices primaires injection électronique F17 10
+30 Centrale contrôle moteur / télédéviateur électroventilateur radiateur (1.9 Multijet) (*)F187,5
Compresseur F19 7,5
LA VOITUREFiltre gazole réchauffé (Multijet) F20 30
ENTRETIEN DEPompe carburant F21 15
Services primaires injection électronique (1.2 16V, 1.4 16V) F22 15
Services primaires injection électronique (Multijet) F22 20
CARACTERISTIQUESTECHNIQUES+30 B.V. Dualogic (*) F23 15
+15 Direction assistée électrique (*) F24 7,5
Feux antibrouillard F30 15
INDEX(*) +30 = pôle positif direct batterie (non sous clé)
ALPHABETIQUE+15 = pôle positif sous clé
252
