text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

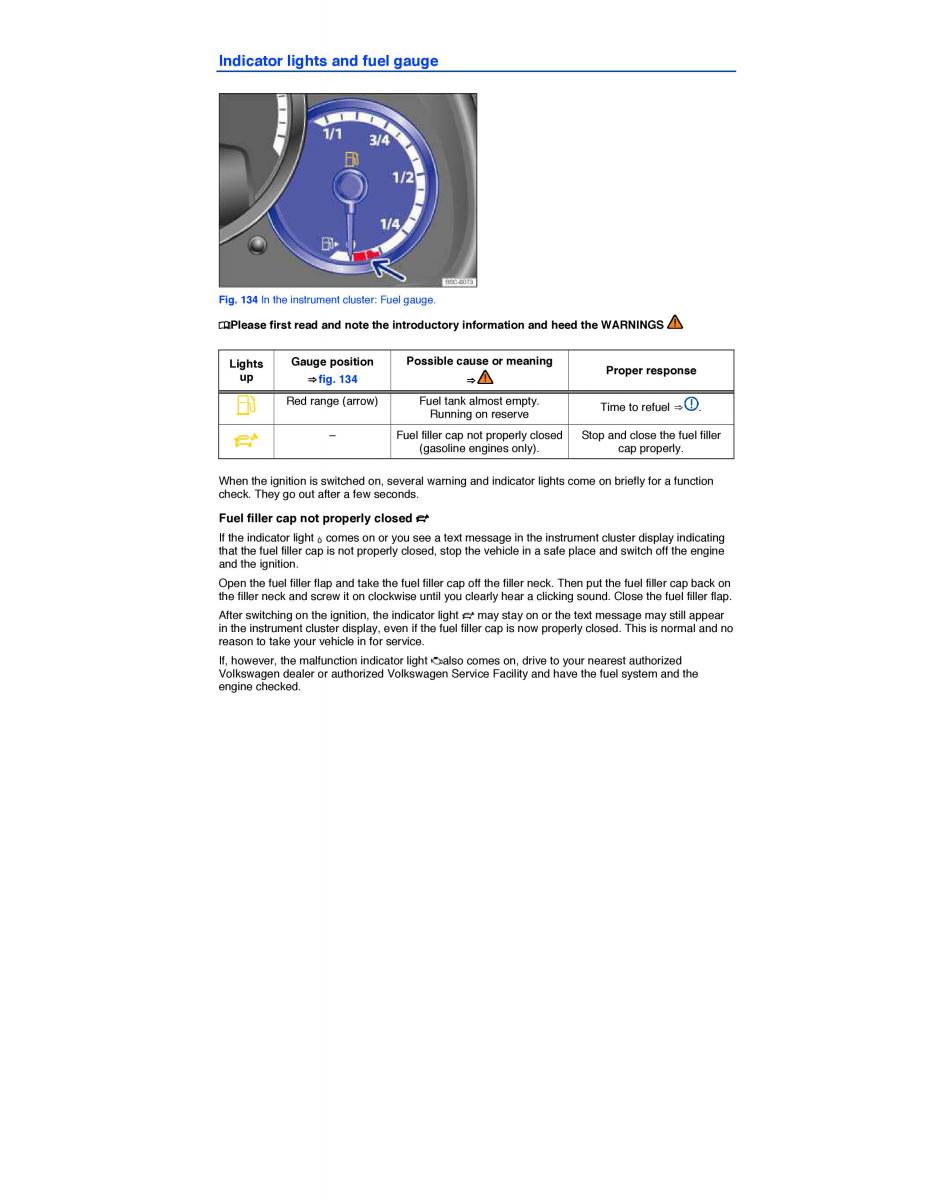

Indicator lights and fuel gauge Fig. 134 In the instrument cluster: Fuel gauge. ¤Please first read and note the introductory information and heed the WARNINGS Lights Gauge position Possible cause or meaning Proper response up ⇒ fig. 134 ⇒ Red range (arrow) Fuel tank almost empty. Time to refuel ⇒ . Running on reserve ´ – Fuel filler cap not properly closed Stop and close the fuel filler (gasoline engines only). cap properly. When the ignition is switched on, several warning and indicator lights come on briefly for a function check. They go out after a few seconds. Fuel filler cap not properly closed ´ If the indicator light comes on or you see a text message in the instrument cluster display indicating ò that the fuel filler cap is not properly closed, stop the vehicle in a safe place and switch off the engine and the ignition. Open the fuel filler flap and take the fuel filler cap off the filler neck. Then put the fuel filler cap back on the filler neck and screw it on clockwise until you clearly hear a clicking sound. Close the fuel filler flap. After switching on the ignition, the indicator light ´ may stay on or the text message may still appear in the instrument cluster display, even if the fuel filler cap is now properly closed. This is normal and no reason to take your vehicle in for service. If, however, the malfunction indicator light Balso comes on, drive to your nearest authorized Volkswagen dealer or authorized Volkswagen Service Facility and have the fuel system and the engine checked.
