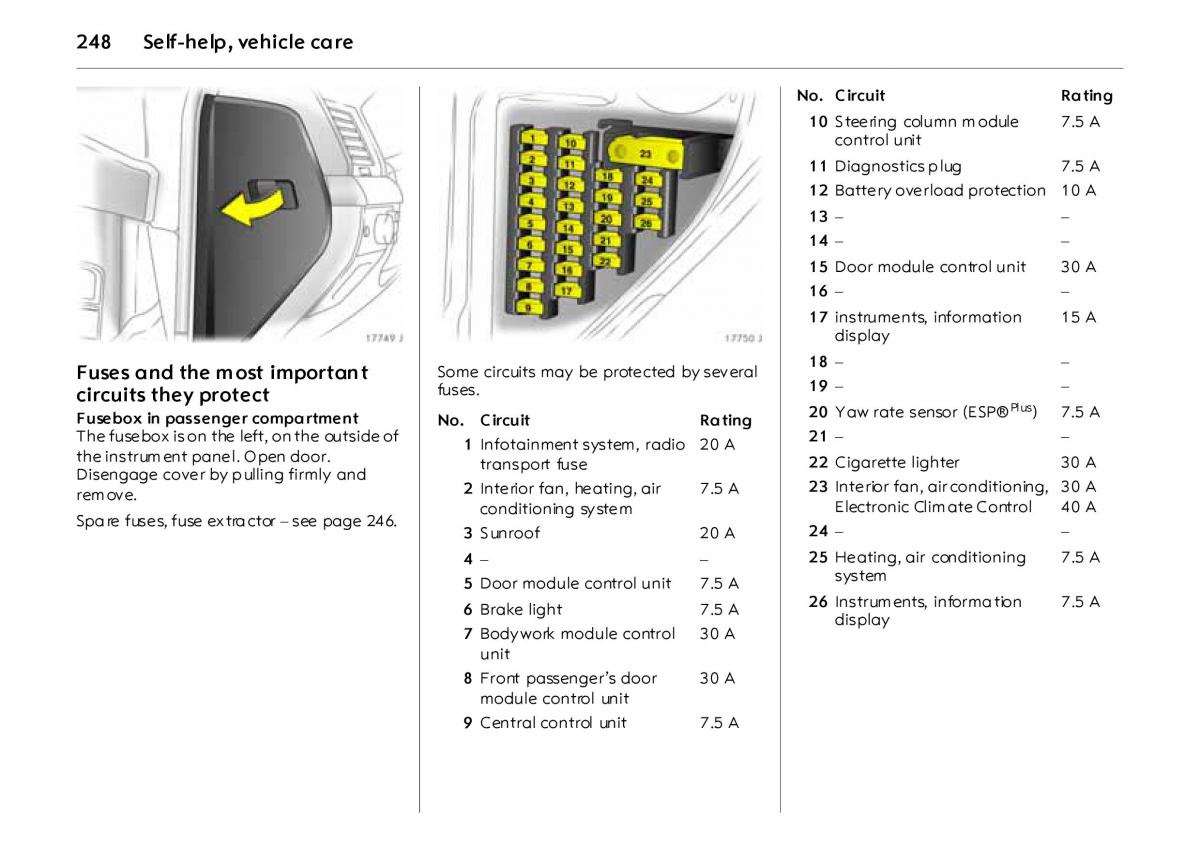

248 Self-help, vehicle care
No. Circuit Rating
10Steering column module 7.5 A
control unit
11Diagnostics plug 7.5 A
12Battery overload protection 10 A
13––
14––
15Door module control unit 30 A
16––
17instruments, information 15 A
display
Fuses and the most important Some circuits may be protected by several 18––
circuits they protect fuses. 19––
Pl us
Fusebox in passenger compartment No. Circuit Rating 20Yaw rate sensor (ESP® )7.5 A
The fusebox is on the left, on the outside of 1 Infotainment system, radio 20 A21––
the instrument panel. Open door. transport fuse 22Cigarette lighter 30 A
Disengage cover by pulling firmly and 2 Interior fan, heating, air 7.5 A 23Interior fan, air conditioning, 30 A
remove. conditioning system Electronic Climate Control 40A
Spare fuses, fuse extractor – see page 246. 3 Sunroof 20 A 24––
25Heating, air conditioning 7.5 A
4 ––
5 Door module control unit7.5 A system
6 Brake light 7.5 A 26Instruments, information 7.5 A
7 Bodywork module control 30 A display
unit
8 Front passenger’s door 30 A
module control unit
9 Central control unit 7.5 A
