VW Golf VI 6 GTI owners manual page 252

text version of content this owner's manual page from owners manual to the vehicle VW Golf VI GTI, year of production 2008 - 2013:

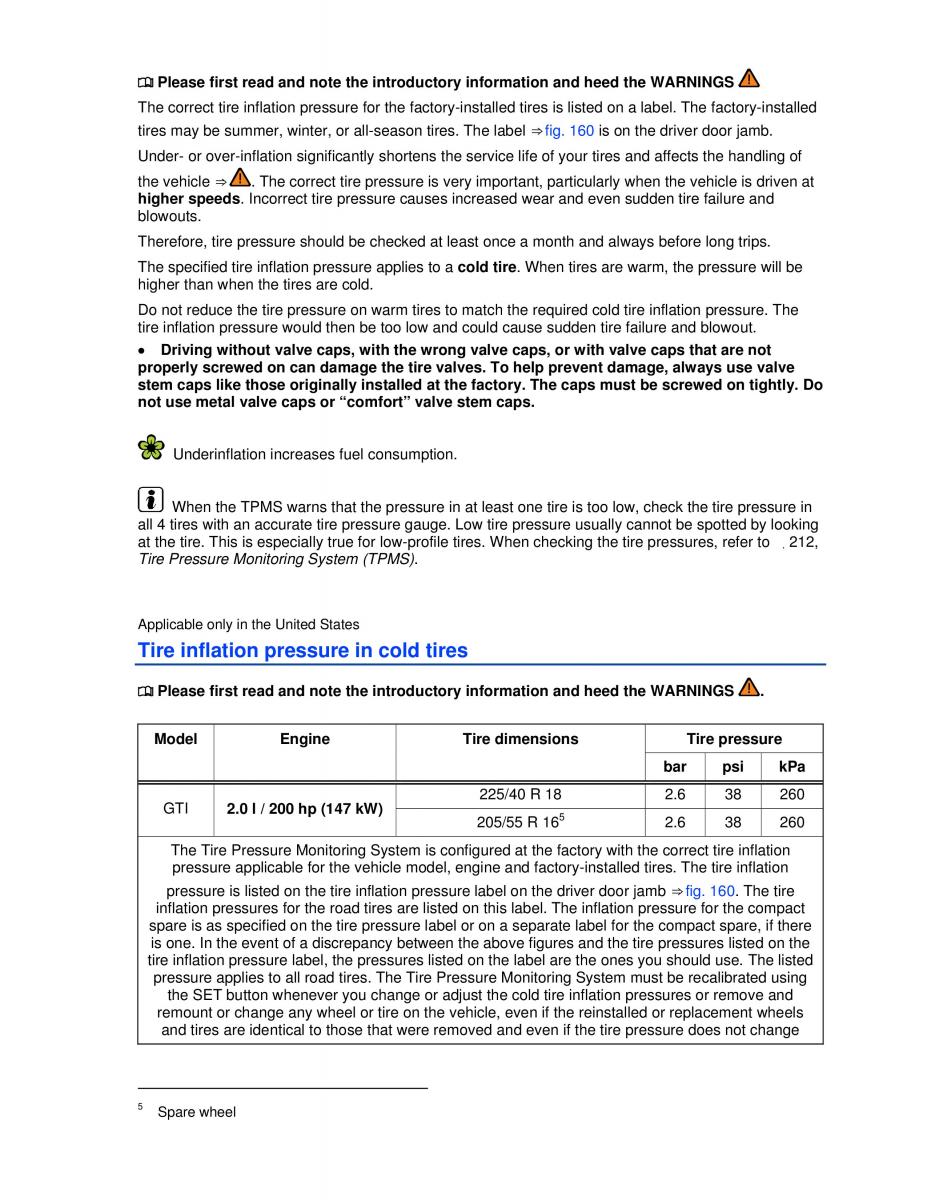

¤ Please first read and note the introductory information and heed the WARNINGS The correct tire inflation pressure for the factory-installed tires is listed on a label. The factory-installed tires may be summer, winter, or all-season tires. The label ⇒ fig. 160 is on the driver door jamb. Under- or over-inflation significantly shortens the service life of your tires and affects the handling of the vehicle ⇒ . The correct tire pressure is very important, particularly when the vehicle is driven at higher speeds. Incorrect tire pressure causes increased wear and even sudden tire failure and blowouts. Therefore, tire pressure should be checked at least once a month and always before long trips. The specified tire inflation pressure applies to a cold tire. When tires are warm, the pressure will be higher than when the tires are cold. Do not reduce the tire pressure on warm tires to match the required cold tire inflation pressure. The tire inflation pressure would then be too low and could cause sudden tire failure and blowout. x Driving without valve caps, with the wrong valve caps, or with valve caps that are not properly screwed on can damage the tire valves. To help prevent damage, always use valve stem caps like those originally installed at the factory. The caps must be screwed on tightly. Do not use metal valve caps or “comfort” valve stem caps. Underinflation increases fuel consumption. When the TPMS warns that the pressure in at least one tire is too low, check the tire pressure in all 4 tires with an accurate tire pressure gauge. Low tire pressure usually cannot be spotted by looking at the tire. This is especially true for low-profile tires. When checking the tire pressures, refer to 212, . Tire Pressure Monitoring System (TPMS). Applicable only in the United States Tire inflation pressure in cold tires ¤ Please first read and note the introductory information and heed the WARNINGS . Model Engine Tire dimensions Tire pressure bar psi kPa 225/40 R 18 2.6 38 260 GTI 2.0 l / 200 hp (147 kW) 5 205/55 R 16 238 .626 0 The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb ⇒ fig. 160. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated using the SET button whenever you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change 5 Spare wheel
