text version of content this owner's manual page from owners manual to the vehicle Volvo 850, year of production 1991 - 1996:

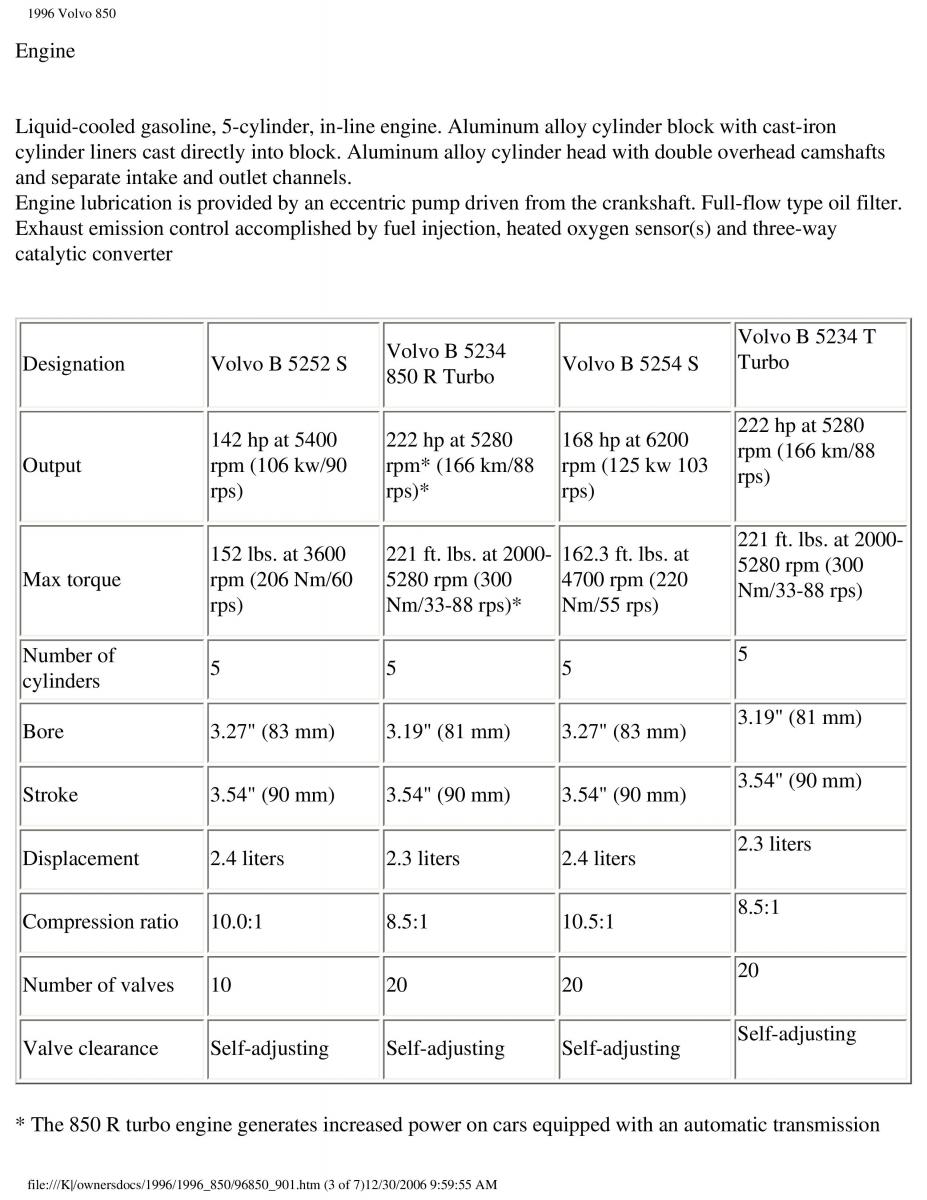

1996 Volvo 850 Engine Liquid-cooled gasoline, 5-cylinder, in-line engine. Aluminum alloy cylinder block with cast-iron cylinder liners cast directly into block. Aluminum alloy cylinder head with double overhead camshafts and separate intake and outlet channels. Engine lubrication is provided by an eccentric pump driven from the crankshaft. Full-flow type oil filter. Exhaust emission control accomplished by fuel injection, heated oxygen sensor(s) and three-way catalytic converter Volvo B 5234 Volvo B 5234 T Designation Volvo B 5252 S 850 R Turbo Volvo B 5254 S Turbo 142 hp at 5400 222 hp at 5280 168 hp at 6200 222 hp at 5280 Output rpm (106 kw/90 rpm* (166 km/88 rpm (125 kw 103 rpm (166 km/88 rps) rps)* rps) rps) 152 lbs. at 3600 221 ft. lbs. at 2000- 162.3 ft. lbs. at 221 ft. lbs. at 2000- Max torque rpm (206 Nm/60 5280 rpm (300 4700 rpm (220 5280 rpm (300 rps) Nm/33-88 rps)* Nm/55 rps) Nm/33-88 rps) Number of 5 5 5 5 cylinders Bore 3.27" (83 mm) 3.19" (81 mm) 3.27" (83 mm) 3.19" (81 mm) Stroke 3.54" (90 mm) 3.54" (90 mm) 3.54" (90 mm) 3.54" (90 mm) Displacement 2.4 liters 2.3 liters 2.4 liters 2.3 liters Compression ratio 10.0:1 8.5:1 10.5:1 8.5:1 Number of valves 10 20 20 20 Valve clearance Self-adjusting Self-adjusting Self-adjusting Self-adjusting * The 850 R turbo engine generates increased power on cars equipped with an automatic transmission file:///K|/ownersdocs/1996/1996_850/96850_901.htm (3 of 7)12/30/2006 9:59:55 AM
