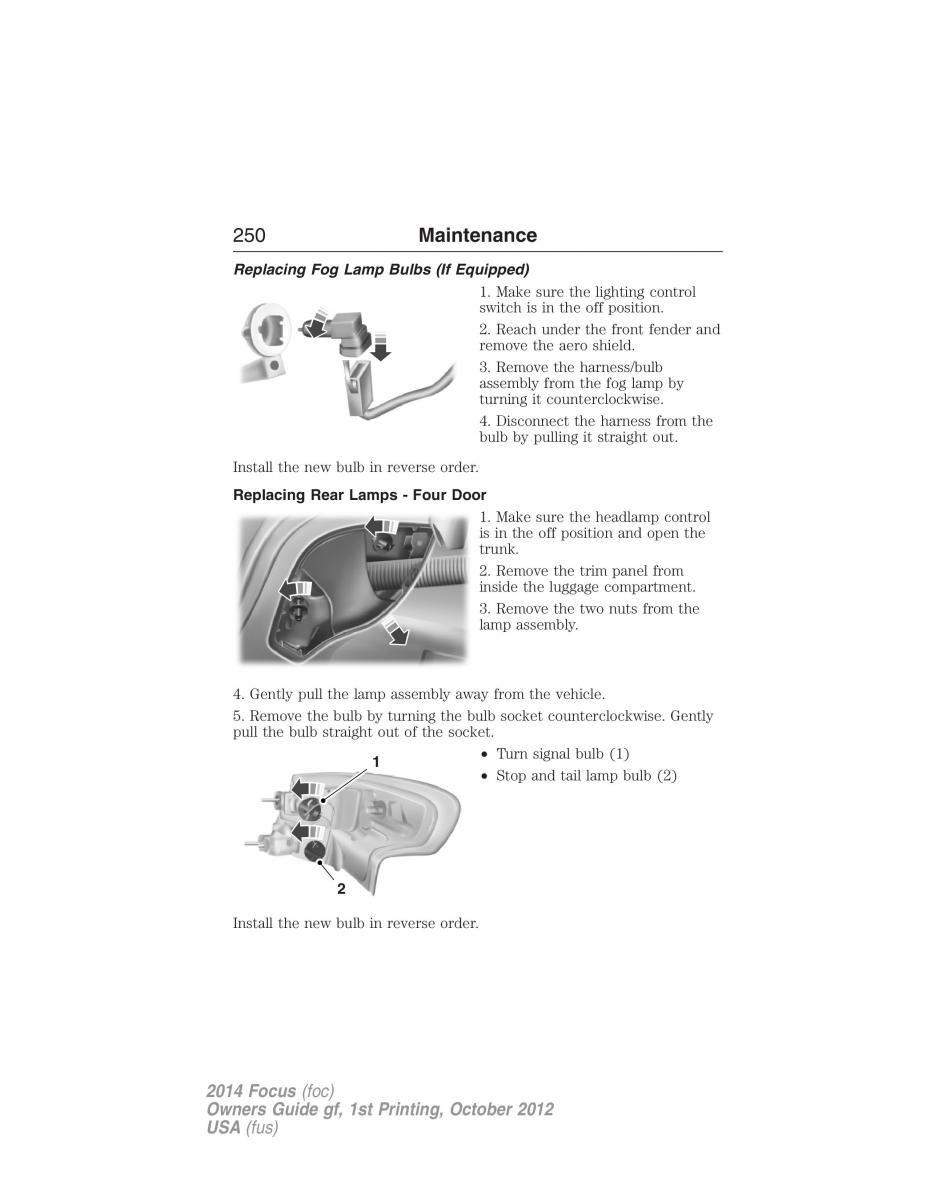

250 Maintenance
Replacing Fog Lamp Bulbs (If Equipped)
1. Make sure the lighting control
switch is in the off position.
2. Reach under the front fender and
remove the aero shield.
3. Remove the harness/bulb
assembly from the fog lamp by
turning it counterclockwise.
4. Disconnect the harness from the
bulb by pulling it straight out.
Install the new bulb in reverse order.
Replacing Rear Lamps - Four Door
1. Make sure the headlamp control
is in the off position and open the
trunk.
2. Remove the trim panel from
inside the luggage compartment.
3. Remove the two nuts from the
lamp assembly.
4. Gently pull the lamp assembly away from the vehicle.
5. Remove the bulb by turning the bulb socket counterclockwise. Gently
pull the bulb straight out of the socket.
1 • Turn signal bulb (1)
• Stop and tail lamp bulb (2)
2
Install the new bulb in reverse order.
2014 Focus (foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
