text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

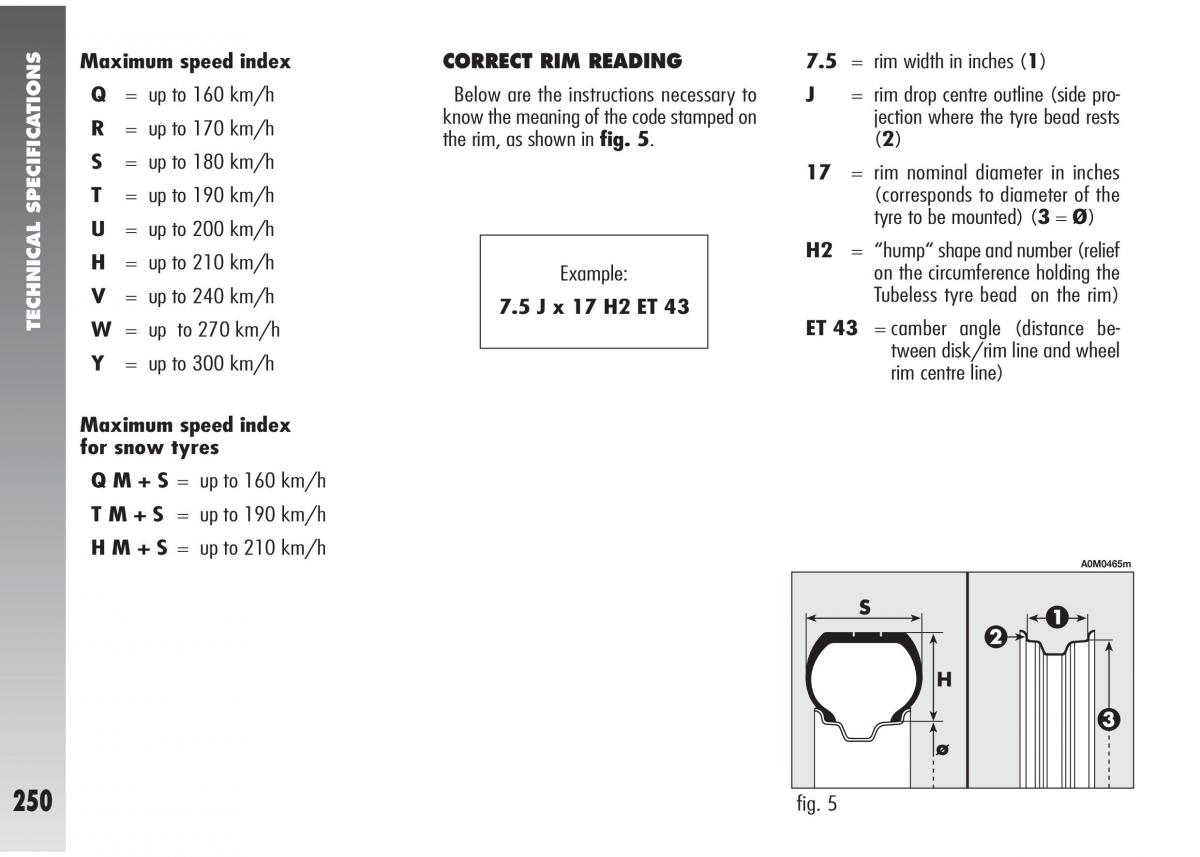

Maximum speed index CORRECT RIM READING 7.5 = rim width in inches ( 1) Q = up to 160 km/h J = rim drop centre outline (side pro- TIONS Below are the instructions necessary to R = up to 170 km/h know the meaning of the code stamped on jection where the tyre bead rests the rim, as shown in fig. 5. (2) S = up to 180 km/h 17 = rim nominal diameter in inches T = up to 190 km/h (corresponds to diameter of the U = up to 200 km/h tyre to be mounted) (3=Ø) H = up to 210 km/h H2 = “hump“ shape and number (relief Example: on the circumference holding the V = up to 240 km/h 7.5 J x 17 H2 ET 43 Tubeless tyre bead on the rim) TECHNICAL SPECIFICAW = up to 270 km/h ET 43 = camber angle (distance be- Y = up to 300 km/h tween disk/rim line and wheel rim centre line) Maximum speed index for snow tyres Q M + S = up to 160 km/h T M + S = up to 190 km/h H M + S = up to 210 km/h A0M0465m 250 fig. 5
