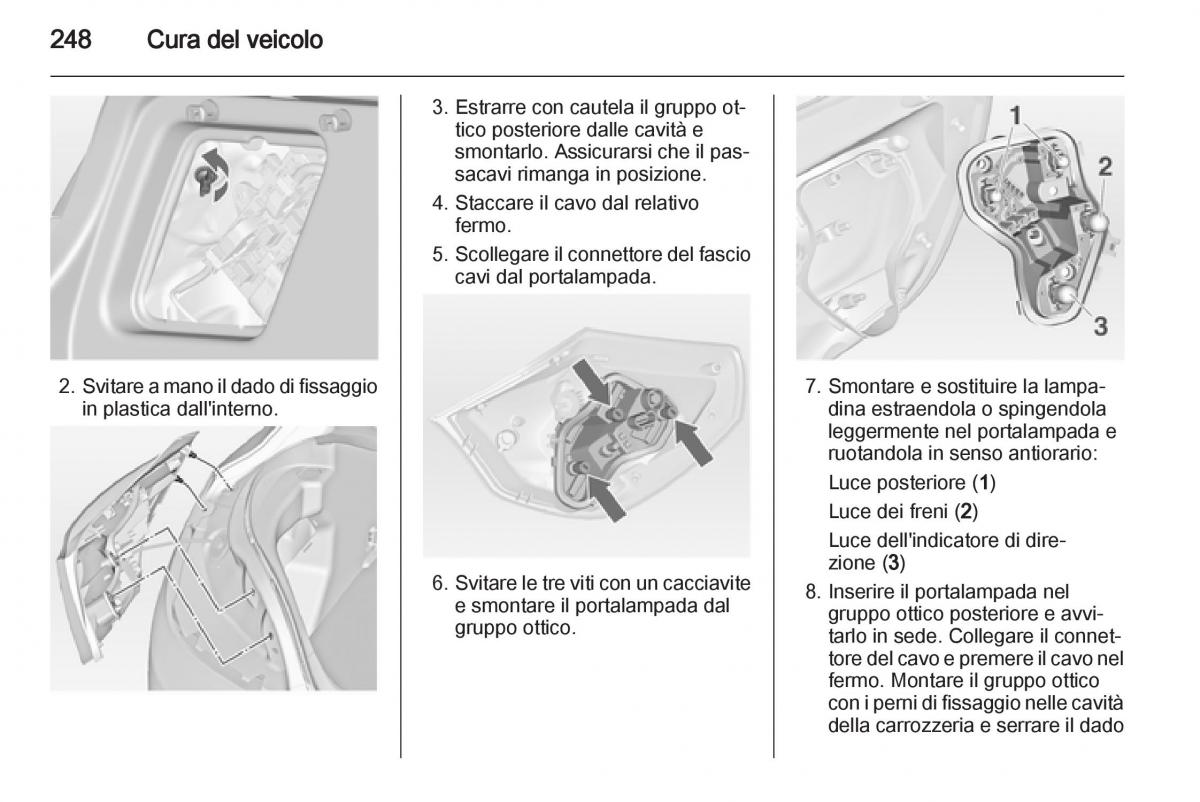

248 Cura del veicolo
3. Estrarre con cautela il gruppo ot‐
tico posteriore dalle cavità e
smontarlo. Assicurarsi che il pas‐
sacavi rimanga in posizione.
4. Staccare il cavo dal relativo
fermo.
5. Scollegare il connettore del fascio
cavi dal portalampada.
2. Svitare a mano il dado di fissaggio7. Smontare e sostituire la lampa‐
in plastica dall'interno. dina estraendola o spingendola
leggermente nel portalampada e
ruotandola in senso antiorario:
Luce posteriore (1)
Luce dei freni (2)
Luce dell'indicatore di dire‐
zione (3)
6. Svitare le tre viti con un cacciavite
8. Inserire il portalampada nel
e smontare il portalampada dal
gruppo ottico posteriore e avvi‐
gruppo ottico.
tarlo in sede. Collegare il connet‐
tore del cavo e premere il cavo nel
fermo. Montare il gruppo ottico
con i perni di fissaggio nelle cavità
della carrozzeria e serrare il dado
