owners manual Toyota Corolla

owners manual Toyota Corolla - year of production: 2013 - Toyota Corolla XI 11 E160 owners manual EN

Document: pdf (18.25 MB) 632 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

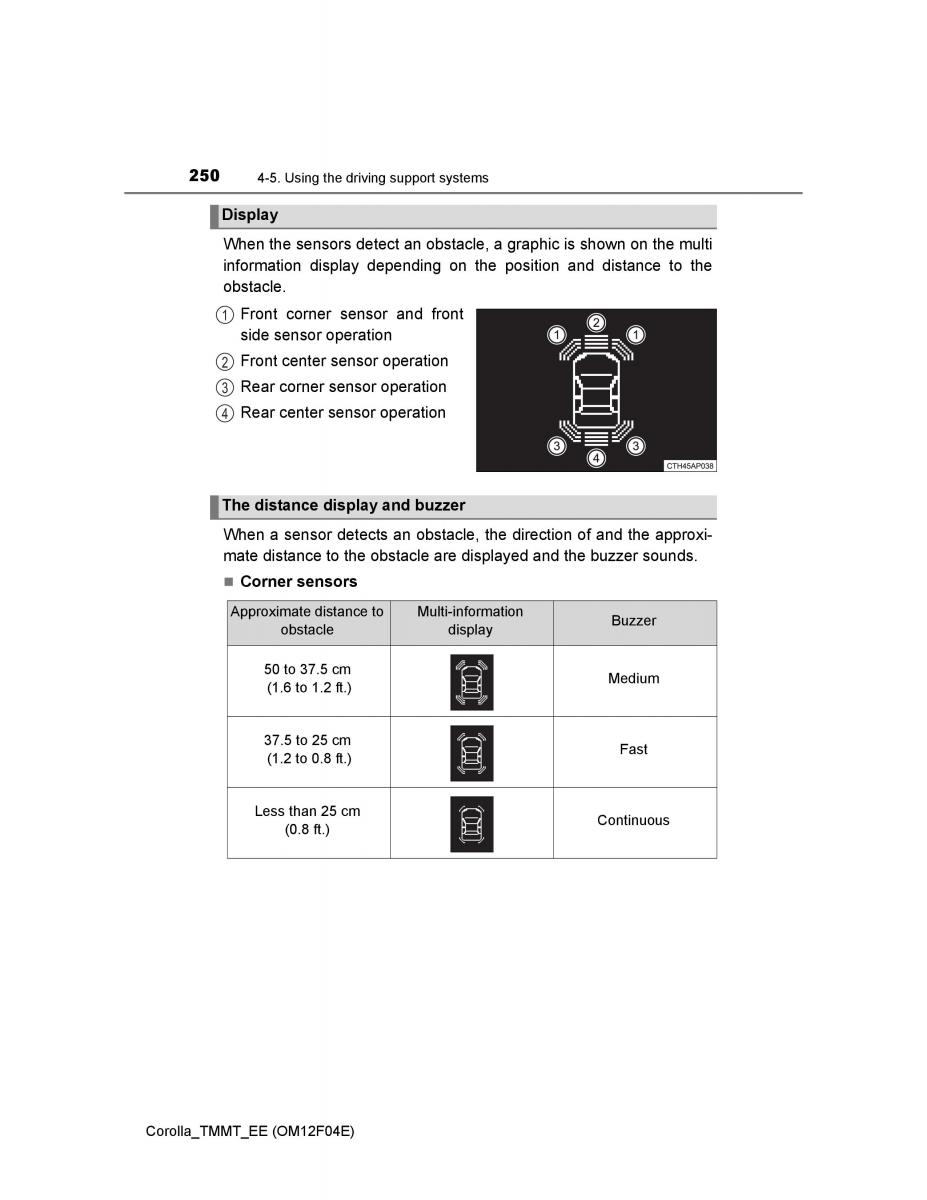

250 4-5. Using the driving support systems Display When the sensors detect an obstacle, a graphic is shown on the multi information display depending on the position and distance to the obstacle. 1 Front corner sensor and front side sensor operation 2 Front center sensor operation 3 Rear corner sensor operation 4 Rear center sensor operation The distance display and buzzer When a sensor detects an obstaclethe dire, ction of and the approxi- mate distance to the obstacle are displayed and the buzzer sounds.  Corner sensors Approximate distance to Multi-informationBuzzer obstacle display 50 to 37.5 cm Medium (1.6 to 1.2 ft.) 37.5 to 25 cm Fast (1.2 to 0.8 ft.) Less than 25 cm Continuous (0.8 ft.) Corolla_TMMT_EE (OM12F04E)
