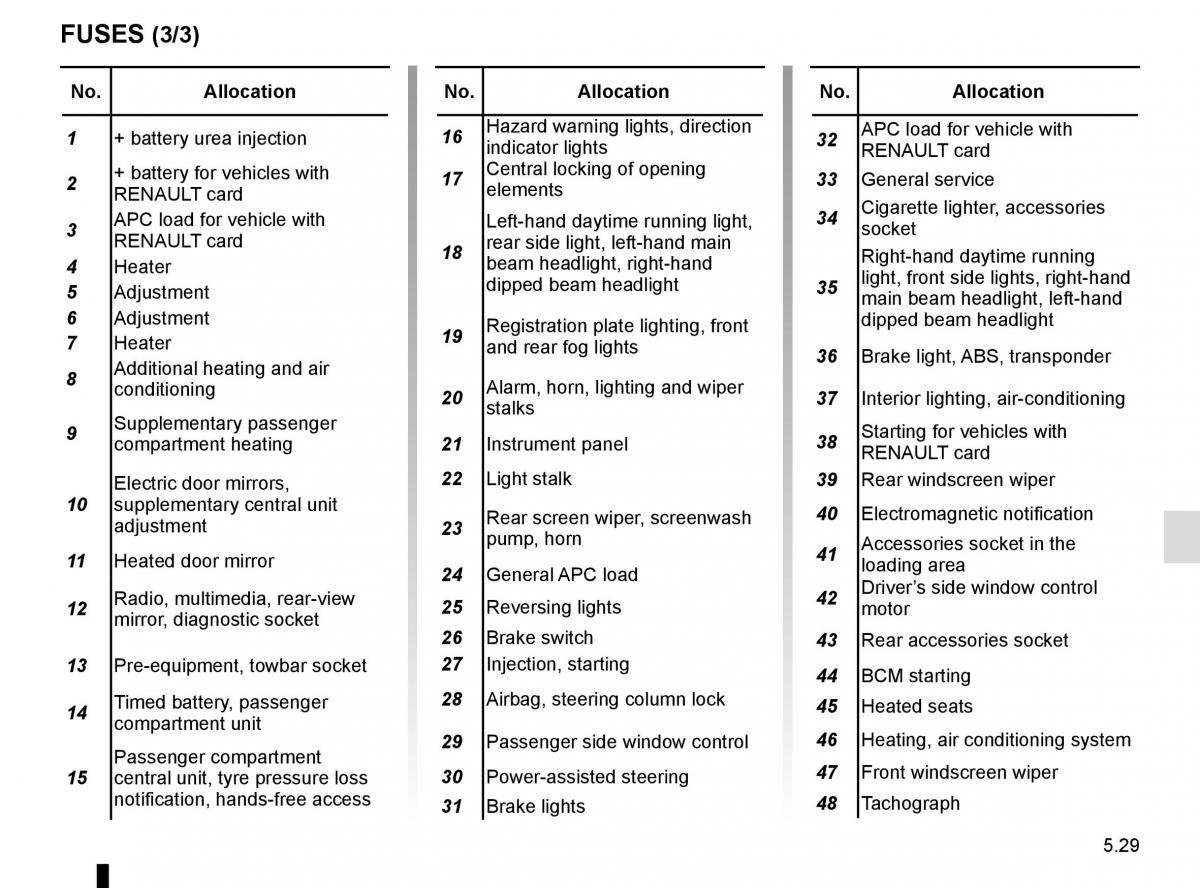

FUSES (3/3)
No. Allocation No. Allocation No. Allocation
1 + battery urea injection16Hazard warning lights, direction 32APC load for vehicle with
indicator lights RENAULT card
2 + battery for vehicles with 17Central locking of opening 33General service
RENAULT card elements Cigarette lighter, accessories
3 APC load for vehicle with Left-hand daytime running light, 34socket
RENAULT card 18rear side light, left-hand main Right-hand daytime running
4 Heater beam headlight, right-hand light, front side lights, right-hand
5 Adjustment dipped beam headlight35main beam headlight, left-hand
6 Adjustment 19Registration plate lighting, front dipped beam headlight
7 Heater and rear fog lights36Brake light, ABS, transponder
8 Additional heating and air Alarm, horn, lighting and wiper
conditioning 20stalks 37 Interior lighting, air-conditioning
9 Supplementary passenger Starting for vehicles with
compartment heating21Instrument panel38 RENAULT card
Electric door mirrors, 22Light stalk 39 Rear windscreen wiper
10supplementary central unit Rear screen wiper, screenwash 40Electromagnetic notification
adjustment 23pump, horn Accessories socket in the
11Heated door mirror 41 loading area
24General APC load Driver’s side window control
12Radio, multimedia, rear-view 25Reversing lights42motor
mirror, diagnostic socket26Brake switch
43 Rear accessories socket
13Pre-equipment, towbar socket27Injection, starting44BCM starting
14Timed battery, passenger 28Airbag, steering column lock45Heated seats
compartment unit 29Passenger side window control46Heating, air conditioning system
Passenger compartment 47 Front windscreen wiper
15central unit, tyre pressure loss 30Power-assisted steering
notification, hands-free access31Brake lights48Tachograph
5.29
