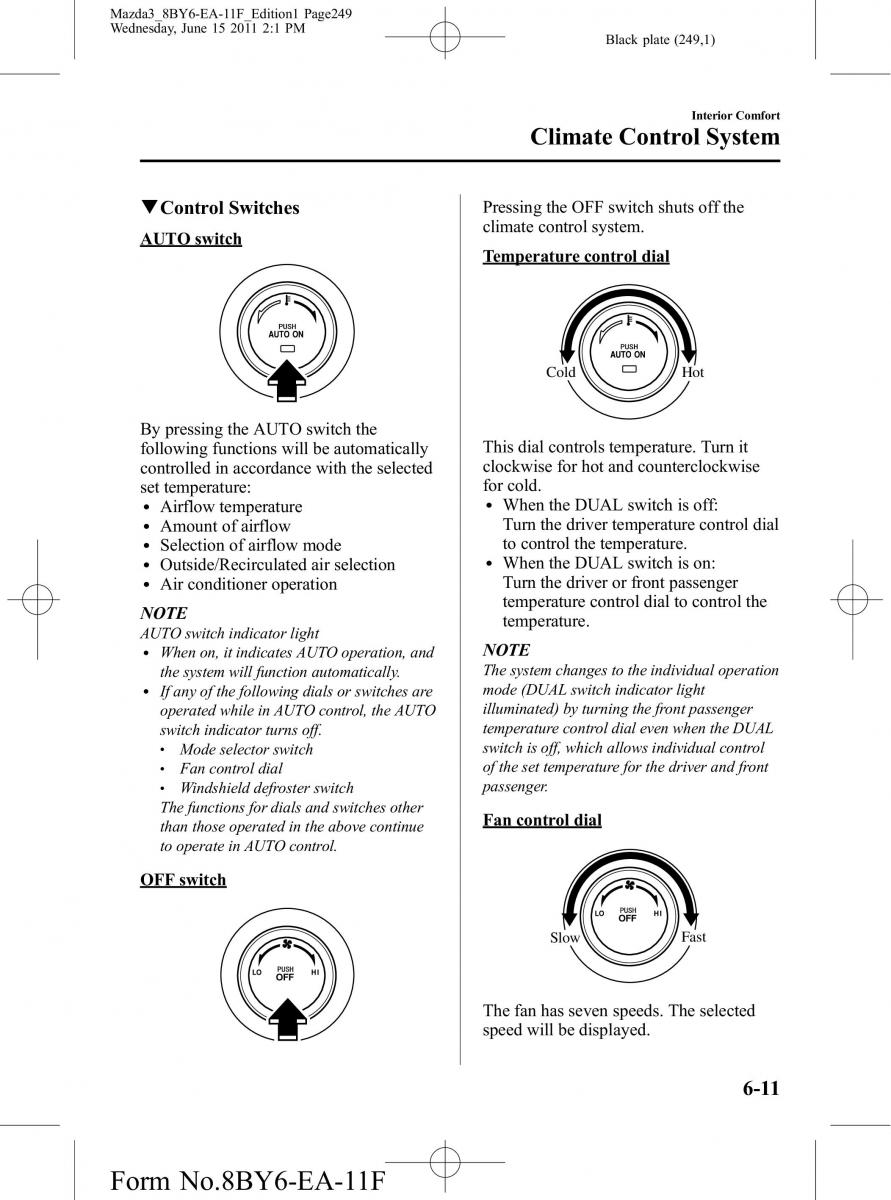

Mazda3_8BY6-EA-11F_Edition1 Page249
Wednesday, June 15 2011 2:1 PM
Black plate (249,1)
Interior Comfort
Climate Control System
qControlSwitches Pressing the OFF switch shuts off the
AUTOswitch climate control system.
Temperaturecontrol dial
Cold Hot
Bypressing the AUTO switch the
following functions will be automatically This dial controls temperature. Turn it
controlled in accordance with the selected clockwise for hot and counterclockwise
set temperature: for cold.
l Airflow temperature l WhentheDUALswitchisoff:
l Amountofairflow Turn the driver temperature control dial
l Selection of airflow mode to control the temperature.
l Outside/Recirculated air selection l WhentheDUALswitchison:
l Air conditioner operation Turn the driver or front passenger
NOTE temperature control dial to control the
AUTOswitchindicator light temperature.
l Whenon,itindicates AUTOoperation, and NOTE
the system will function automatically. The system changes to the individual operation
l If any of the following dials or switches are mode(DUALswitchindicator light
operated while in AUTO control, the AUTO illuminated) by turning the front passenger
switch indicator turns off. temperature control dial even when the DUAL
l Modeselector switch switch is off, which allows individual control
l Fancontrol dial of the set temperature for the driver and front
l Windshield defroster switch passenger.
The functions for dials and switches other Fancontrol dial
than those operated in the above continue
to operate in AUTO control.
OFFswitch
Slow Fast
Thefan has seven speeds. The selected
speed will be displayed.
6-11
Form No.8BY6-EA-11F
