text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:
If and when247

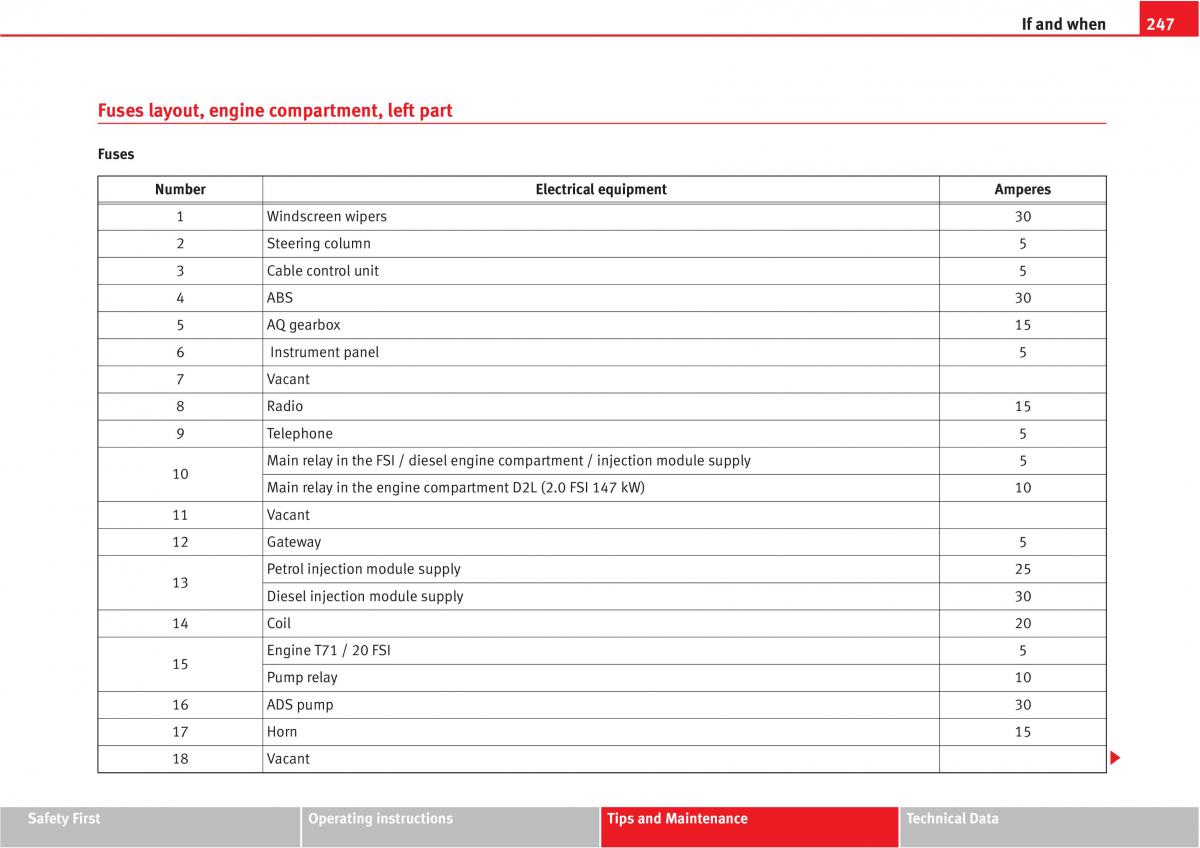

Fuses layout, engine compartment, left part
Fuses
Number Electrical equipment Amperes
1 Windscreen wipers 30
2 Steering column 5
3 Cable control unit 5
4ABS 30
5 AQ gearbox 15
6 Instrument panel 5
7 Vacant
8Radio 15
9 Telephone 5
Main relay in the FSI / diesel engine compartment / injection module supply5
10
Main relay in the engine compartment D2L (2.0 FSI 147 kW)10
11 Vacant
12 Gateway 5
Petrol injection module supply 25
13
Diesel injection module supply 30
14 Coil 20
Engine T71 / 20 FSI 5
15
Pump relay 10
16 ADS pump 30
17 Horn 15
18 Vacant
Safety First Operating instructionsTips and MaintenanceTechnical Data
