AURIS_UK_12E58E.book 249 ページ 㧞㧜㧝㧝年㧝月㧞㧝日 金曜日 午前９時４７分

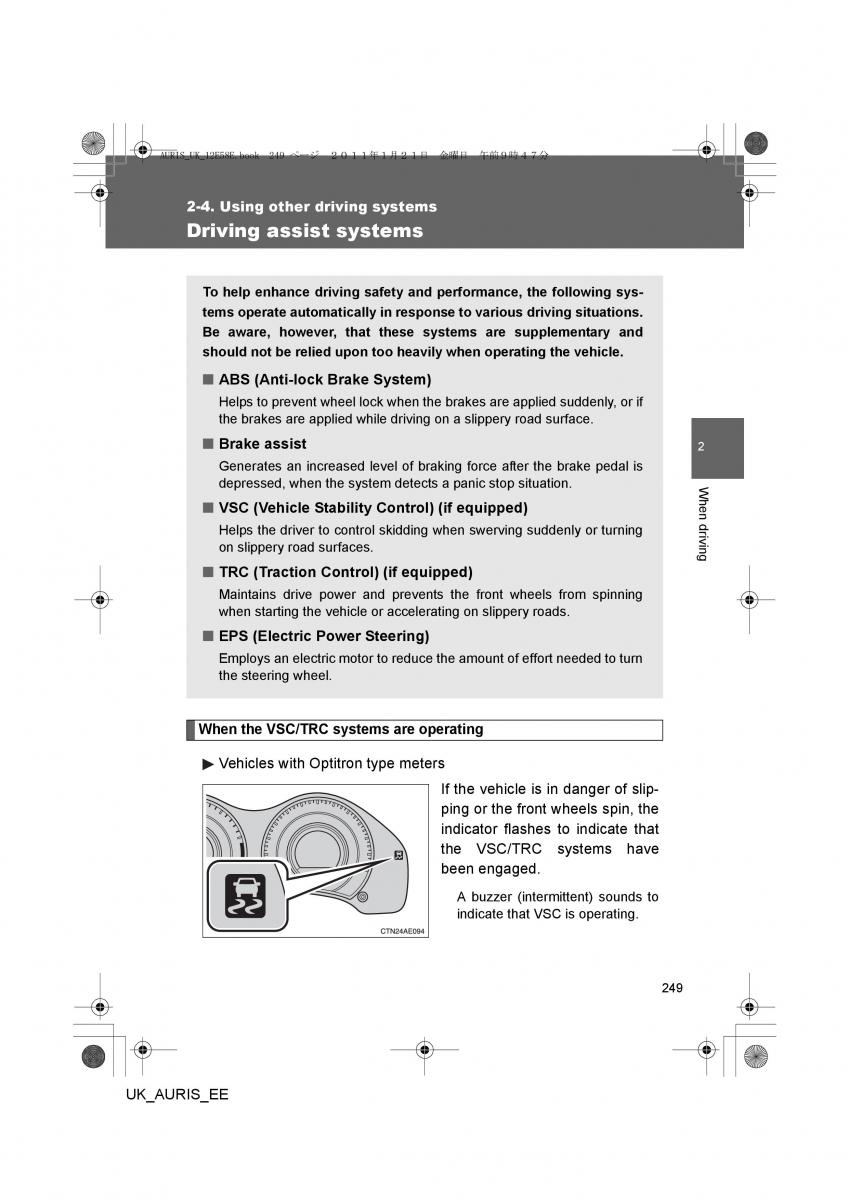

2-4. Using other driving systems
Driving assist systems
To help enhance driving safety and performance, the following sys-
tems operate automatically in resp onse to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehicle.
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
■Brake assist 2
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation. Wh
■VSC (Vehicle Stability Control) (if equipped) en d
Helps the driver to control skidding when swerving suddenly or turningr
iv
on slippery road surfaces. in
■TRC (Traction Control) (if equipped) g
Maintains drive power and prevents the front wheels from spinning
when starting the vehicle or accelerating on slippery roads.
■EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel.
When the VSC/TRC systems are operating
Vehicles with Optitron type meters
If the vehicle is in danger of slip-
ping or the front wheels spin, the
indicator flashes to indicate that
the VSC/TRC systems have
been engaged.
A buzzer (intermittent) sounds to
indicate that VSC is operating.
249
UK_AURIS_EE
