text version of content this owner's manual page from owners manual to the vehicle Seat Arona, year of production 2017:

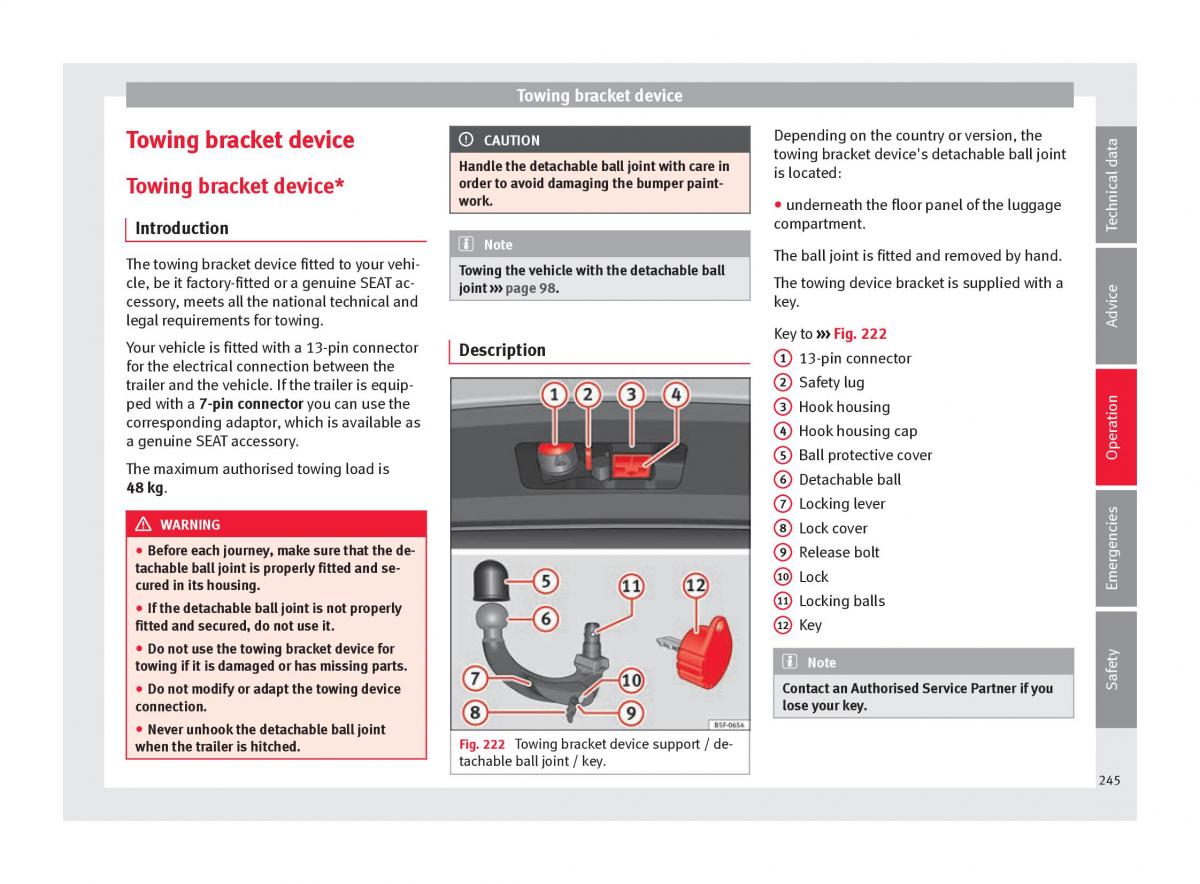

Towing bracket device Depending on the country or version, the CAUTION a Towing bracket device o ing bracket device's detachable ball jointat t w Handle the detachable ball joint with care in d is located: al order to avoid damaging the bumper paint- Towing bracket device* work. ●underneath the floor panel of the luggagehnic ec compartment. T Introduction Note The ball joint is fitted and removed by hand. The towing bracket device fitted to your vehi- Towing the vehicle with the detachable ball cle, be it factory-fitted or a genuine SEAT ac- The towing device bracket is supplied with a joint ››› page 98. e ic cessory, meets all the national technical and key. legal requirements for towing. Adv Key to ››› Fig. 222 Your vehicle is fitted with a 13-pin connector Description 1 13-pin connector for the electrical connection between the 2 Safety lug trailer and the vehicle. If the trailer is equip- ped with a 7-pin connector you can use the 3 Hook housing corresponding adaptor, which is available as ation 4 Hook housing cap a genuine SEAT accessory. 5 Ball protective cover Oper The maximum authorised towing load is 6 Detachable ball 48 kg. 7 Locking lever s ie WARNING 8 Lock cover enc ● Before each journey, make sure that the de- 9 Release bolt g tachable ball joint is properly fitted and se- 10 Lock cured in its housing. Emer 11 Locking balls ● If the detachable ball joint is not properly fitted and secured, do not use it. 12 Key ● Do not use the towing bracket device for Note ety towing if it is damaged or has missing parts. Saf ● Do not modify or adapt the towing device Contact an Authorised Service Partner if you connection. lose your key. ● Never unhook the detachable ball joint Fig. 222 Towing bracket device support / de- when the trailer is hitched. tachable ball joint / key. 245
