text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

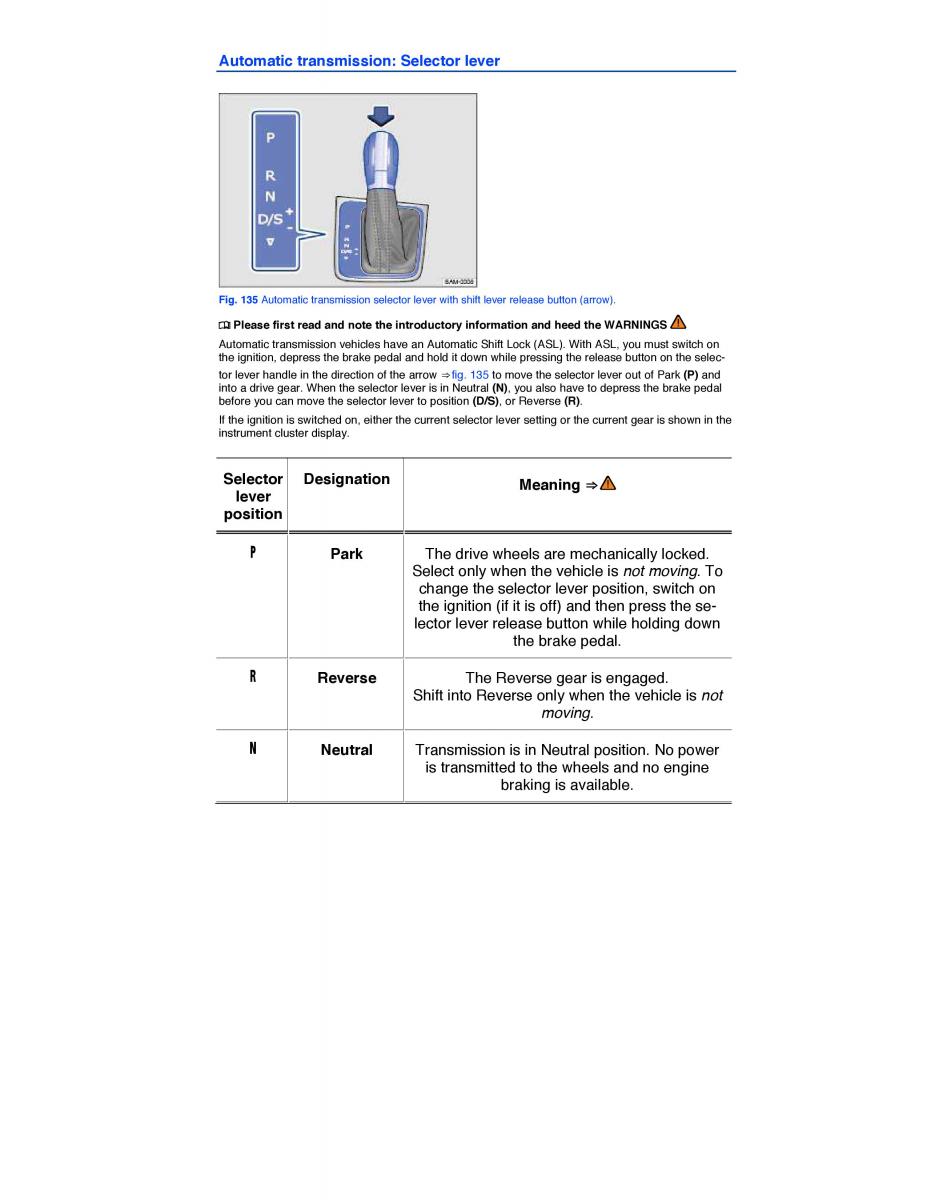

Automatic transmission: Selector lever Fig. 135 Automatic transmission selector lever with shift lever release button (arrow). ¤ Please first read and note the introductory information and heed the WARNINGS Automatic transmission vehicles have an Automatic Shift Lock (ASL). With ASL, you must switch on the ignition, depress the brake pedal and hold it down while pressing the release button on the selec- tor lever handle in the direction of the arrow ⇒ fig. 135 to move the selector lever out of Park (P) and into a drive gear. When the selector lever is in Neutral (N), you also have to depress the brake pedal before you can move the selector lever to position (D/S), or Reverse (R). If the ignition is switched on, either the current selector lever setting or the current gear is shown in the instrument cluster display. Selector Designation Meaning ⇒ lever position 0 Park The drive wheels are mechanically locked. Select only when the vehicle is not moving. To change the selector lever position, switch on the ignition (if it is off) and then press the se- lector lever release button while holding down the brake pedal. 2 Reverse The Reverse gear is engaged. Shift into Reverse only when the vehicle is not moving. . Neutral Transmission is in Neutral position. No power is transmitted to the wheels and no engine braking is available.
