owners manual Seat Ibiza

all ratings: 0 average rating: 5

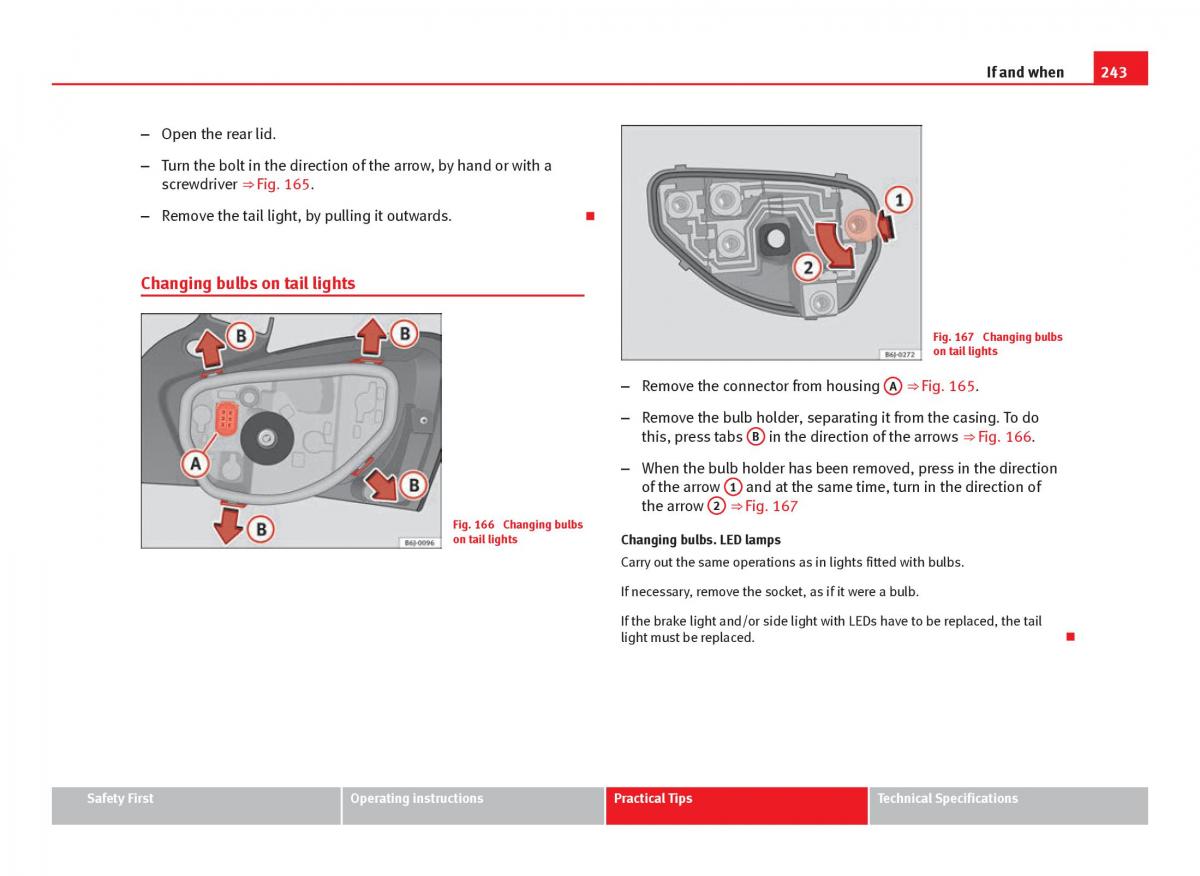

If and when 243 – Open the rear lid. – Turn the bolt in the direction of the arrow, by hand or with a screwdriver ⇒ Fig. 165.  – Remove the tail light, by pulling it outwards. Changing bulbs on tail lights Fig. 167 Changing bulbs on tail lights – Remove the connector from housing A ⇒ Fig. 165. – Remove the bulb holder, separating it from the casing. To do this, press tabs B in the direction of the arrows ⇒ Fig. 166. – When the bulb holder has been removed, press in the direction of the arrow 1 and at the same time, turn in the direction of the arrow 2 ⇒ Fig. 167 Fig. 166 Changing bulbs on tail lights Changing bulbs. LED lamps Carry out the same operations as in lights fitted with bulbs. If necessary, remove the socket, as if it were a bulb. If the brake light and/or side light with LEDs have to be replaced, the tail  light must be replaced. Safety First Operating instructions Practical Tips Technical Specifications
