text version of content this owner's manual page from owners manual to the vehicle Ford F-150, year of production 2003 - 2008:

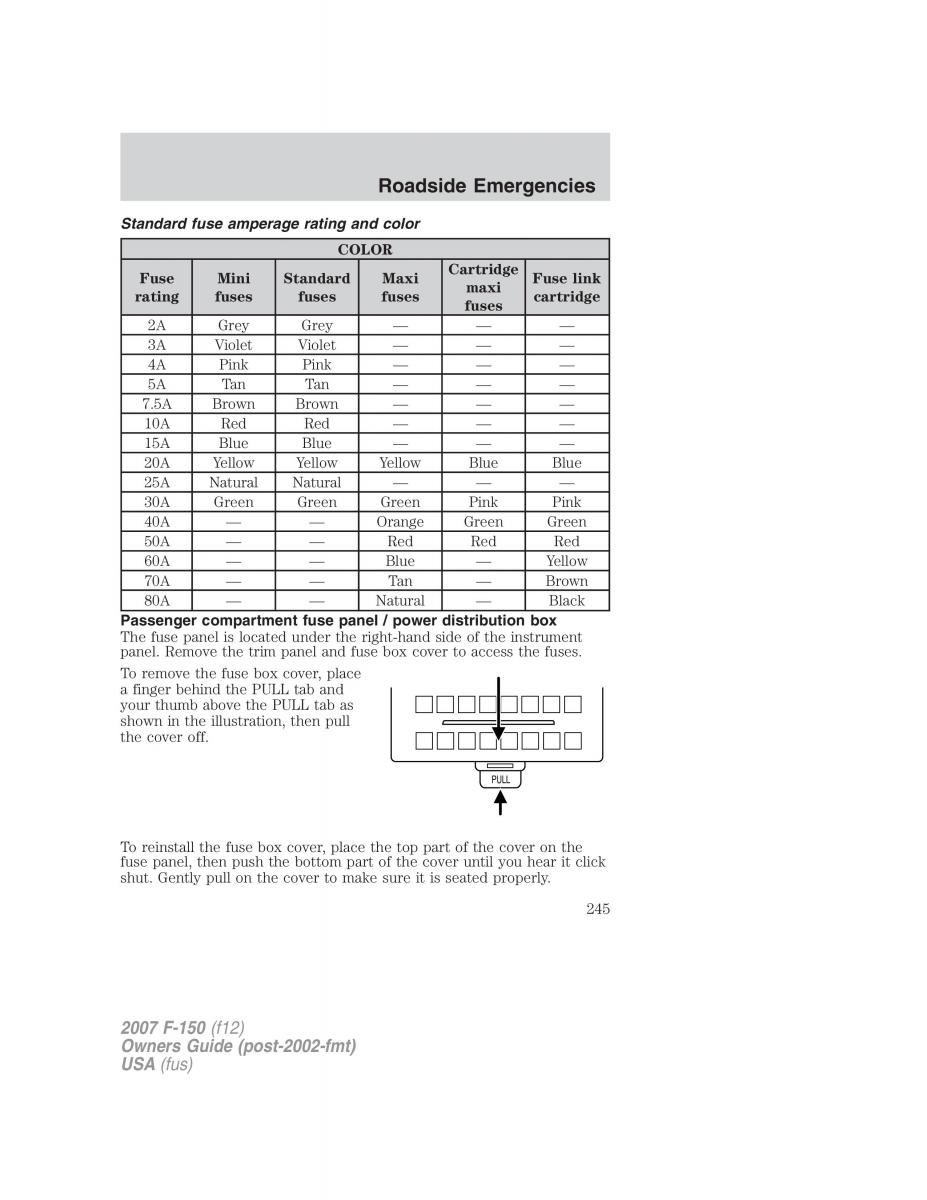

Roadside Emergencies Standard fuse amperage rating and color COLOR Fuse MiniStandardMaxiCartridge Fuse link ratingfusesfusesfuses maxicartridge fuses 2A Grey Grey — — — 3A VioletViolet— — — 4A Pink Pink — — — 5A Tan Tan — — — 7.5A BrownBrown — — — 10A Red Red — — — 15A Blue Blue — — — 20A YellowYellowYellowBlueBlue 25A NaturalNatural— — — 30A GreenGreen Green Pink Pink 40A — — OrangeGreenGreen 50A — — Red Red Red 60A — — Blue — Yellow 70A — — Tan — Brown 80A — — Natural— Black Passenger compartment fuse panel / power distribution box The fuse panel is located under the right-hand side of the instrument panel. Remove the trim panel and fuse box cover to access the fuses. To remove the fuse box cover, place a finger behind the PULL tab and your thumb above the PULL tab as shown in the illustration, then pull the cover off. To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly. 245 2007 F-150 (f12) Owners Guide (post-2002-fmt) USA(fus)
