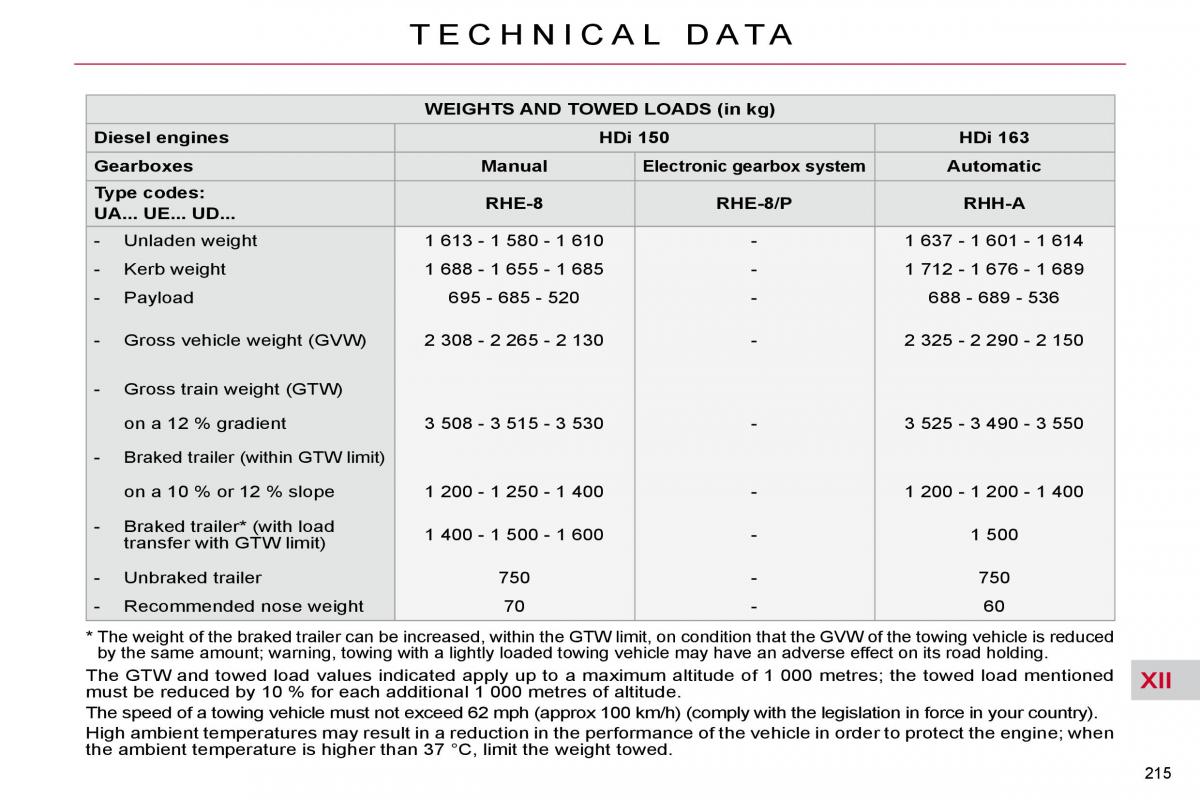

TECHNICAL DATA
W EIGHTS AND TOWED LOADS (in kg)
D iesel engines H Di 150 H Di 163
G earbox es Ma nual E lectronic gearbox system A utomatic
T ype codes: R HE-8 R HE-8/P R HH-A
UA. UE. UD.
- Unladen weight 1 613 - 1 580 - 1 610 - 1 637 - 1 601 - 1 614
- Kerb weight 1 688 - 1 655 - 1 685 - 1 712 - 1 676 - 1 689
- Payload 6 95 - 685 - 520 - 6 88 - 689 - 536
- Gross vehicle weight (GVW) 2 308 - 2 265 - 2 130 - 2 325 - 2 290 - 2 150
- Gross train weight (GTW)
on a 12 % gradient 3 508 - 3 515 - 3 530 - 3 525 - 3 490 - 3 550
- Braked trailer (within GTW limit)
on a 10 % or 12 % slope 1 200 - 1 250 - 1 400 - 1 200 - 1 200 - 1 400
- Braked trailer * (with load
1 400 - 1 500 - 1 600 - 1 500
transfer with GTW limit)
- Unbraked trailer 7 50 - 7 50
- Recommended nose weight 7 0 - 6 0
* T he weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned XII
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 62 mph (approx 100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
215
