owners manual Ford Mustang

all ratings: 0 average rating: 5

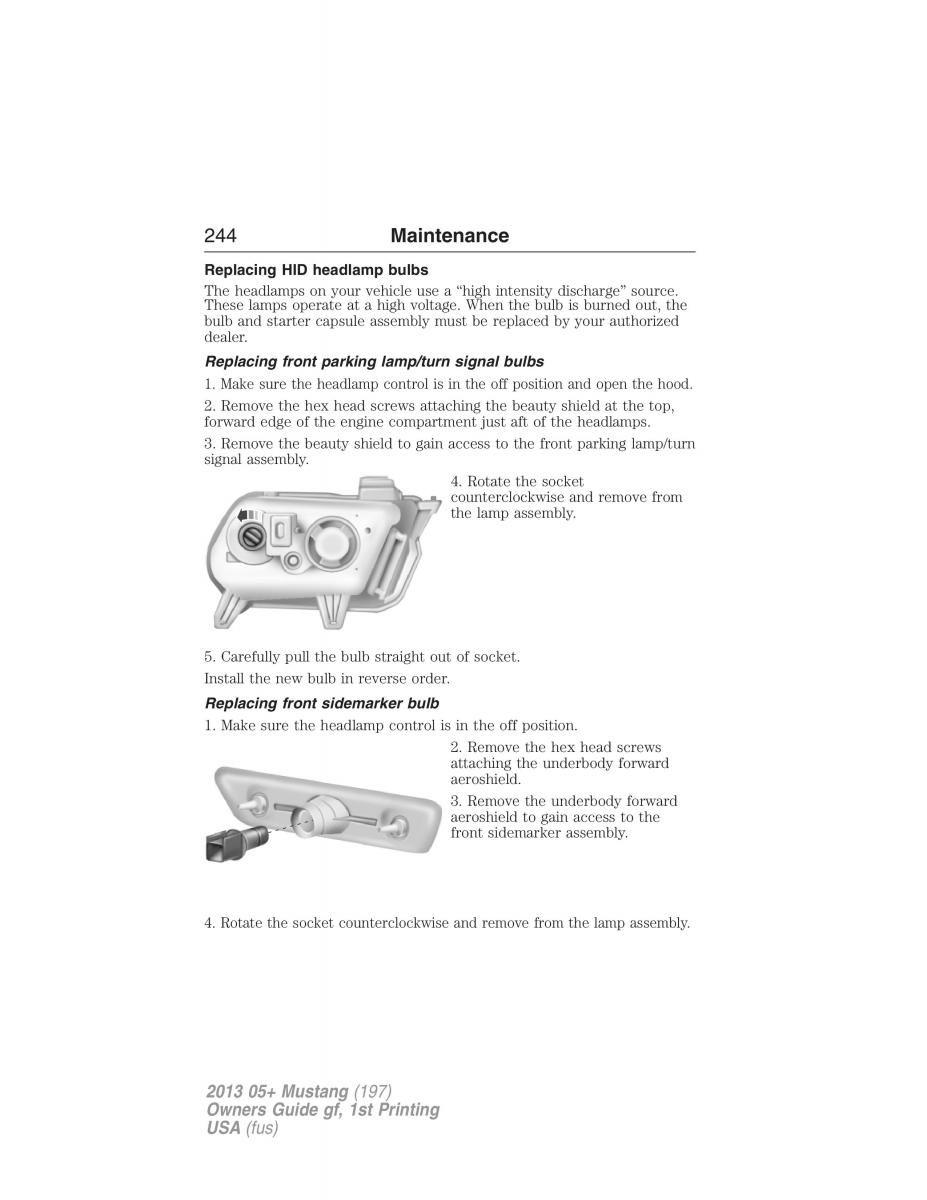

244 Maintenance Replacing HID headlamp bulbs The headlamps on your vehicle use a “high intensity discharge” source. These lamps operate at a high voltage. When the bulb is burned out, the bulb and starter capsule assembly must be replaced by your authorized dealer. Replacing front parking lamp/turn signal bulbs 1. Make sure the headlamp control is in the off position and open the hood. 2. Remove the hex head screws attaching the beauty shield at the top, forward edge of the engine compartment just aft of the headlamps. 3. Remove the beauty shield to gain access to the front parking lamp/turn signal assembly. 4. Rotate the socket counterclockwise and remove from the lamp assembly. 5. Carefully pull the bulb straight out of socket. Install the new bulb in reverse order. Replacing front sidemarker bulb 1. Make sure the headlamp control is in the off position. 2. Remove the hex head screws attaching the underbody forward aeroshield. 3. Remove the underbody forward aeroshield to gain access to the front sidemarker assembly. 4. Rotate the socket counterclockwise and remove from the lamp assembly. 2013 05+ Mustang (197) Owners Guide gf, 1st Printing USA(fus)
