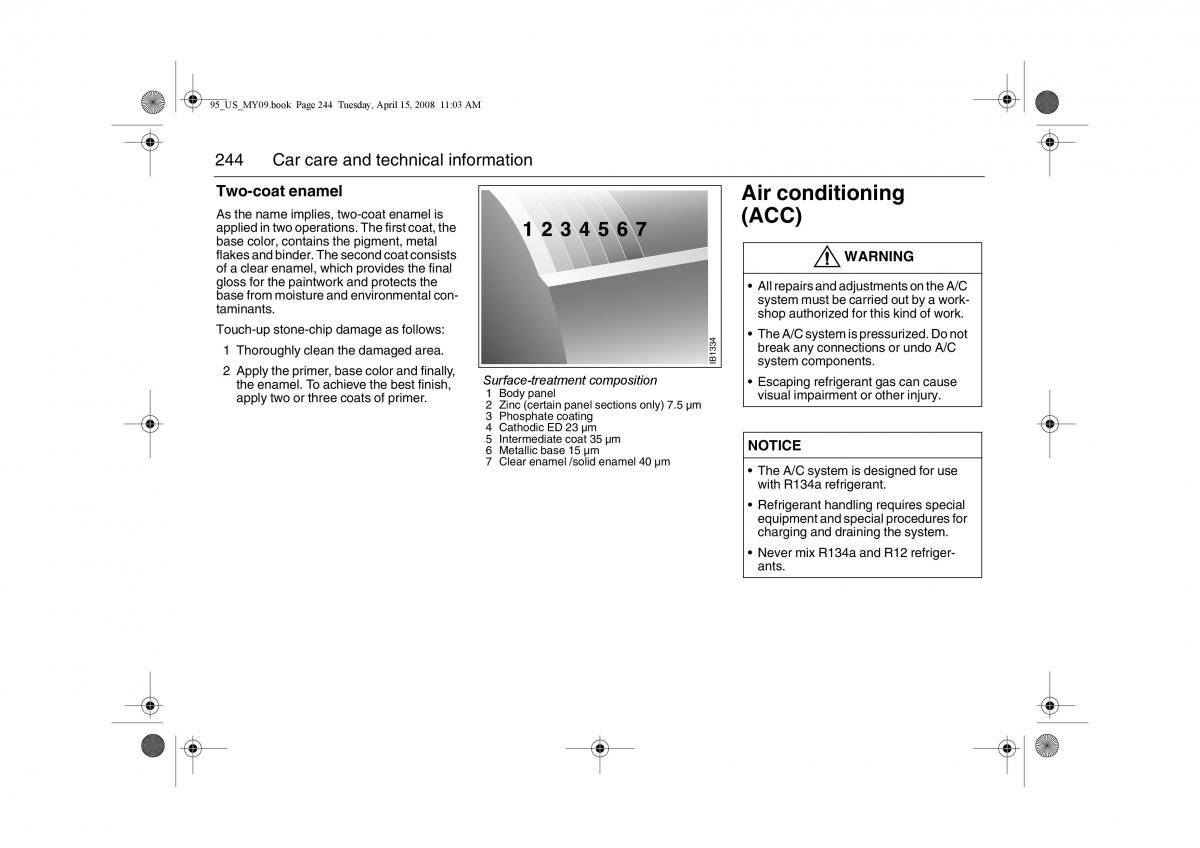

95_US_MY09.book Page 244 Tuesday, April 15, 2008 11:03 AM
244 Car care and technical information
Two-coat enamel Air conditioning
As the name implies, two-coat enamel is (ACC)
applied in two operations. The first coat, the
base color, contains the pigment, metal
flakes and binder. The second coat consists WARNING
of a clear enamel, which provides the final
gloss for the paintwork and protects the • All repairs and adjustments on the A/C
base from moisture and environmental con- system must be carried out by a work-
taminants. shop authorized for this kind of work.
Touch-up stone-chip damage as follows: • The A/C system is pressurized. Do not
1 Thoroughly clean the damaged area. break any connections or undo A/C
IB1334system components.
2 Apply the primer, base color and finally, Surface-treatment composition • Escaping refrigerant gas can cause
the enamel. To achieve the best finish, 1 Body panel visual impairment or other injury.
apply two or three coats of primer.2 Zinc (certain panel sections only) 7.5 µm
3 Phosphate coating
4 Cathodic ED 23 µm
5 Intermediate coat 35 µm NOTICE
6 Metallic base 15 µm
7 Clear enamel /solid enamel 40 µm • The A/C system is designed for use
with R134a refrigerant.
• Refrigerant handling requires special
equipment and special procedures for
charging and draining the system.
• Never mix R134a and R12 refriger-
ants.
