text version of content this owner's manual page from owners manual to the vehicle Hyundai i10, year of production 2007 - 2013:

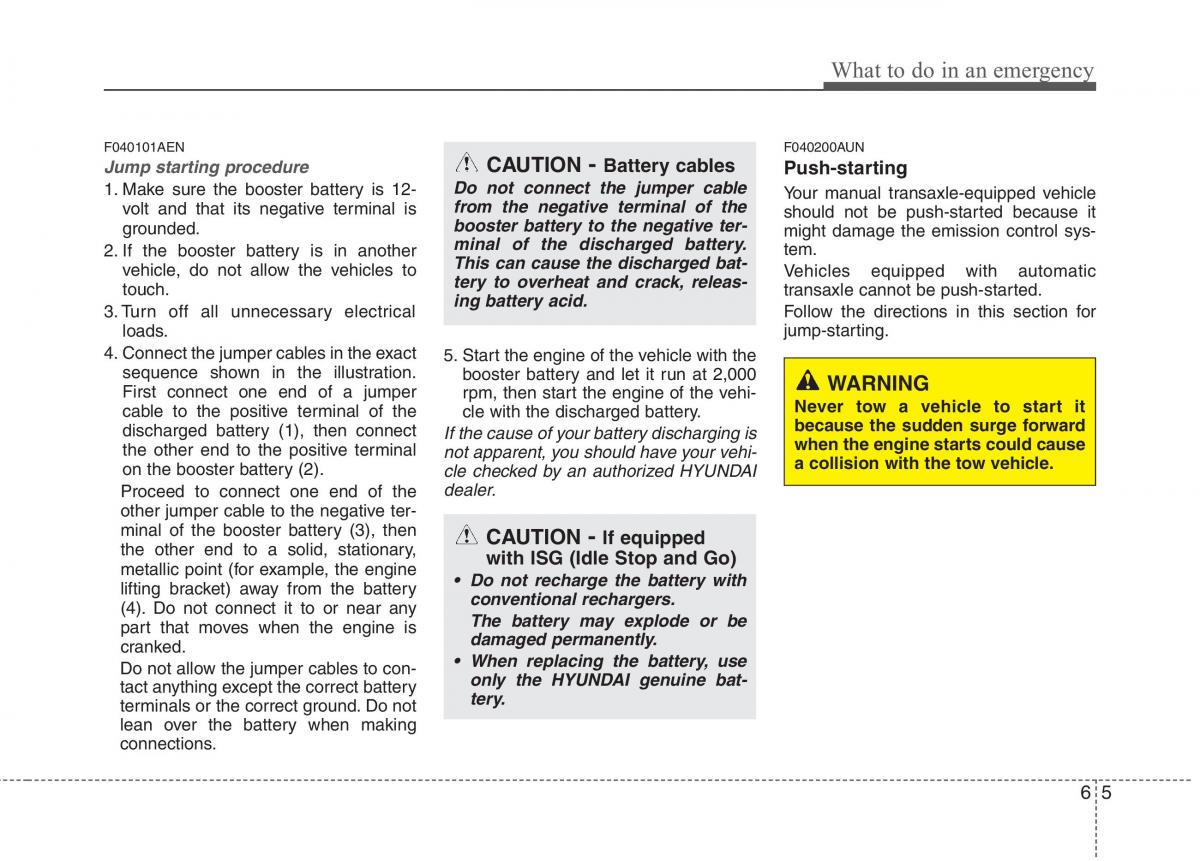

What to do in an emergency F040101AEN F040200AUN Jump starting procedure CAUTION - Battery cables Push-starting Do not connect the jumper cable 1. Make sure the booster battery is 12- Your manual transaxle-equipped vehicle from the negative terminal of the volt and that its negative terminal is should not be push-started because it grounded. booster battery to the negative ter- might damage the emission control sys- minal of the discharged battery. tem. 2. If the booster battery is in another This can cause the discharged bat- vehicle, do not allow the vehicles to Vehicles equipped with automatic touch. tery to overheat and crack, releas- ing battery acid. transaxle cannot be push-started. 3.Turn off all unnecessary electrical Follow the directions in this section for loads. jump-starting. 4. Connect the jumper cables in the exact5. Start the engine of the vehicle with the sequence shown in the illustration. booster battery and let it run at 2,000 WARNING First connect one end of a jumper rpm, then start the engine of the vehi- cable to the positive terminal of the Never tow a vehicle to start it cle with the discharged battery. discharged battery (1), then connect because the sudden surge forward If the cause of your battery discharging iswhen the engine starts could cause the other end to the positive terminal not apparent, you should have your vehi-a collision with the tow vehicle. on the booster battery (2). cle checked by an authorized HYUNDAI dealer. Proceed to connect one end of the other jumper cable to the negative ter- minal of the booster battery (3), then CAUTION - If equipped the other end to a solid, stationary, metallic point (for example, the enginewith ISG (Idle Stop and Go) Do not recharge the battery with lifting bracket) away from the battery conventional rechargers. (4). Do not connect it to or near any The battery may explode or be part that moves when the engine is cranked. damaged permanently. Do not allow the jumper cables to con- When replacing the battery, use tact anything except the correct batteryonly the HYUNDAI genuine bat- terminals or the correct ground. Do nottery. lean over the battery when making connections. 65
