text version of content this owner's manual page from owners manual to the vehicle Hyundai Grandeur, year of production 2005 - 2011:

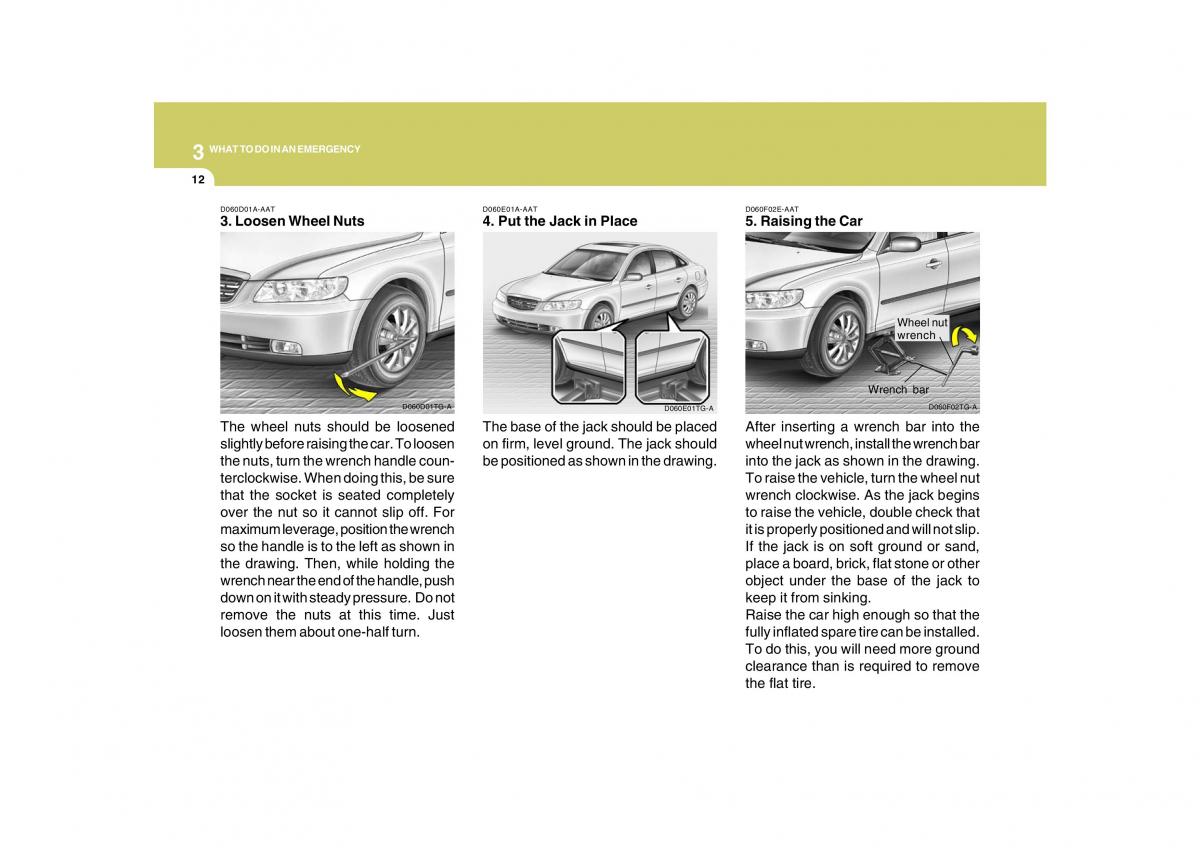

WHAT TO DO IN AN EMERGENCY 3 12 D060D01A-AAT D060E01A-AAT D060F02E-AAT 3. Loosen Wheel Nuts 4. Put the Jack in Place 5. Raising the Car Wheel nut wrench Wrench bar D060D01TG-A D060E01TG-A D060F02TG-A The wheel nuts should be loosenedThe base of the jack should be placed After inserting a wrench bar into the slightly before raising the car. To loosen on firm, level ground. The jack should wheel nut wrench, install the wrench bar the nuts, turn the wrench handle coun- be positioned as shown in the drawing. into the jack as shown in the drawing. terclockwise. When doing this, be sure To raise the vehicle, turn the wheel nut that the socket is seated completely wrench clockwise. As the jack begins over the nut so it cannot slip off. For to raise the vehicle, double check that maximum leverage, position the wrench it is properly positioned and will not slip. so the handle is to the left as shown in If the jack is on soft ground or sand, the drawing. Then, while holding the place a board, brick, flat stone or other wrench near the end of the handle, push object under the base of the jack to down on it with steady pressure. Do not keep it from sinking. remove the nuts at this time. JustRaise the car high enough so that the loosen them about one-half turn. fully inflated spare tire can be installed. To do this, you will need more ground clearance than is required to remove the flat tire.
