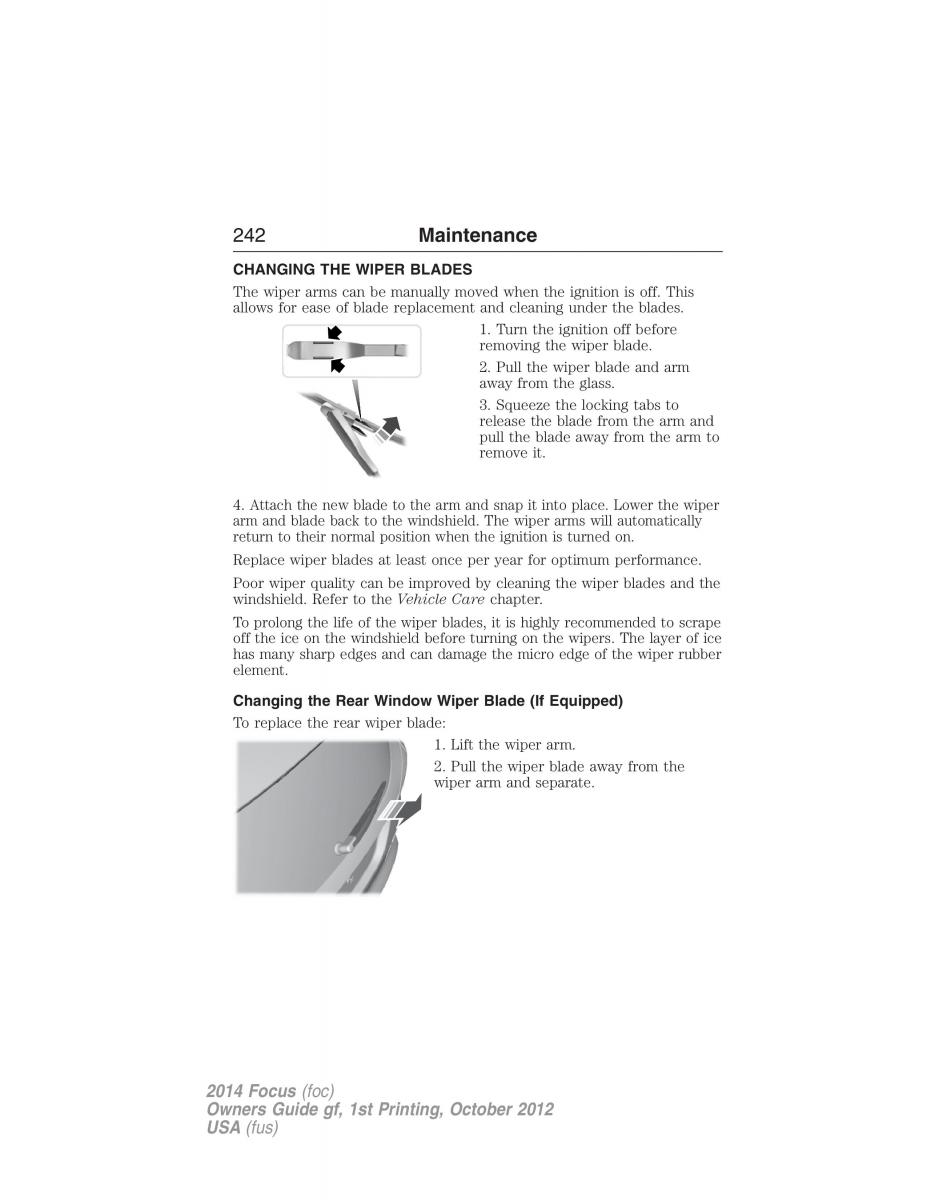

242 Maintenance
CHANGINGTHEWIPERBLADES
The wiper arms can be manually moved when the ignition is off. This
allows for ease of blade replacement and cleaning under the blades.
1. Turn the ignition off before
removing the wiper blade.
2. Pull the wiper blade and arm
away from the glass.
3. Squeeze the locking tabs to
release the blade from the arm and
pull the blade away from the arm to
remove it.
4. Attach the new blade to the arm and snap it into place. Lower the wiper
arm and blade back to the windshield. The wiper arms will automatically
return to their normal position when the ignition is turned on.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer to the Vehicle Care chapter.
To prolong the life of the wiper blades, it is highly recommended to scrape
off the ice on the windshield before turning on the wipers. The layer of ice
has many sharp edges and can damage the micro edge of the wiper rubber
element.
Changing the Rear Window Wiper Blade (If Equipped)
To replace the rear wiper blade:
1. Lift the wiper arm.
2. Pull the wiper blade away from the
wiper arm and separate.
2014 Focus (foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
