owners manual Mitsubishi Outlander

owners manual Mitsubishi Outlander - year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 - Mitsubishi Outlander II 2 owners manual EN

Document: pdf (23.76 MB) 544 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

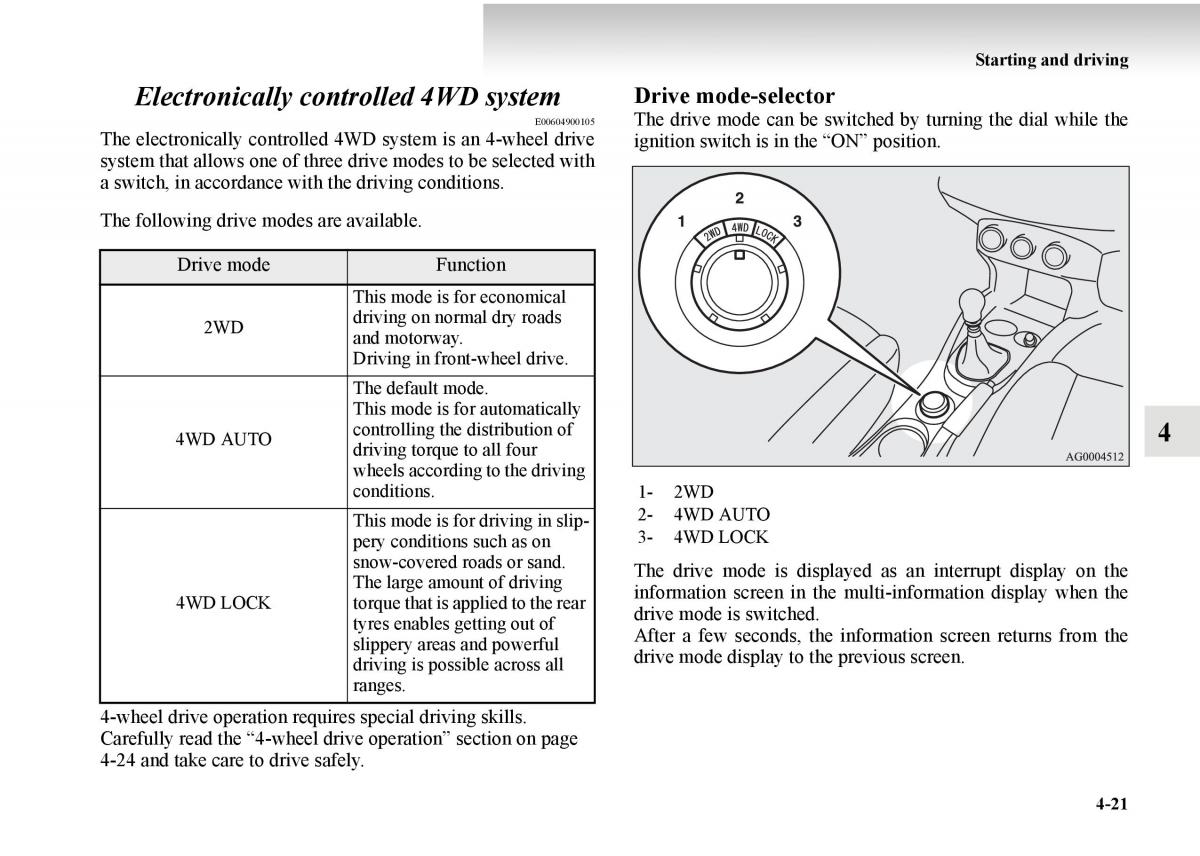

Starting and driving Electronically controlled 4WD system Drive mode-selector E00604900105 The drive mode can be switched by turning the dial while the The electronically controlled 4WD system is an 4-wheel drive ignition switch is in the “ON” position. system that allows one of three drive modes to be selected with a switch, in accordance with the driving conditions. The following drive modes are available. Drive mode Function This mode is for economical 2WD driving on normal dry roads and motorway. Driving in front-wheel drive. The default mode. This mode is for automatically 4WD AUTO controlling the distribution of 4 driving torque to all four wheels according to the driving conditions. 1- 2WD This mode is for driving in slip- 2- 4WD AUTO pery conditions such as on 3- 4WD LOCK snow-covered roads or sand. The drive mode is displayed as an interrupt display on the The large amount of driving information screen in the multi-information display when the 4WD LOCK torque that is applied to the rear drive mode is switched. tyres enables getting out of After a few seconds, the information screen returns from the slippery areas and powerful drive mode display to the previous screen. driving is possible across all ranges. 4-wheel drive operation requires special driving skills. Carefully read the “4-wheel drive operation” section on page 4-24 and take care to drive safely. 4-21
