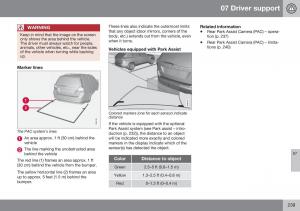

07 Driver support
These lines also indicate the outermost limitsRelated information
WARNING
that any object (door mirrors, corners of theRear Park Assist Camera (PAC) – opera-
•
Keep in mind that the image on the screen
body, etc.) extends out from the vehicle, evention (p. 237)
only shows the area behind the vehicle.
when it turns.
• Rear Park Assist Camera (PAC) – limita-
The driver must always watch for people,
tions (p. 240)
animals, other vehicles, etc., near the sides
Vehicles equipped with Park Assist
of the vehicle when turning while backing
up.
Marker lines
Colored markers (one for each sensor) indicate
distance
If the vehicle is equipped with the optional
Park Assist system (see Park assist – intro-
The PAC system's lines
duction (p. 232)), the distance to an object
An area approx. 1 ft (30 cm) behind thewill be indicated more exactly and colored
vehicle markers in the display indicate which of the
sensor(s) has detected the object.
The line marking the unobstructed area
07
behind the vehicle
Color Distance to object
The red line (1) frames an area approx. 1 ft
(30 cm) behind the vehicle from the bumper.
Green 2.5–5 ft (0.8–1.5 m)
The yellow horizontal line (2) frames an area
Yellow 1.3–2.5 ft (0.4–0.8 m)
up to approx. 5 feet (1.5 m) behind the
bumper.
Red 0–1.3 ft (0–0.4 m)
239
