text version of content this owner's manual page from owners manual to the vehicle Mercedes SLK, year of production 2004 - 2011:

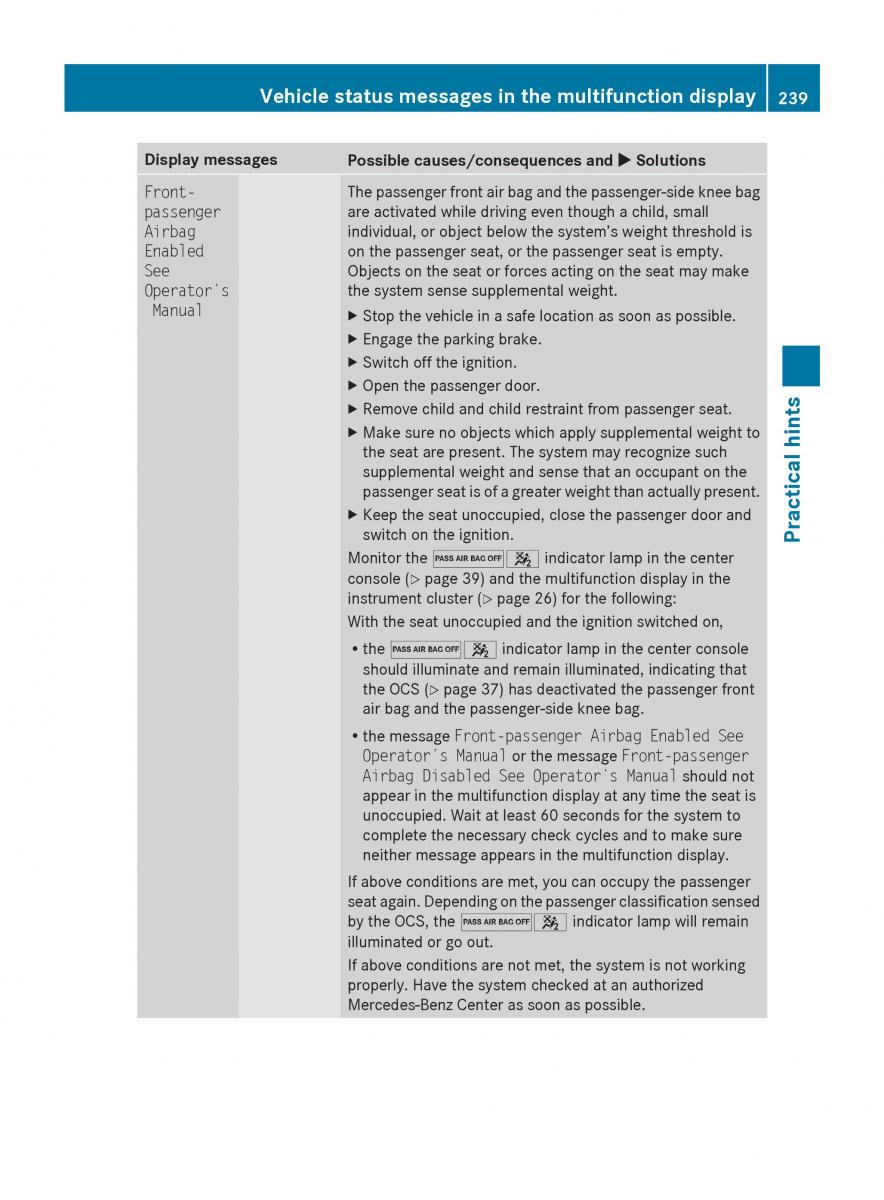

171_AKB; 3; 60, en-US 2009-05-11T16:00:23+02:00 - Seite 239 d2ureepe, Version: 2.11.8.1 Vehicle status messages in the multifunction display 239 Display messages Possible causes/consequences and X Solutions Front- The passenger front air bag and the passenger-side knee bag passenger are activated while driving even though a child, small Airbag individual, or object below the system’s weight threshold is Enabled on the passenger seat, or the passenger seat is empty. See Objects on the seat or forces acting on the seat may make Operator’s the system sense supplemental weight. Manual XStop the vehicle in a safe location as soon as possible. XEngage the parking brake. XSwitch off the ignition. XOpen the passenger door. XRemove child and child restraint from passenger seat. XMake sure no objects which apply supplemental weight to the seat are present. The system may recognize such supplemental weight and sense that an occupant on the passenger seat is of a greater weight than actually present. XKeep the seat unoccupied, close the passenger door and switch on the ignition. Practical hints Monitor the 04 indicator lamp in the center console (Y page 39) and the multifunction display in the instrument cluster (Y page 26) for the following: With the seat unoccupied and the ignition switched on, R the 04 indicator lamp in the center console should illuminate and remain illuminated, indicating that the OCS (Y page 37) has deactivated the passenger front air bag and the passenger-side knee bag. R the message Front-passenger Airbag Enabled See Operator’s Manual or the message Front-passenger Airbag Disabled See Operator’s Manual should not appear in the multifunction display at any time the seat is unoccupied. Wait at least 60 seconds for the system to complete the necessary check cycles and to make sure neither message appears in the multifunction display. If above conditions are met, you can occupy the passenger seat again. Depending on the passenger classification sensed by the OCS, the 04 indicator lamp will remain illuminated or go out. If above conditions are not met, the system is not working properly. Have the system checked at an authorized Mercedes-Benz Center as soon as possible. Z
