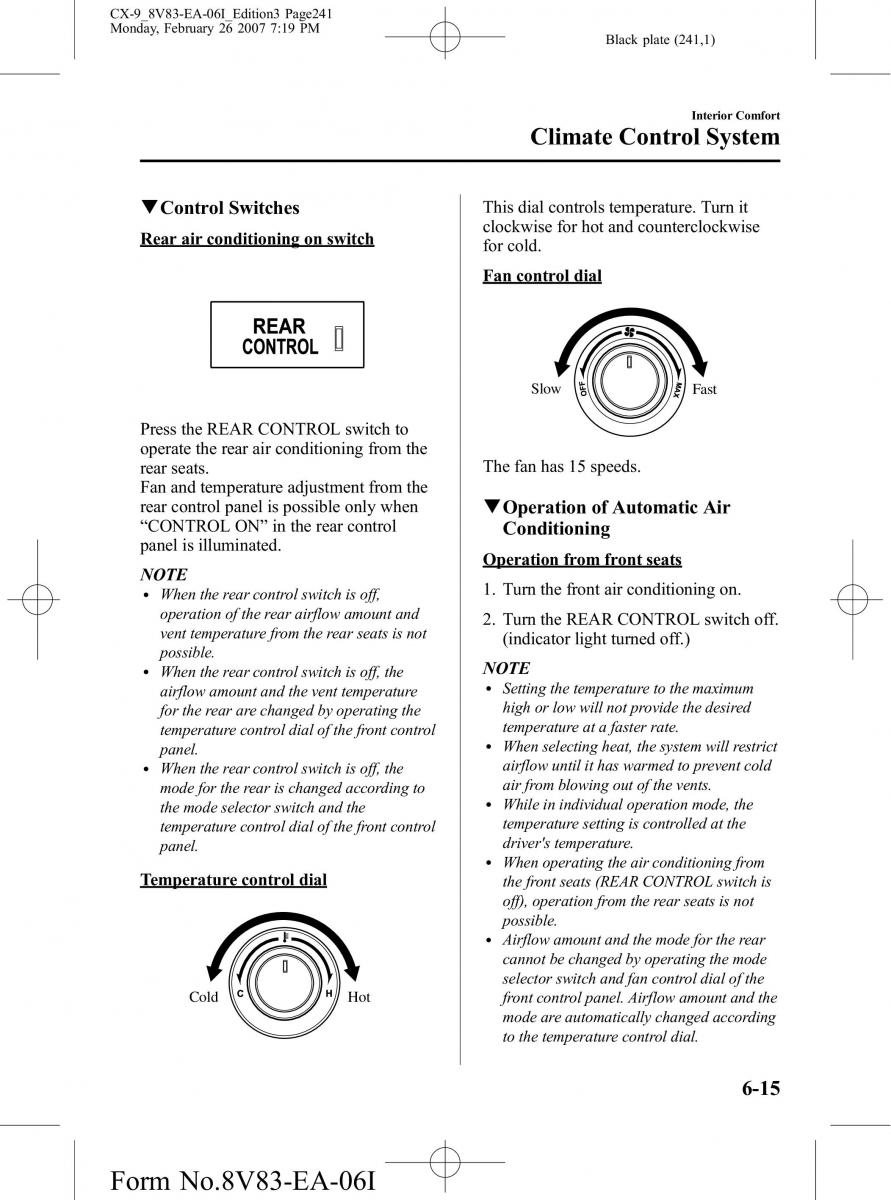

CX-9_8V83-EA-06I_Edition3 Page241
Monday, February 26 2007 7:19 PM
Black plate (241,1)
Interior Comfort
Climate Control System
qControlSwitches This dial controls temperature. Turn it
Rearairconditioning on switch clockwise for hot and counterclockwise
for cold.
Fancontrol dial
Slow Fast
Press the REAR CONTROLswitch to
operate the rear air conditioning from the
rear seats. Thefan has 15 speeds.
Fan and temperature adjustment from the
rear control panel is possible only when qOperationofAutomaticAir
“CONTROLON”intherearcontrol Conditioning
panel is illuminated. Operation from front seats
NOTE
l Whentherearcontrol switch is off, 1. Turn the front air conditioning on.
operation of the rear airflow amount and 2. Turn the REAR CONTROLswitch off.
vent temperature from the rear seats is not (indicator light turned off.)
possible.
l Whentherearcontrol switch is off, the NOTE
airflow amount and the vent temperature l Setting the temperature to the maximum
for the rear are changed by operating the high or low will not provide the desired
temperature control dial of the front control temperature at a faster rate.
panel. l Whenselecting heat, the system will restrict
l Whentherearcontrol switch is off, the airflow until it has warmed to prevent cold
modefor the rear is changed according to air from blowing out of the vents.
the mode selector switch and the l While in individual operation mode, the
temperature control dial of the front control temperature setting is controlled at the
panel. driver's temperature.
l Whenoperating the airconditioning from
Temperaturecontrol dial the front seats (REAR CONTROL switch is
off), operation from the rear seats is not
possible.
l Airflow amount and the mode for the rear
cannot be changed by operating the mode
selector switch and fan control dial of the
Cold Hot front control panel. Airflow amount and the
modeareautomatically changed according
to the temperature control dial.
6-15
Form No.8V83-EA-06I
