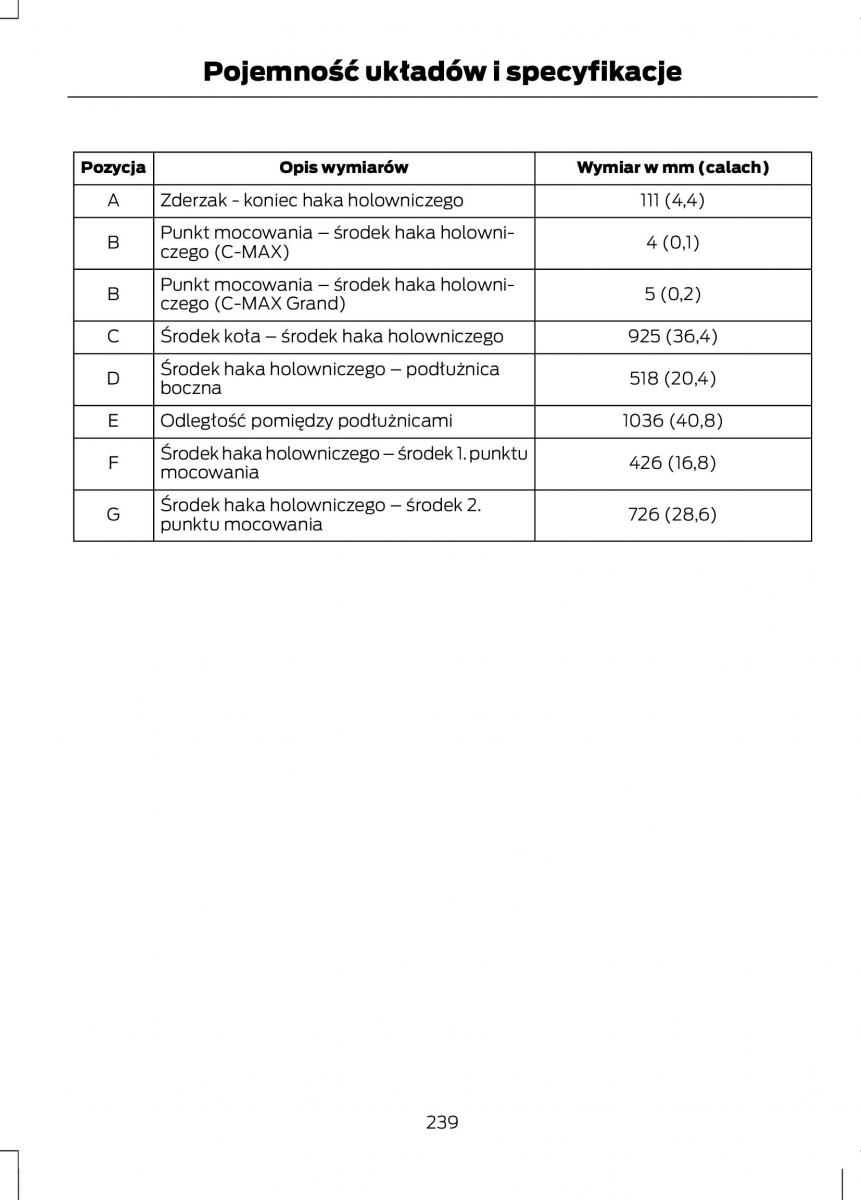

Pojemność układów i specyfikacje
Pozycja Opis wymiarów Wymiar w mm (calach)
A Zderzak - koniec haka holowniczego 111 (4,4)
B Punkt mocowania – środek haka holowni- 4 (0,1)
czego (C-MAX)
B Punkt mocowania – środek haka holowni- 5 (0,2)
czego (C-MAX Grand)
C Środek koła – środek haka holowniczego925 (36,4)
D Środek haka holowniczego – podłużnica 518 (20,4)
boczna
E Odległość pomiędzy podłużnicami 1036 (40,8)
F Środek haka holowniczego – środek 1. punktu426 (16,8)
mocowania
G Środek haka holowniczego – środek 2. 726 (28,6)
punktu mocowania
239
