owners manual Mazda CX-5

owners manual Mazda CX-5 - year of production: 2017 - Mazda CX 5 II 2 owners manual EN

Document: pdf (12.31 MB) 664 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2017:

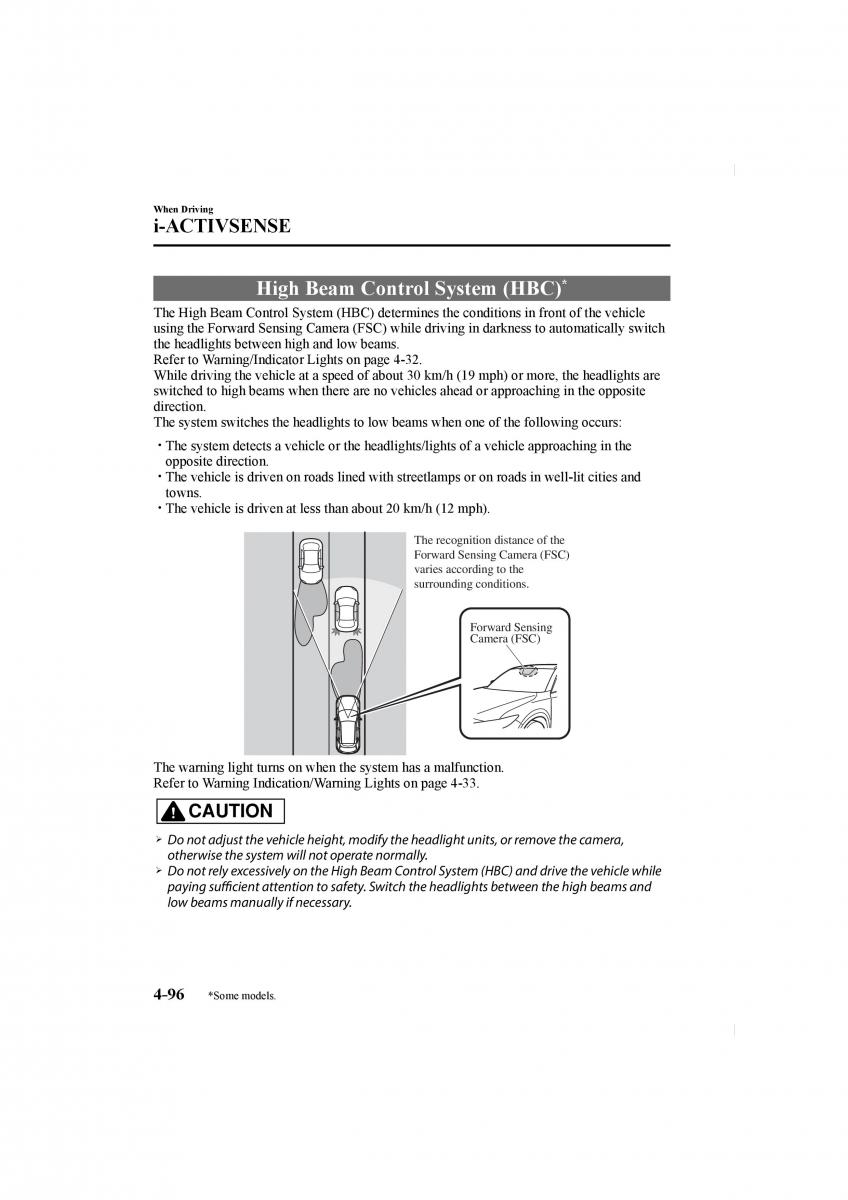

When Driving i-ACTIVSENSE * High Beam Control System (HBC) The High Beam Control System (HBC) determines the conditions in front of the vehicle using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch the headlights between high and low beams. Refer to Warning/Indicator Lights on page 4-32 . While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are switched to high beams when there are no vehicles ahead or approaching in the opposite direction. The system switches the headlights to low beams when one of the following occurs:  The system detects a vehicle or the headlights/lights of a vehicle approaching in the opposite direction.  The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and towns.  The vehicle is driven at less than about 20 km/h (12 mph). The recognition distance of the Forward Sensing Camera (FSC) varies according to the surrounding conditions. Forward Sensing Camera (FSC) The warning light turns on when the system has a malfunction. Refer to Warning Indication/Warning Lights on page 4-33 . CAUTION  Do not adjust the vehicle height, modify the headlight units, or remove the camera, otherwise the system will not operate normally.  Do not rely excessively on the High Beam Control System (HBC) and drive the vehicle while paying su cient attention to safety. Switch the headlights between the high beams and low beams manually if necessary. 4–96 *Some models. CX-5_8FN1-EA-16L_Edition1.indb 96 2016/12/12 10:06:04
