text version of content this owner's manual page from owners manual to the vehicle Mercedes SLK, year of production 1996 - 2004:

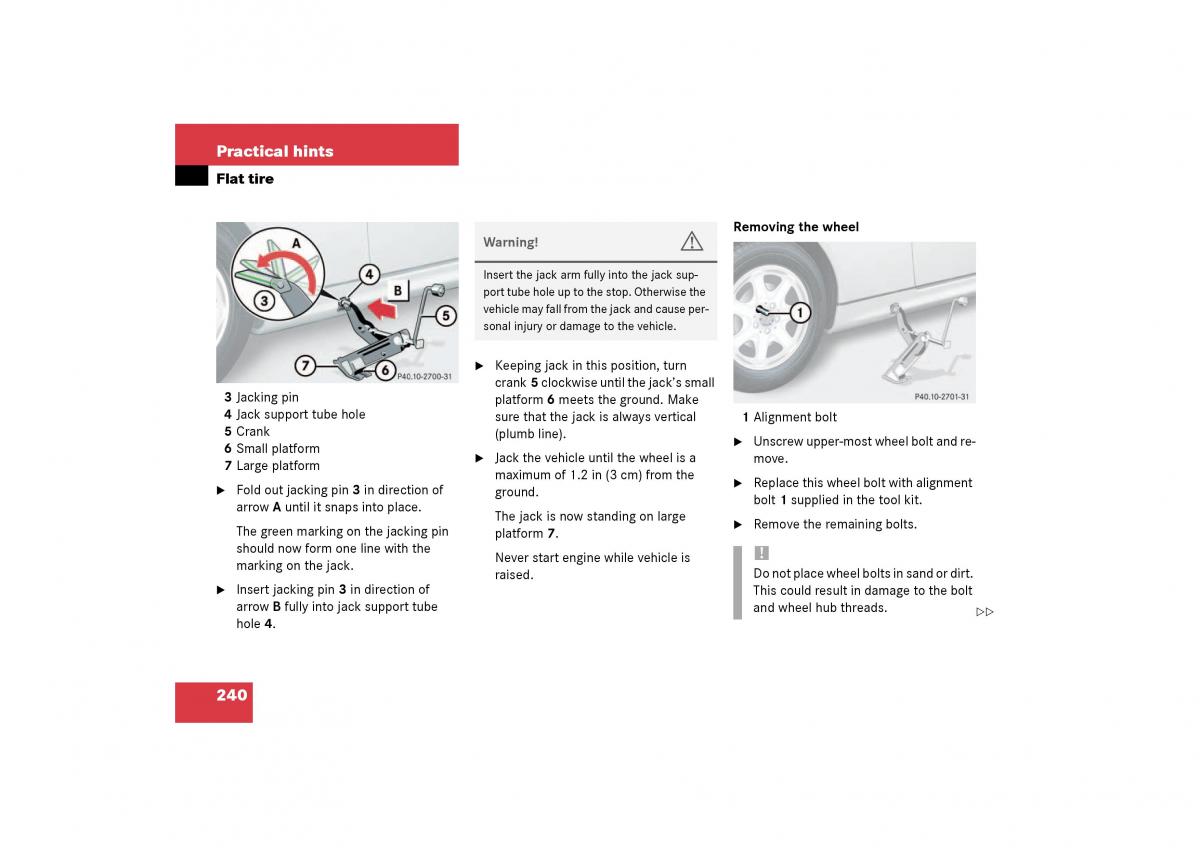

Practical hints Flat tire Warning! G Removing the wheel Insert the jack arm fully into the jack sup- port tube hole up to the stop. Otherwise the vehicle may fall from the jack and cause per- sonal injury or damage to the vehicle. Keeping jack in this position, turn crank 5 clockwise until the jack’s small 3 Jacking pin platform 6 meets the ground. Make 4 Jack support tube hole sure that the jack is always vertical 1 Alignment bolt 5 Crank (plumb line). Unscrew upper-most wheel bolt and re- 6 Small platform Jack the vehicle until the wheel is a move. 7 Large platform maximum of 1.2 in (3 cm) from the Fold out jacking pin 3 in direction of ground. Replace this wheel bolt with alignment arrow A until it snaps into place. bolt 1 supplied in the tool kit. The jack is now standing on large Remove the remaining bolts. The green marking on the jacking pin platform 7. should now form one line with the Never start engine while vehicle is ! marking on the jack. raised. Do not place wheel bolts in sand or dirt. Insert jacking pin3 in direction of This could result in damage to the bolt arrow B fully into jack support tube and wheel hub threads. hole 4. 240
