text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147 GTA, year of production 2000 - 2010:

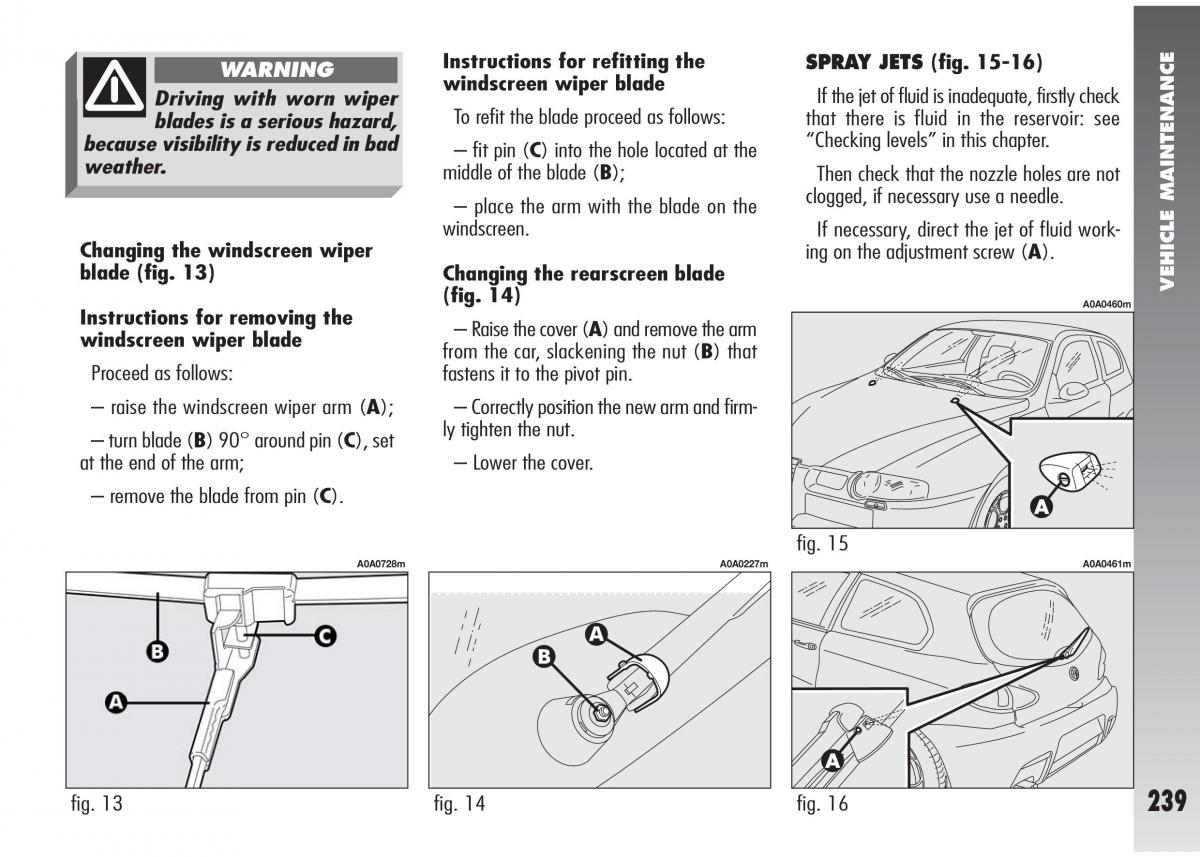

WARNING Instructions for refitting the SPRAY JETS (fig. 15-16) windscreen wiper blade If the jet of fluid is inadequate, firstly check Driving with worn wiper blades is a serious hazard, To refit the blade proceed as follows: that there is fluid in the reservoir: see because visibility is reduced in bad – fit pin (C) into the hole located at the “Checking levels” in this chapter. weather. middle of the blade (B); Then check that the nozzle holes are not clogged, if necessary use a needle. – place the arm with the blade on the windscreen. If necessary, direct the jet of fluid work- Changing the windscreen wiper ing on the adjustment screw (A). blade (fig. 13) Changing the rearscreen blade (fig. 14) VEHICLE MAINTENANCE Instructions for removing the A0A0460m windscreen wiper blade – Raise the cover (A) and remove the arm from the car, slackening the nut (B) that Proceed as follows: fastens it to the pivot pin. – raise the windscreen wiper arA); m ( – Correctly position the new arm and firm- – turn blade (B) 90° around pin (C), set ly tighten the nut. at the end of the arm; – Lower the cover. – remove the blade from pin ( C). fig. 15 A0A0728m A0A0227m A0A0461m fig. 13 fig. 14 fig. 16 239
