owners manual Subaru Forester

all ratings: 0 average rating: 5

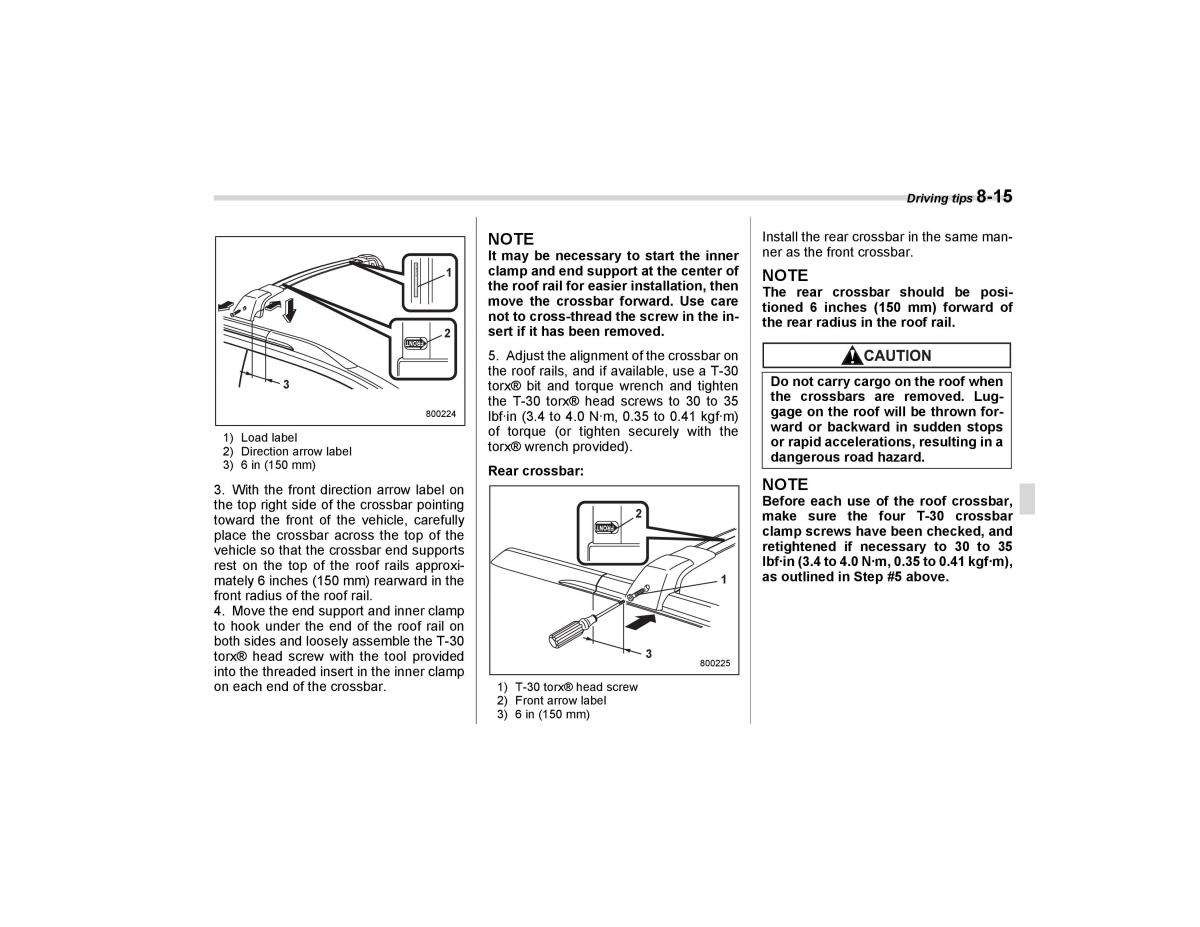

Driving tips 8-15 NOTE Install the rear crossbar in the same man- It may be necessary to start the inner ner as the front crossbar. M A X I M U M L O A clamp and end support at the center of D 1 1 0 0 L B NOTE S . E V E N L Y D I S T the roof rail for easier installation, then R I B U T E D move the crossbar forward. Use care The rear crossbar should be posi- not to cross-thread the screw in the in- tioned 6 inches (150 mm) forward of 2 sert if it has been removed. the rear radius in the roof rail. 5. Adjust the alignment of the crossbar on the roof rails, and if available, use a T-30 Do not carry cargo on the roof when 3 torxÆ bit and torque wrench and tighten the crossbars are removed. Lug- the T-30 torxÆ head screws to 30 to 35 gage on the roof will be thrown for- 800224 lbf∑in (3.4 to 4.0 N∑m, 0.35 to 0.41 kgf∑m) 1) Load label of torque (or tighten securely with the ward or backward in sudden stops 2) Direction arrow label torxÆ wrench provided). or rapid accelerations, resulting in a 3) 6 in (150 mm) Rear crossbar: dangerous road hazard. 3. With the front direction arrow label on NOTE the top right side of the crossbar pointing 2 Before each use of the roof crossbar, toward the front of the vehicle, carefully make sure the four T-30 crossbar place the crossbar across the top of the clamp screws have been checked, and vehicle so that the crossbar end supports retightened if necessary to 30 to 35 rest on the top of the roof rails approxi- lbf∑in (3.4 to 4.0 N∑m, 0.35 to 0.41 kgf∑m), mately 6 inches (150 mm) rearward in the 1 as outlined in Step #5 above. front radius of the roof rail. 4. Move the end support and inner clamp to hook under the end of the roof rail on both sides and loosely assemble the T-30 3 torxÆ head screw with the tool provided 800225 into the threaded insert in the inner clamp on each end of the crossbar. 1) T-30 torxÆ head screw 2) Front arrow label 3) 6 in (150 mm)
