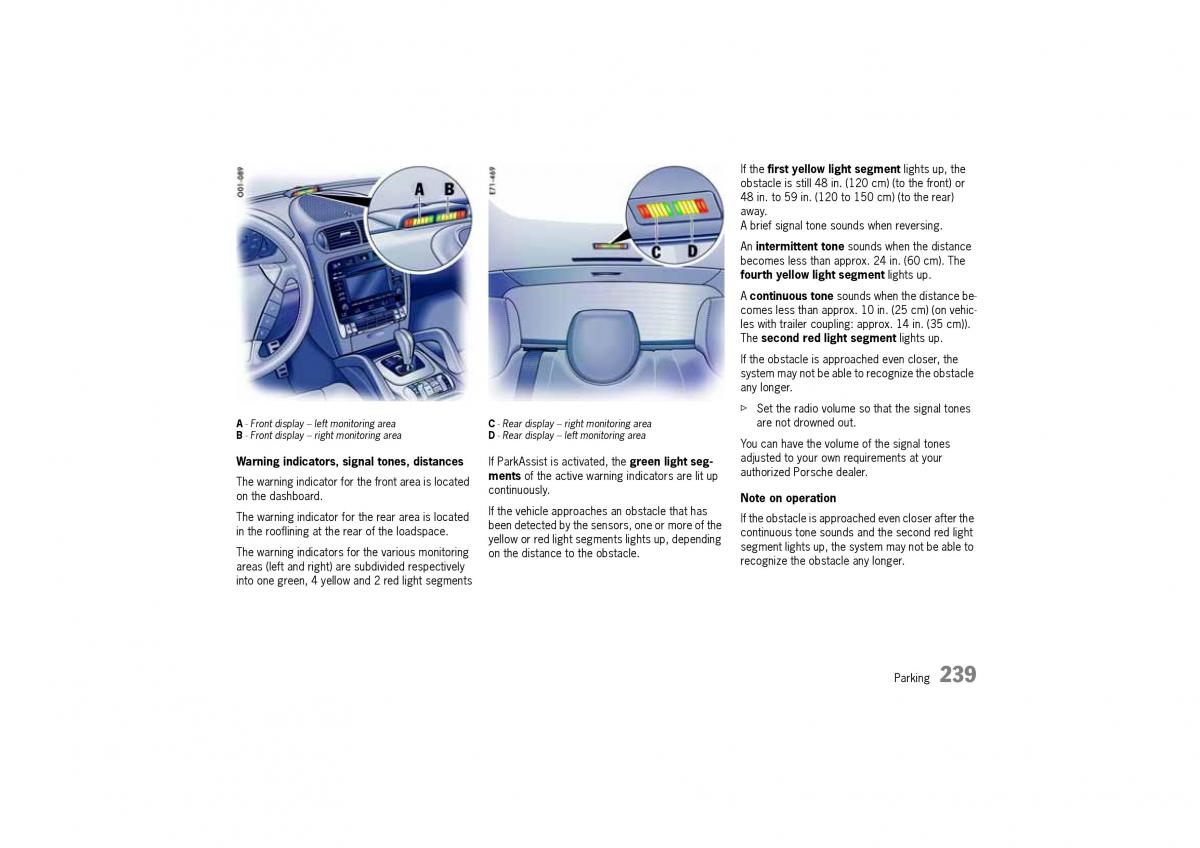

10_Cayenne_21_KW17.book Seite 239 Donnerstag, 9. April 2009 3:33 15
If the first yellow light segment lights up, the
obstacle is still 48 in. (120 cm) (to the front) or
48 in. to 59 in. (120 to 150 cm) (to the rear)
away.
A brief signal tone sounds when reversing.
An intermittent tone sounds when the distance
becomes less than approx. 24 in. (60 cm). The
fourth yellow light segment lights up.
A continuous tone sounds when the distance be-
comes less than approx. 10 in. (25 cm) (on vehic-
les with trailer coupling: approx. 14 in. (35 cm)).
The second red light segment lights up.
If the obstacle is approached even closer, the
system may not be able to recognize the obstacle
any longer.
f Set the radio volume so that the signal tones
A- Front display – left monitoring areaC- Rear display – right monitoring areaare not drowned out.
B- Front display – right monitoring areaD- Rear display – left monitoring areaYou can have the volume of the signal tones
Warning indicators, signal tones, distancesIf ParkAssist is activated, the green light seg-adjusted to your own requirements at your
The warning indicator for the front area is located ments of the active warning indicators are lit up authorized Porsche dealer.
on the dashboard. continuously. Note on operation
The warning indicator for the rear area is located If the vehicle approaches an obstacle that has If the obstacle is approached even closer after the
in the rooflining at the rear of the loadspace.been detected by the sensors, one or more of the continuous tone sounds and the second red light
yellow or red light segments lights up, depending segment lights up, the syst em may not be able to
The warning indicators fo r the various monitoring on the distance to the obstacle.recognize the obstacle any longer.
areas (left and right) are subdivided respectively
into one green, 4 yellow and 2 red light segments
Parking 239
