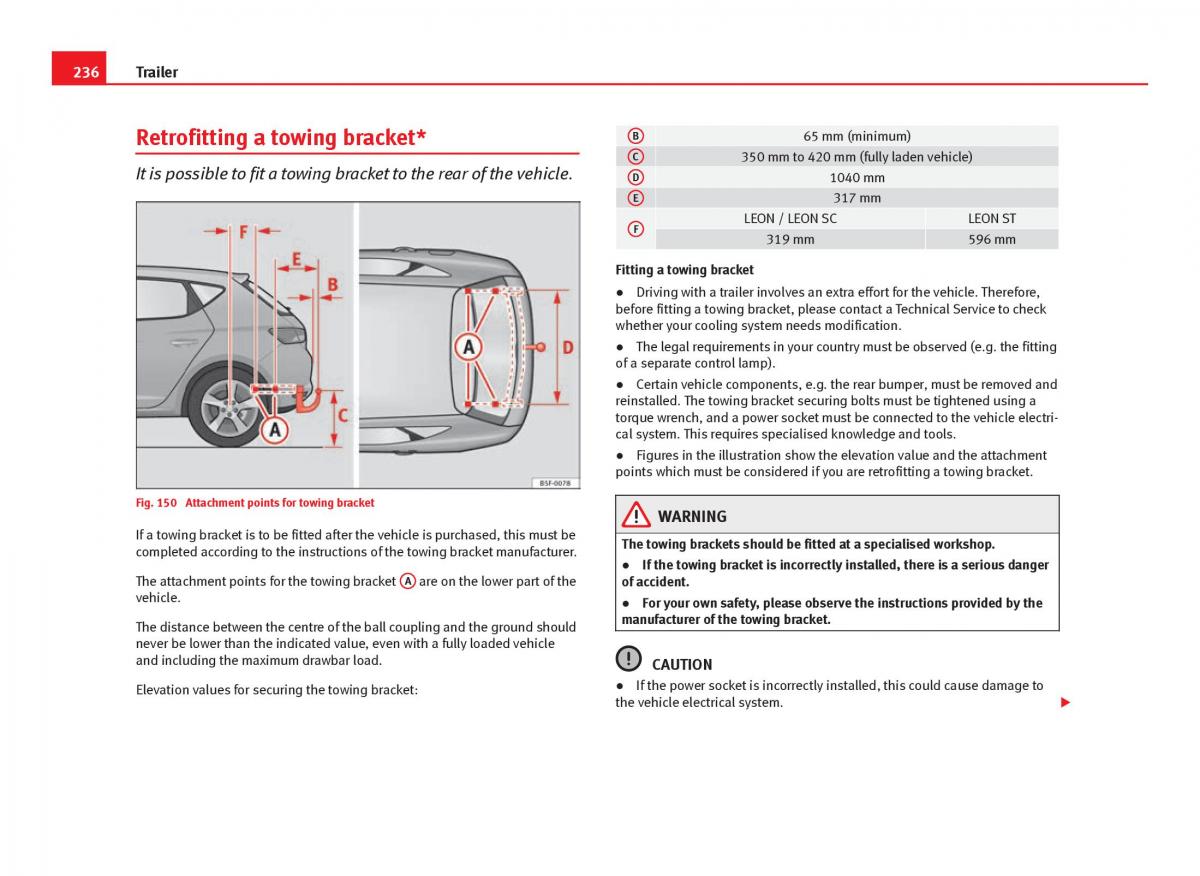

236 Trailer B 65 mm (minimum) Retrofitting a towing bracket* C 350 mm to 420 mm (fully laden vehicle) It is possible to fit a towing bracket to the rear of the vehicle. D 1040 mm E 317 mm LEON / LEON SC LEON ST F 319 mm 596 mm Fitting a towing bracket ● Driving with a trailer involves an extra effort for the vehicle. Therefore, before fitting a towing bracket, please contact a Technical Service to check whether your cooling system needs modification. ● The legal requirements in your country must be observed (e.g. the fitting of a separate control lamp). ● Certain vehicle components, e.g. the rear bumper, must be removed and reinstalled. The towing bracket securing bolts must be tightened using a torque wrench, and a power socket must be connected to the vehicle electri- cal system. This requires specialised knowledge and tools. ● Figures in the illustration show the elevation value and the attachment points which must be considered if you are retrofitting a towing bracket. Fig. 150 Attachment points for towing bracket WARNING If a towing bracket is to be fitted after the vehicle is purchased, this must be The towing brackets should be fitted at a specialised workshop. completed according to the instructions of the towing bracket manufacturer. ● If the towing bracket is incorrectly installed, there is a serious danger The attachment points for the towing bracket A are on the lower part of theof accident. vehicle. ● For your own safety, please observe the instructions provided by the manufacturer of the towing bracket. The distance between the centre of the ball coupling and the ground should never be lower than the indicated value, even with a fully loaded vehicle and including the maximum drawbar load. CAUTION ● If the power socket is incorrectly installed, this could cause damage to Elevation values for securing the towing bracket: the vehicle electrical system. 
