text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

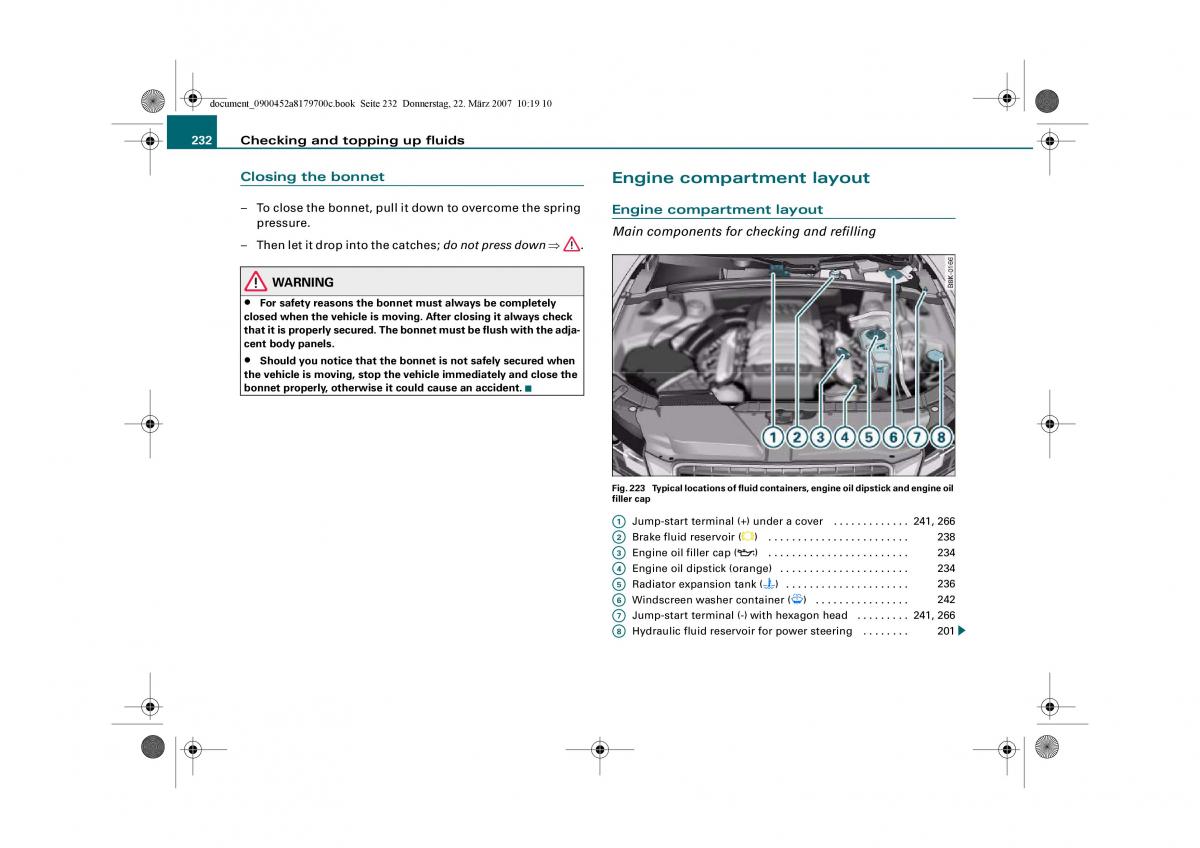

document_0900452a8179700c.book Seite 232 Donnerstag, 22. März 2007 10:19 10 232 Checking and topping up fluids Closing the bonnet Engine compartment layout – To close the bonnet, pull it down to overcome the spring Engine compartment layout pressure. Main components for checking and refilling – Then let it drop into the catches; do not press down ⇒. WARNING • For safety reasons the bonnet must always be completely closed when the vehicle is moving. After closing it always check that it is properly secured. The bonnet must be flush with the adja- cent body panels. • Should you notice that the bonnet is not safely secured when the vehicle is moving, stop the vehicle immediately and close the bonnet properly, otherwise it could cause an accident. Fig. 223 Typical locations of fluid containers, engine oil dipstick and engine oil filler cap 1 Jump-start terminal (+) under a cover . . . . . . . . . . . . . 241, 266 A 2 Brake fluid reservoir () . . . . . . . . . . . . . . . . . . . . . . . . 238 A 3 234 AEngine oil filler cap () . . . . . . . . . . . . . . . . . . . . . . . . 4 Engine oil dipstick (orange) . . . . . . . . . . . . . . . . . . . . . . 234 A 5 Radiator expansion tank () . . . . . . . . . . . . . . . . . . . . . 236 A 6 242 AWindscreen washer container () . . . . . . . . . . . . . . . . 7 Jump-start terminal (-) with hexagon head . . . . . . . . . 241, 266 A 8 Hydraulic fluid reservoir for power steering . . . . . . . . 201 A
