from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:

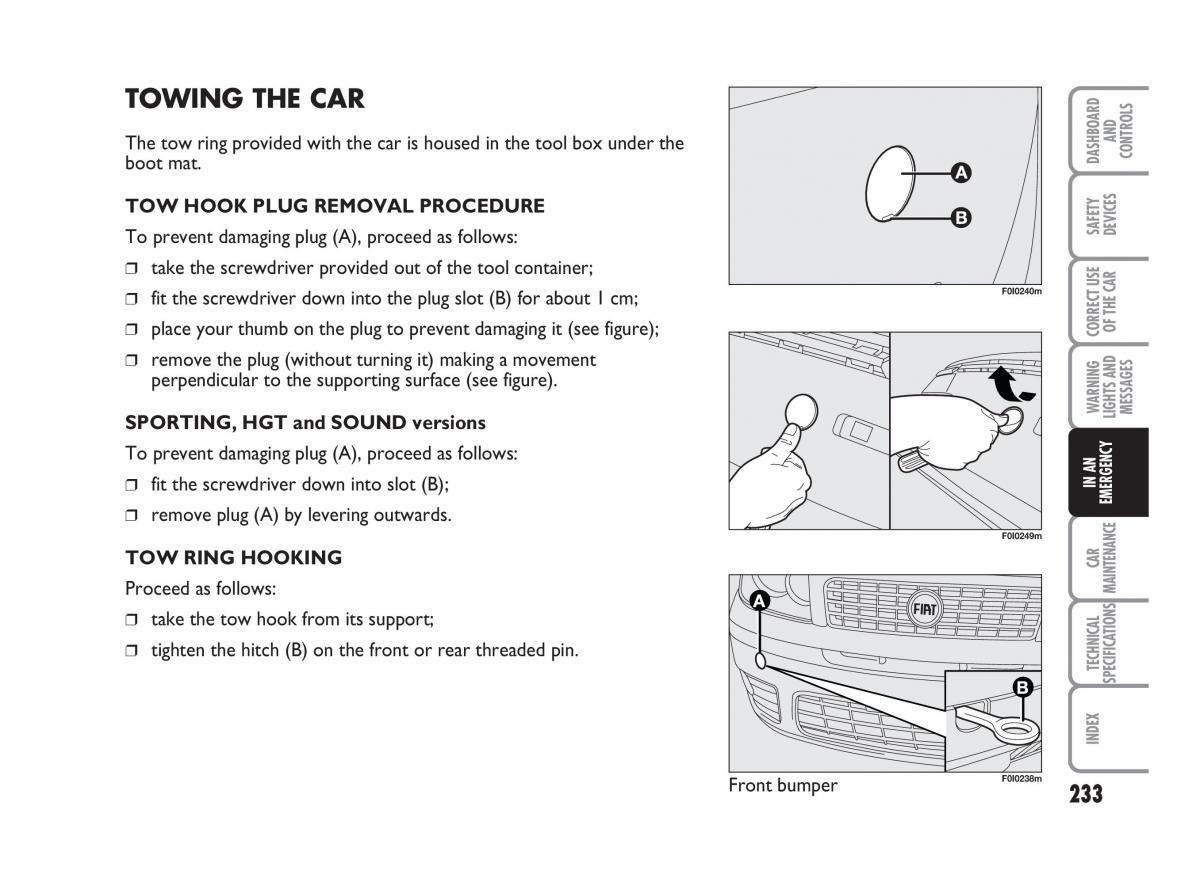

TOWING THE CAR
The tow ring provided with the car is housed in the tool box under the AND
boot mat. DASHBOARDCONTROLS
TOW HOOK PLUG REMOVAL PROCEDURE
To prevent damaging plug (A), proceed as follows: SAFETYDEVICES
❒ take the screwdriver provided out of the tool container;
❒ fit the screwdriver down into the plug slot (B) for about 1 cm; F0I0240m
❒ place your thumb on the plug to prevent damaging it (see figure); CORRECT USE OF THE CAR
❒ remove the plug (without turning it) making a movement
perpendicular to the supporting surface (see figure).
ARNING
W LIGHTS ANDMESSAGES
SPORTING, HGT and SOUND versions
To prevent damaging plug (A), proceed as follows:
❒ fit the screwdriver down into slot (B); IN AN
EMERGENCY
❒ remove plug (A) by levering outwards.
F0I0249m
TOW RING HOOKING CAR
Proceed as follows: MAINTENANCE
❒ take the tow hook from its support; TIONS
❒ tighten the hitch (B) on the front or rear threaded pin. TECHNICAL
SPECIFICA
INDEX
Front bumper F0I0238m
233
