from owners manual to the vehicle Renault Trafic, year of production 2014:

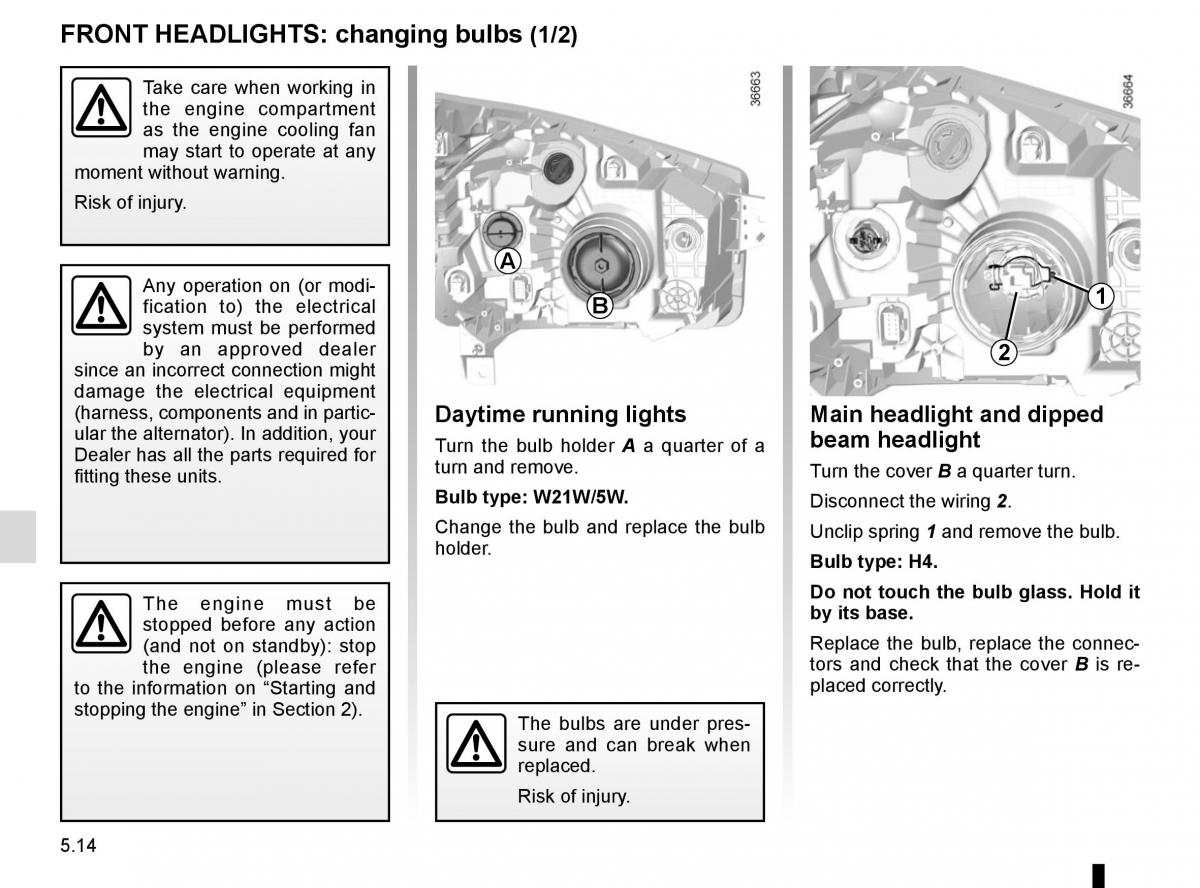

FRONT HEADLIGHTS: changing bulbs (1/2)
Take care when working in
the engine compartment
as the engine cooling fan
may start to operate at any
moment without warning.
Risk of injury.
A
Any operation on (or modi- 1
fication to) the electrical
B
system must be performed
by an approved dealer 2
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-Daytime running lightsMain headlight and dipped
ular the alternator). In addition, your beam headlight
Turn the bulb holder A a quarter of a
Dealer has all the parts required for
fitting these units. turn and remove. Turn the cover B a quarter turn.
Bulb type: W21W/5W. Disconnect the wiring 2.
Change the bulb and replace the bulb
holder. Unclip spring 1 and remove the bulb.
Bulb type: H4.
Do not touch the bulb glass. Hold it
The engine must be
stopped before any action by its base.
(and not on standby): stop Replace the bulb, replace the connec-
the engine (please refer tors and check that the cover B is re-
to the information on “Starting and placed correctly.
stopping the engine” in Section 2).The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
5.14
