text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2003 - 2009:

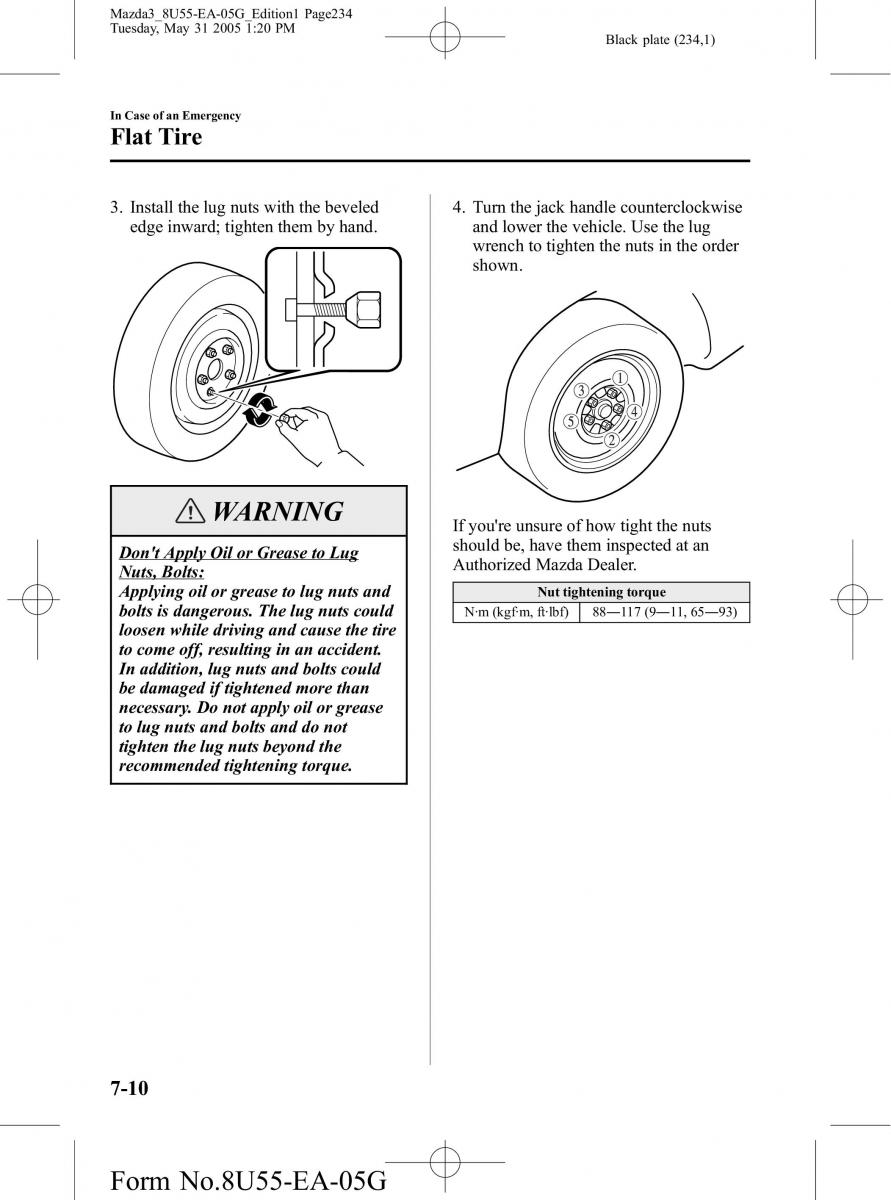

Mazda3_8U55-EA-05G_Edition1 Page234 Tuesday, May 31 2005 1:20 PM Black plate (234,1) In Case of an Emergency Flat Tire 3. Install the lug nuts with the beveled4. Turn the jack handle counterclockwise edge inward; tighten them by hand. and lower the vehicle. Use the lug wrench to tighten the nuts in the order shown. WARNING If you're unsure of how tight the nuts Don't Apply Oil or Grease to Lug should be, have them inspected at an Nuts, Bolts: Authorized Mazda Dealer. Applying oil or grease to lug nuts and Nuttightening torque bolts is dangerous. The lug nuts couldN·m(kgf·m,ft·lbf)88―117 (9―11, 65―93) loosen while driving and cause the tire to come off, resulting in an accident. In addition, lug nuts and bolts could be damaged if tightened more than necessary. Do not apply oil or grease to lug nuts and bolts and do not tighten the lug nuts beyond the recommendedtightening torque. 7-10 Form No.8U55-EA-05G
