text version of content this owner's manual page
from owners manual to the vehicle Mazda CX-9, year of production 2007 - 2015:

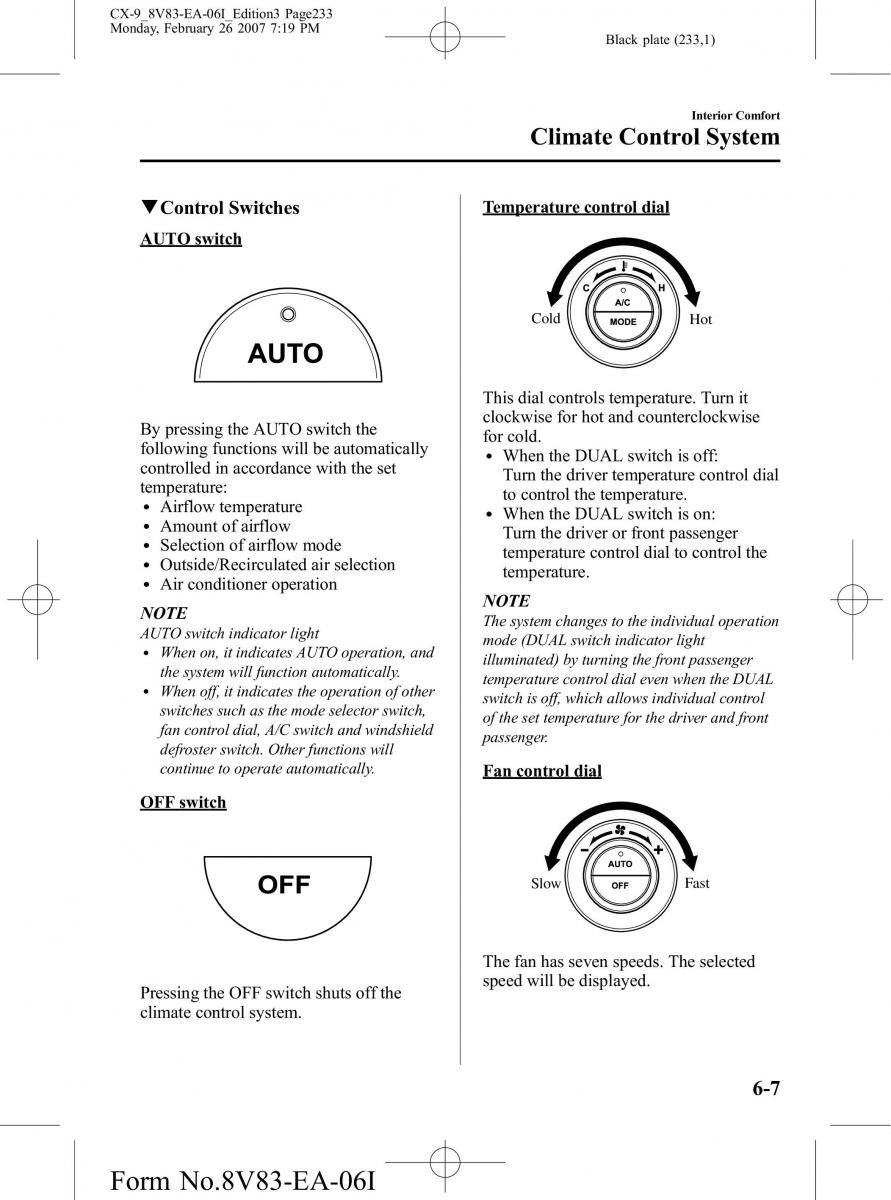

CX-9_8V83-EA-06I_Edition3 Page233
Monday, February 26 2007 7:19 PM
Black plate (233,1)
Interior Comfort
Climate Control System
qControlSwitches Temperaturecontrol dial
AUTOswitch
Cold Hot
This dial controls temperature. Turn it
Bypressing the AUTO switch the clockwise for hot and counterclockwise
following functions will be automatically for cold.
controlled in accordance with the set l WhentheDUALswitchisoff:
temperature: Turn the driver temperature control dial
to control the temperature.
l Airflow temperature l WhentheDUALswitchison:
l Amountofairflow Turn the driver or front passenger
l Selection of airflow mode temperature control dial to control the
l Outside/Recirculated air selection temperature.
l Air conditioner operation
NOTE NOTE
AUTOswitchindicator light The system changes to the individual operation
mode(DUALswitchindicator light
l Whenon,itindicates AUTOoperation, and illuminated) by turning the front passenger
the system will function automatically. temperature control dial even when the DUAL
l Whenoff, it indicates the operation of other switch is off, which allows individual control
switches such as the mode selector switch, of the set temperature for the driver and front
fan control dial, A/C switch and windshield passenger.
defroster switch. Other functions will
continue to operate automatically. Fancontrol dial
OFFswitch
Slow Fast
Thefan has seven speeds. The selected
Pressing the OFF switch shuts off the speed will be displayed.
climate control system.
6-7
Form No.8V83-EA-06I
