text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2009 - 2013:

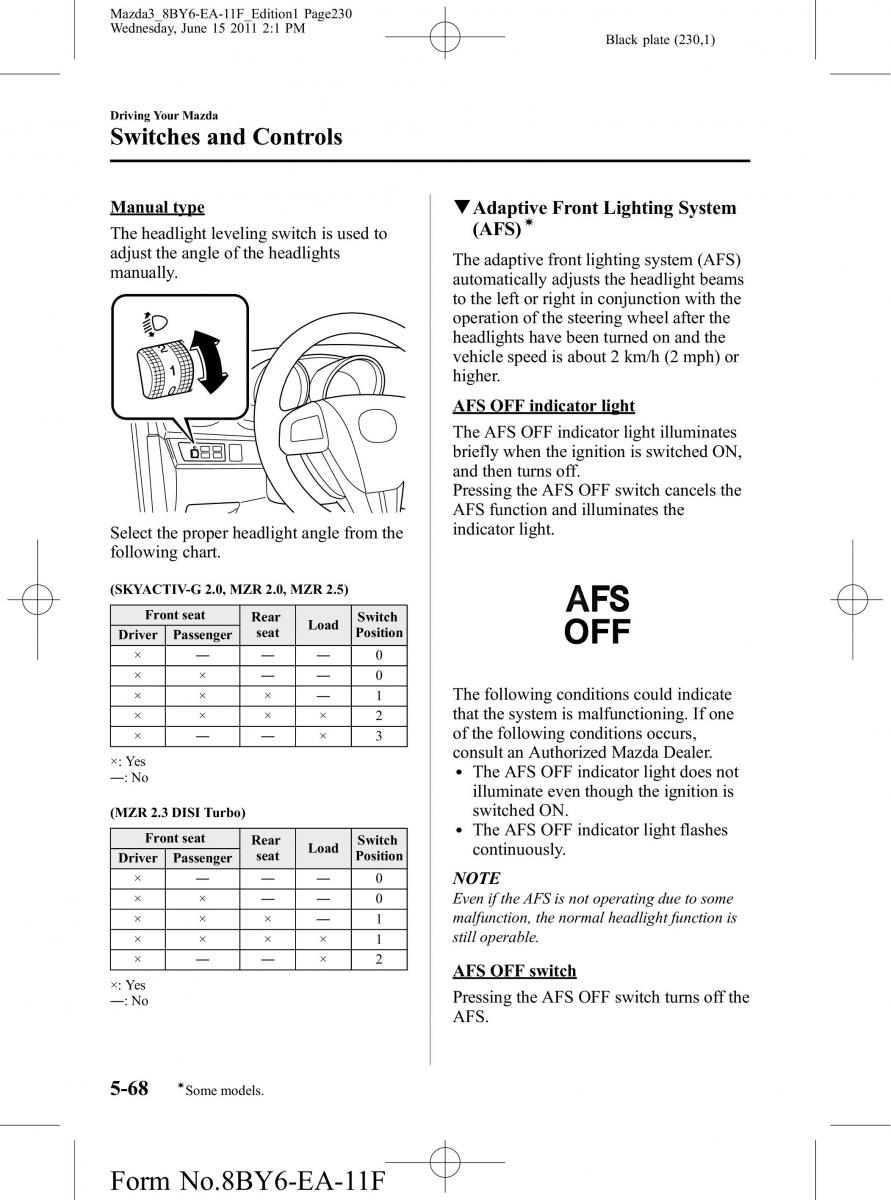

Mazda3_8BY6-EA-11F_Edition1 Page230 Wednesday, June 15 2011 2:1 PM Black plate (230,1) Driving Your Mazda Switches and Controls Manualtype qAdaptiveFrontLightingSystem Theheadlight leveling switch is used to (AFS)í adjust the angle of the headlights Theadaptive front lighting system (AFS) manually. automatically adjusts the headlight beams to the left or right in conjunction with the operation of the steering wheel after the headlights have been turned on and the vehicle speed is about 2 km/h (2 mph) or higher. AFSOFFindicatorlight TheAFSOFFindicatorlightilluminates briefly when the ignition is switched ON, and then turns off. Pressing the AFS OFF switch cancels the AFSfunction and illuminates the Select the proper headlight angle from the indicator light. following chart. (SKYACTIV-G2.0,MZR2.0,MZR2.5) Front seat Rear Load Switch Driver Passenger seat Position × ―――0 ××――0 ××―×1 Thefollowingconditionscouldindicate that the system is malfunctioning. If one ××××2 of the following conditions occurs, × ――×3 ×: Yes consult an Authorized Mazda Dealer. ―:No l The AFS OFFindicator light does not illuminate even though the ignition is (MZR2.3DISITurbo) switched ON. Front seat Rear Switch l The AFS OFFindicator light flashes Driver Passenger seat Load Position continuously. × ―――0 NOTE ××――0 EveniftheAFSisnotoperatingduetosome ××―×1 malfunction,thenormalheadlightfunctionis still operable. ××××1 × ――×2 AFSOFFswitch ×: Yes Pressing the AFS OFF switch turns off the ―:No AFS. í 5-68 Somemodels. Form No.8BY6-EA-11F
