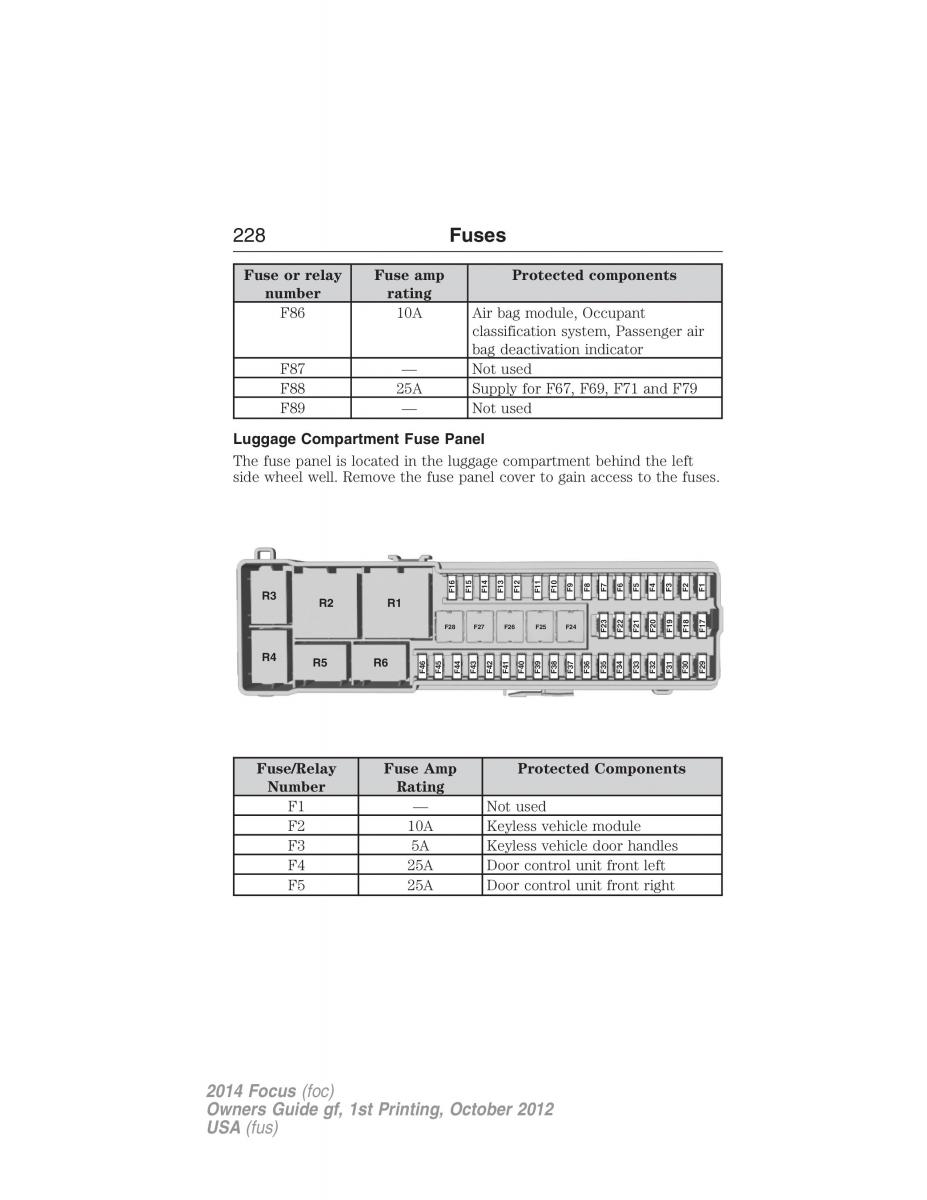

228 Fuses
Fuse or relay Fuse amp Protected components
number rating
F86 10A Air bag module, Occupant
classification system, Passenger air
bag deactivation indicator
F87 — Not used
F88 25A Supply for F67, F69, F71 and F79
F89 — Not used
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage compartment behind the left
side wheel well. Remove the fuse panel cover to gain access to the fuses.
R3 F16F15F14F13F12F11F10F9F8F7F6 F5 F4F3 F2F1
R2 R1
F28 F27 F26 F25 F24 F23F22F21F20F19F18F17
R4 R5 R6
F46F45F44F43F42F41F40F39F38F37F36F35F34F33F32F31F30F29
Fuse/Relay Fuse Amp Protected Components
Number Rating
F1 — Not used
F2 10A Keyless vehicle module
F3 5A Keyless vehicle door handles
F4 25A Door control unit front left
F5 25A Door control unit front right
2014 Focus (foc)
Owners Guide gf, 1st Printing, October 2012
USA(fus)
