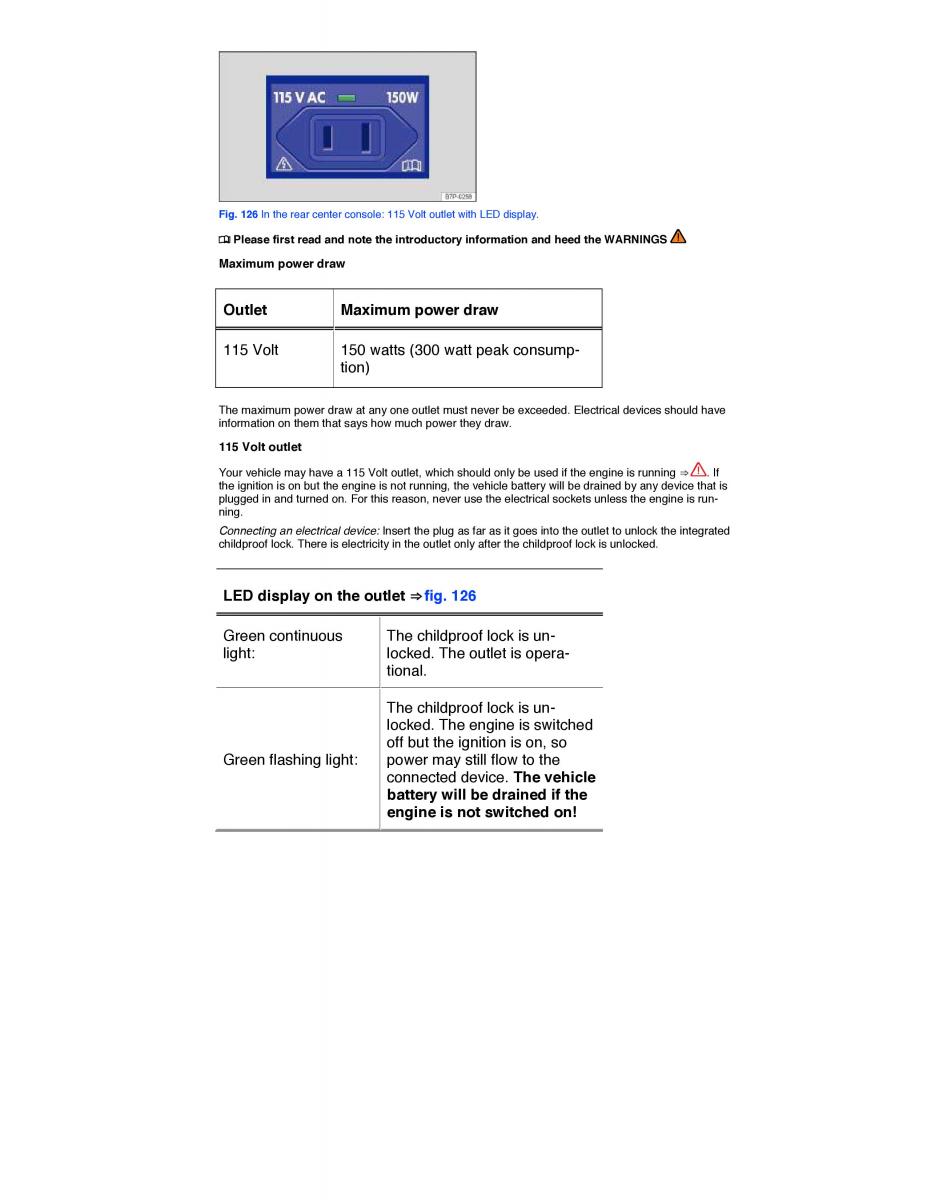

Fig. 126 In the rear center console: 115 Volt outlet with LED display. ¤ Please first read and note the introductory information and heed the WARNINGS Maximum power draw Outlet Maximum power draw 115 Volt 150 watts (300 watt peak consump- tion) The maximum power draw at any one outlet must never be exceeded. Electrical devices should have information on them that says how much power they draw. 115 Volt outlet Your vehicle may have a 115 Volt outlet, which should only be used if the engine is running ⇒ . If the ignition is on but the engine is not running, the vehicle battery will be drained by any device that is plugged in and turned on. For this reason, never use the electrical sockets unless the engine is run- ning. Connecting an electrical device: Insert the plug as far as it goes into the outlet to unlock the integrated childproof lock. There is electricity in the outlet only after the childproof lock is unlocked. LED display on the outlet ⇒ fig. 126 Green continuous The childproof lock is un- light: locked. The outlet is opera- tional. The childproof lock is un- locked. The engine is switched off but the ignition is on, so Green flashing light: power may still flow to the connected device. The vehicle battery will be drained if the engine is not switched on!
