owners manual Toyota Auris Hybrid

owners manual Toyota Auris Hybrid - year of production: 2007, 2008, 2009, 2010, 2011, 2012 - Toyota Auris Hybrid I 1 owners manual EN

Document: pdf (27.62 MB) 524 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

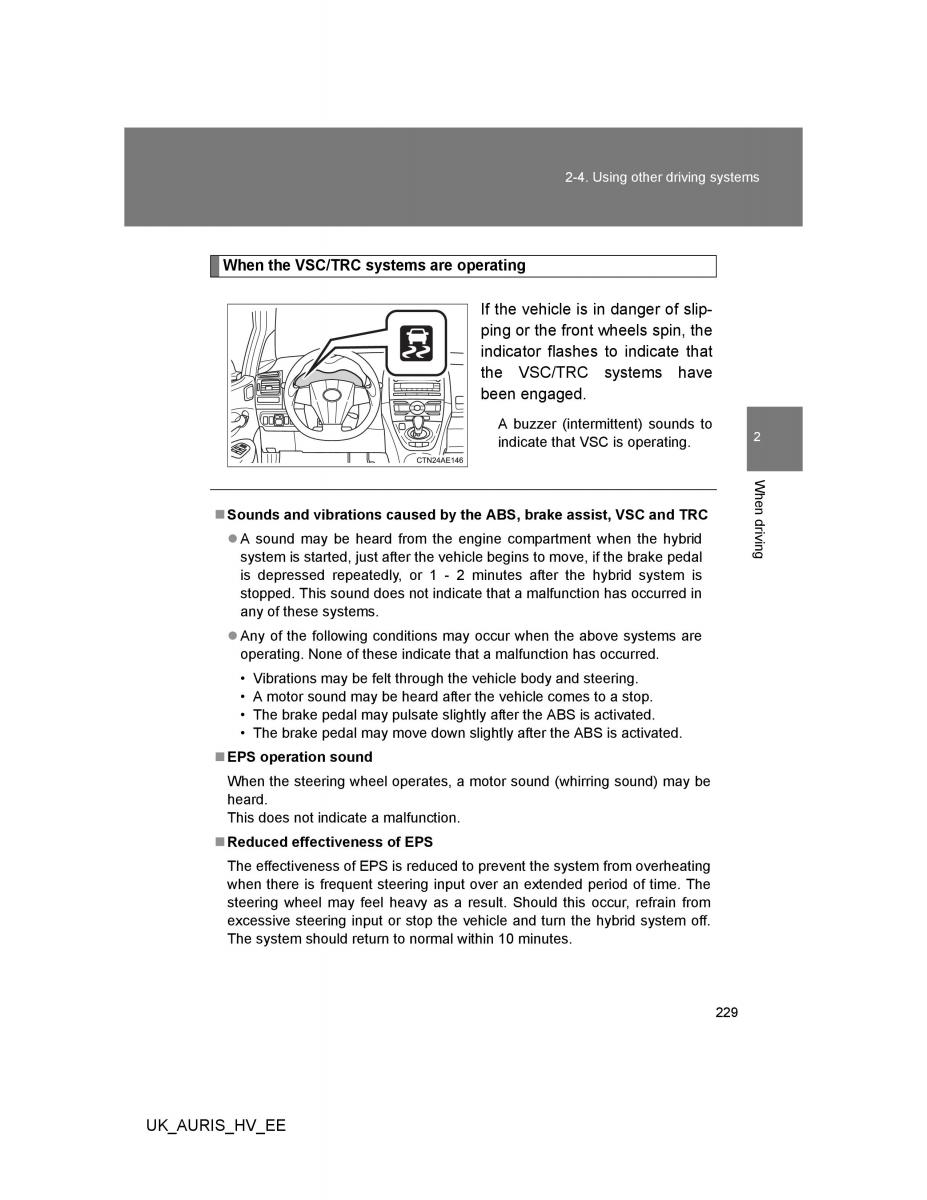

2-4. Using other driving systems When the VSC/TRC systems are operating If the vehicle is in danger of slip- ping or the front wheels spin, the indicator flashes to indicate that the VSC/TRC systems have been engaged. A buzzer (intermittent) sounds to2 indicate that VSC is operating. W Sounds and vibrations caused by the ABS, brake assist, VSC and TRChen drivi n A sound may be heard from the engine compartment when the hybrid system is started, just after the vehicle begins to move, if the brake pedalg is depressed repeatedly, or 1 - 2 minutes after the hybrid system is stopped. This sound does not indicate that a malfunction has occurred in any of these systems. Any of the following conditions may occur when the above systems are operating. None of these indicate that a malfunction has occurred. Vibrations may be felt through the vehicle body and steering. A motor sound may be heard after the vehicle comes to a stop. The brake pedal may pulsate slightly after the ABS is activated. The brake pedal may move down slightly after the ABS is activated. EPS operation sound When the steering wheel operates, a motor sound (whirring sound) may be heard. This does not indicate a malfunction. Reduced effectiveness of EPS The effectiveness of EPS is reduced to prevent the system from overheating when there is frequent steering input over an extended period of time. The steering wheel may feel heavy as a result. Should this occur, refrain from excessive steering input or stop the vehicle and turn the hybrid system off. The system should return to normal within 10 minutes. 229 UK_AURIS_HV_EE
